OBDII Logger

Introducing our Communication Logging Device, the ultimate tool for developers of software, hardware, and beyond. This cutting-edge device is your key to unlocking unparalleled insights into communication protocols, facilitating seamless development and optimization processes. Whether you're crafting groundbreaking software solutions or pioneering innovative hardware products, our logging device empowers you to capture and analyze communication data with precision and ease. Elevate your development workflow with this indispensable tool, designed to fuel creativity, innovation, and success.

OBD Logger device have:

 3 x CAN Channel   pins: 6/14, 3/11, 3/8

 4 x K-line Channels pins: 1,7,12,15

 USB-C port

 TFT Display



 Supported CAN Speed: 100,125,200,250,500,800,1000

 Supports 11bit and 29bit (extended) CAN

 Supported K-line Speed: 4800,9600,10400,19200,38400,57600,115200,250000


OBD Logger have 2 working modes:

 USB interface

 WiFi Interface

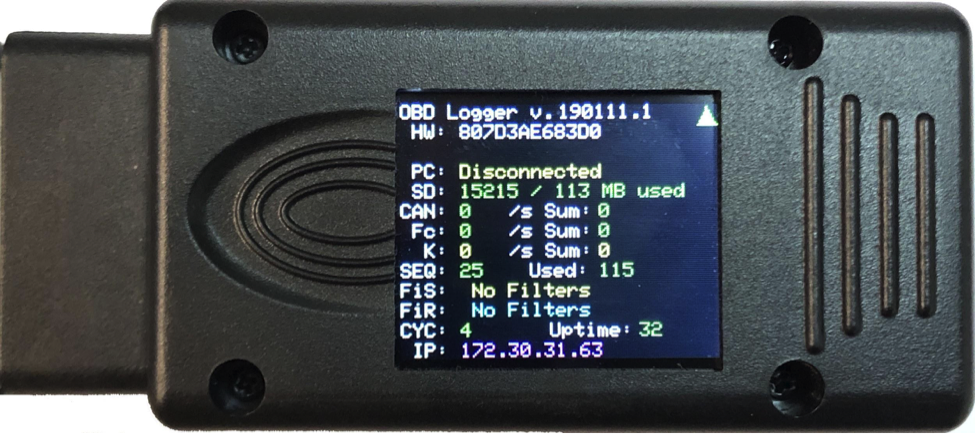

Explanation of the display:



HW:       Hardware Serial Number

PC:         Connection Status [Disconnected, Connected USB, Connected WiFi, Connected to SERVER]

CAN:      Can message count before filtering [messages per second/Sum: Total message count]

Fc:          Filtered CAN. CAN message count after active filters

K:           K-line information [Bytes per second/ Total bytes]

SEQ:      Current sequence of file used for storing logs.

Used:     Usage counter. How many times the device have been powered on

FiS:        CAN Filter Single. Will show currently used ID for filtering

FiR:        CAN Filter Range. Will show the range definition used for filtering can messages

CYC:      Only for development

Uptime:  Seconds passed after device boot

IP:           IP address of device.

Green triangle: Device online and update is up to date.

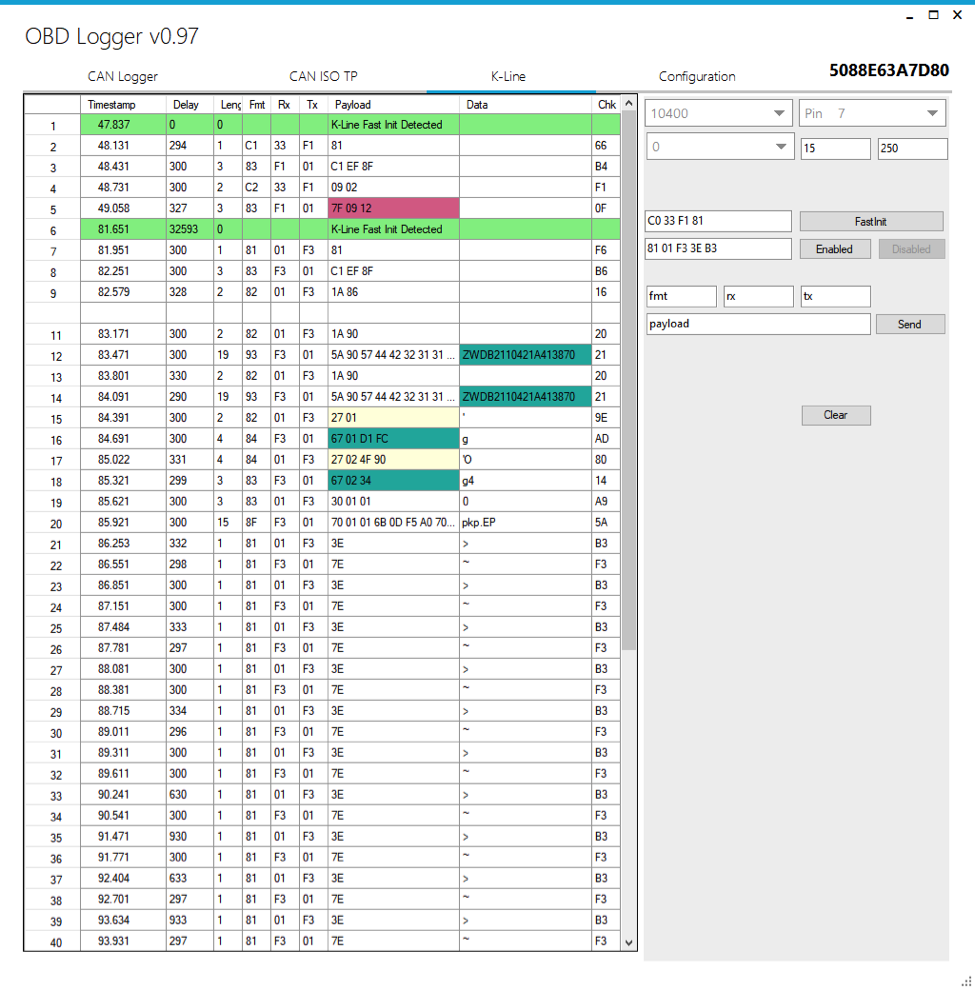

Logging on CAN and K-line



Price -> 430 euro

All prices are exclusive of VAT and delivery charges
