SKGT - Seed -> Key Generator tool

The Mercedes Benz Seed-Key Generator Tool (MB SKGT) was designed to unlock MB controllers in different levels to get access to critical diagnostic procedures and functions. The unlocking challenges are kind of a question/answer game between ECU and diagnostic equipment. To give the correct secret answer to a question of the ECU you need the MB SKG Tool, which is able to calculate the correct answer. This software is specifically designed to work with Vediamo and Monaco.

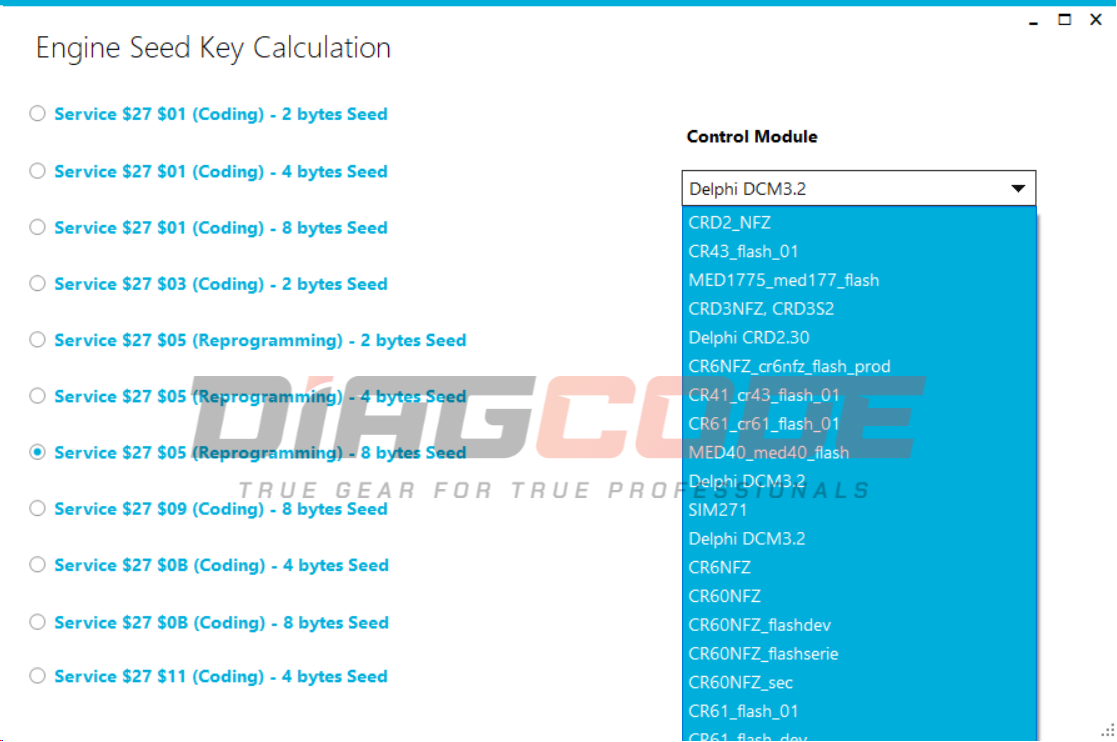

There are several access/unlock levels for any controller in vehicles:

Unlock level 01 – makes security access to level one

Functions/routines: request seed ECU unlock (27 01)/send key ECU unlock (27 02)

This is used in most ecu’s till Emission EU6 for general ECU Unlock for doing Variant coding, Adaption…

Unlock level 03 – makes security access to level three

Functions/routines: request seed ECU unlock lev3 (27 03)/send key ECU unlock lev3 (27 04)

Functions/routines: request seed adjustment (27 03)/ send key adjustment (27 04)

This is used in most ECU’s to unlock adaption values like IMA/ISA, DPF/SCR/AGR /MAF values…

Unlock level 05 – makes security access to level five

Functions/routines: request seed reprogramming (27 05)/send key reprogramming (27 06)

This is used to unlock the ECU for reflash/reprogramming it - attention – before ECU’s can give a seed for this functions

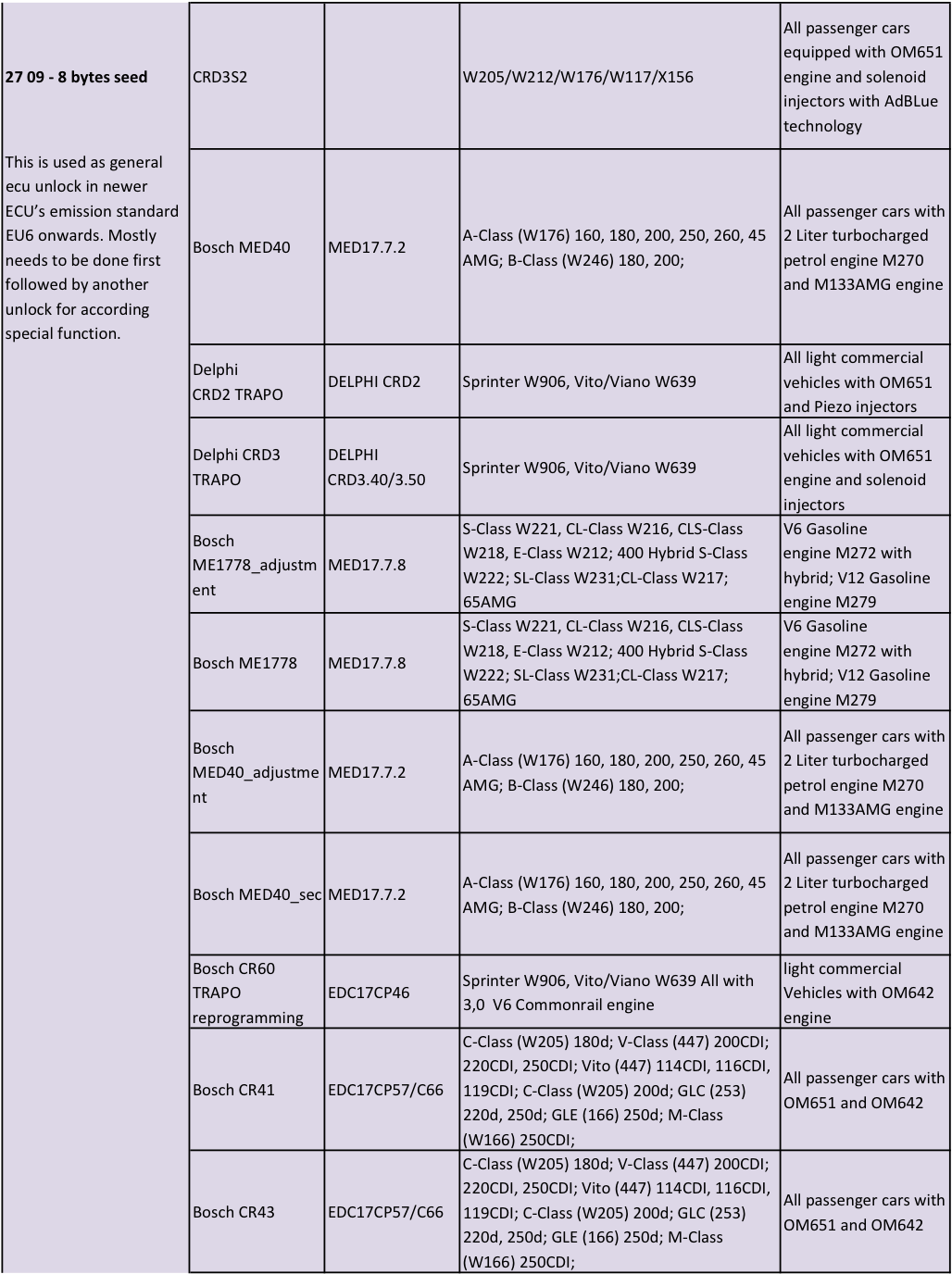

Unlock level 9A – makes security access to level 9

Functions/routines: request Seed 9A (27 09)/send key 9A (27 0A)

Functions/routines: request seed Unlock (27 09)/ send key unlock (27 0A)

This is used as general Ecu unlock in newer ECU’s emission standard EU6 onwards. Mostly needs to be done first followed by another unlock for according special function.

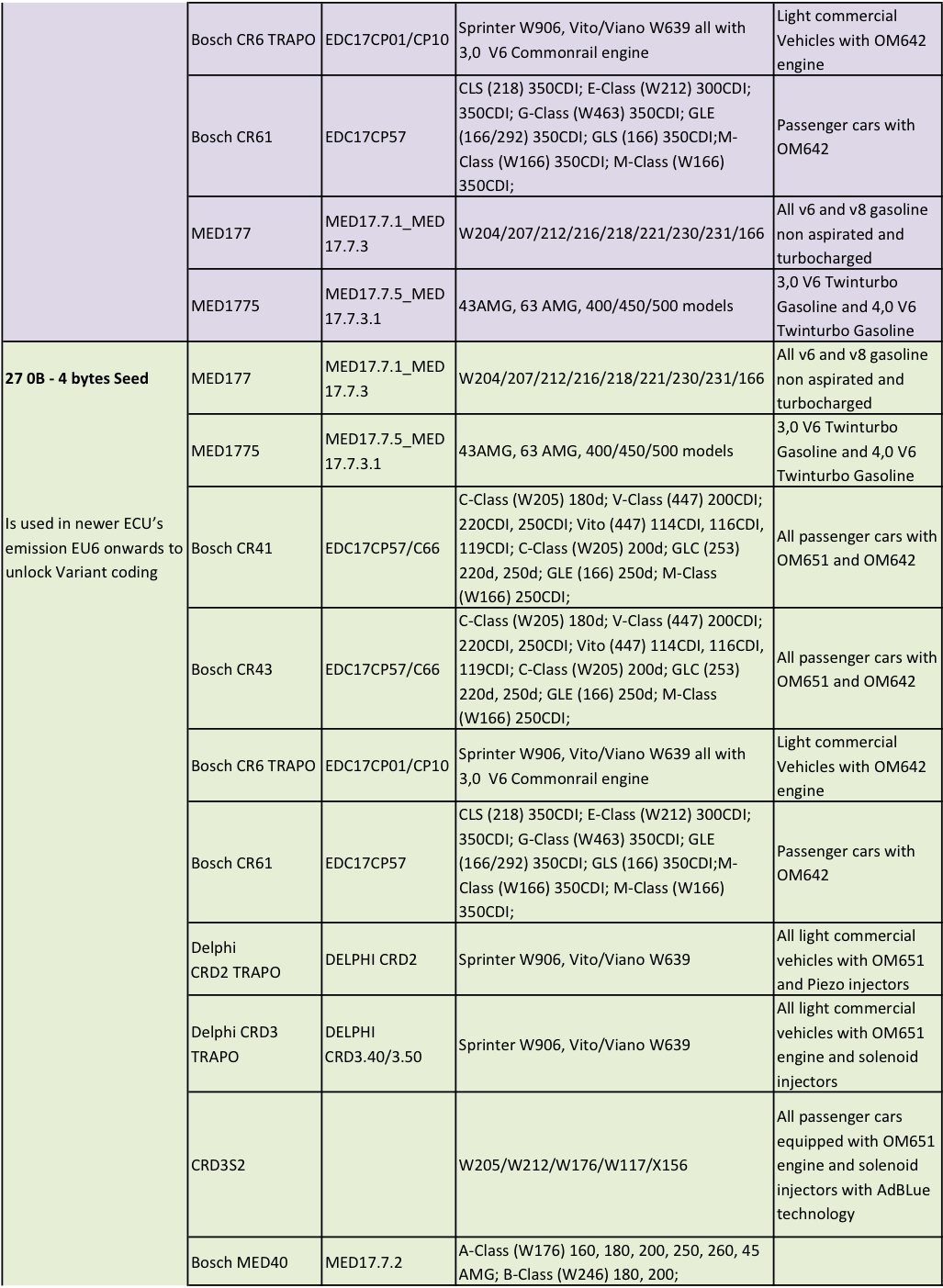

Unlock level BC – makes security access level BC

Functions/routines: request seed BC (27 0B)/send key BC (27 0C)

Functions/routines: request seed Variant coding (27 0B)/send key Variant coding (27 0C)

Is used in newer ECU’s emission EU6 onwards to unlock Variant coding

These are the most common and used levels – different controllers may have different access levels, but working in same manner, also the output seed can have different length.

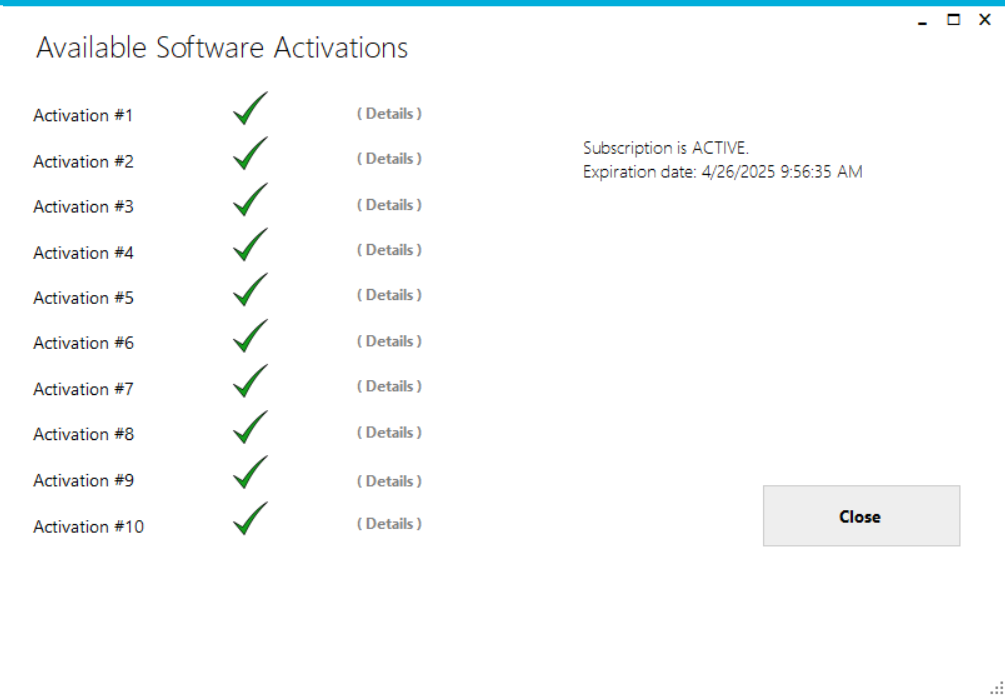

The software works with a USB dongle and the computer must have an Internet connection. This includes 10 Seed-Key calculations each day for 1 year. After the end of the year, a subscription will be paid for each subsequent year. We release new updates very often and all our software have automatic updates. Thus you can be sure you are always using the latest version of the app.

PACKAGES:

SKGT Main package (ECU) + SKGT02,3,4,5,6

SKGT Main ( ECU )

SKGT02 - W205,W213

SKGT03 - W164,W166,W212,W246

SKGT04 - W222

SKGT05 - W415,W447,W453,W906

SKGT06 - Miscellaneous modules

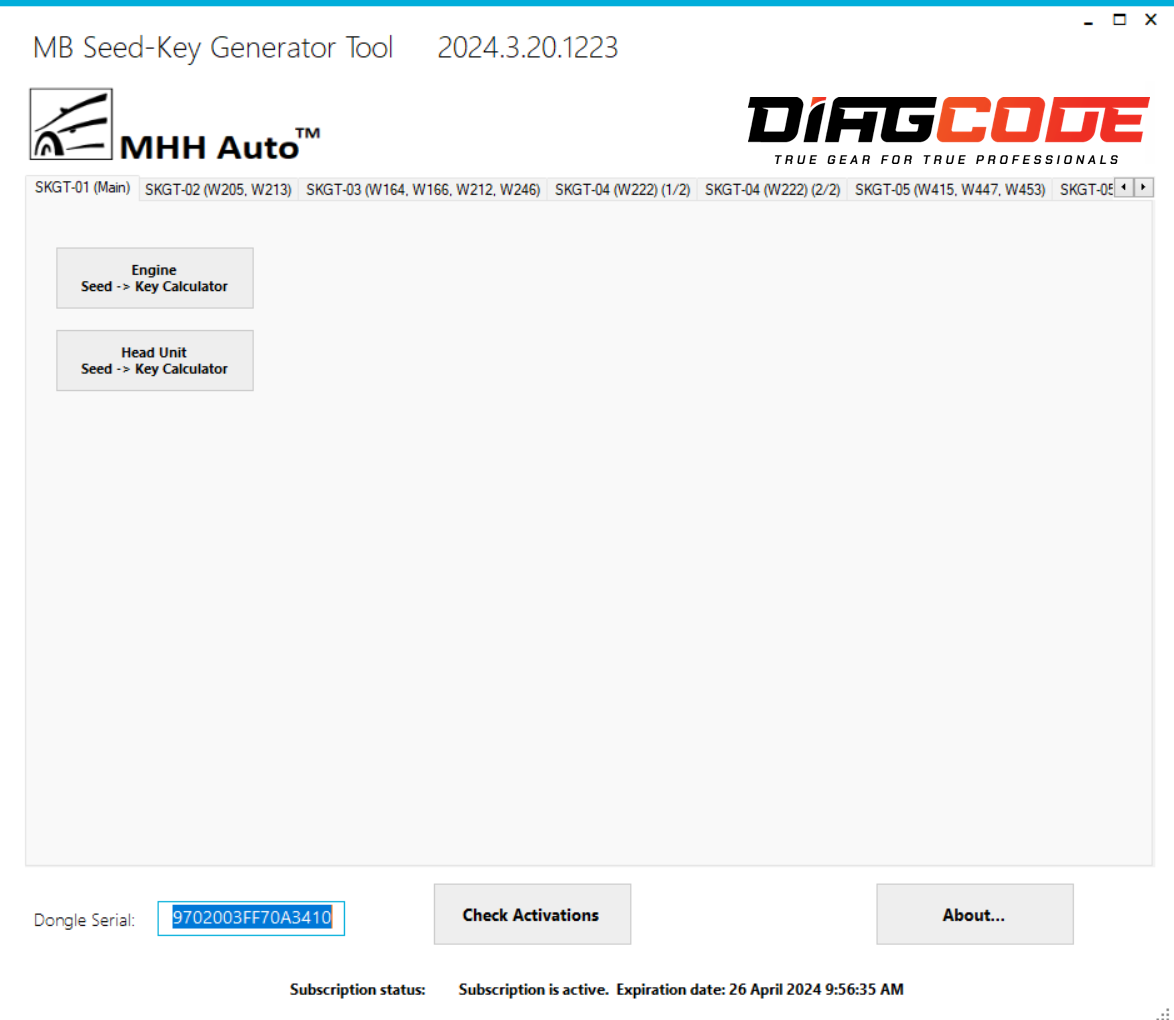

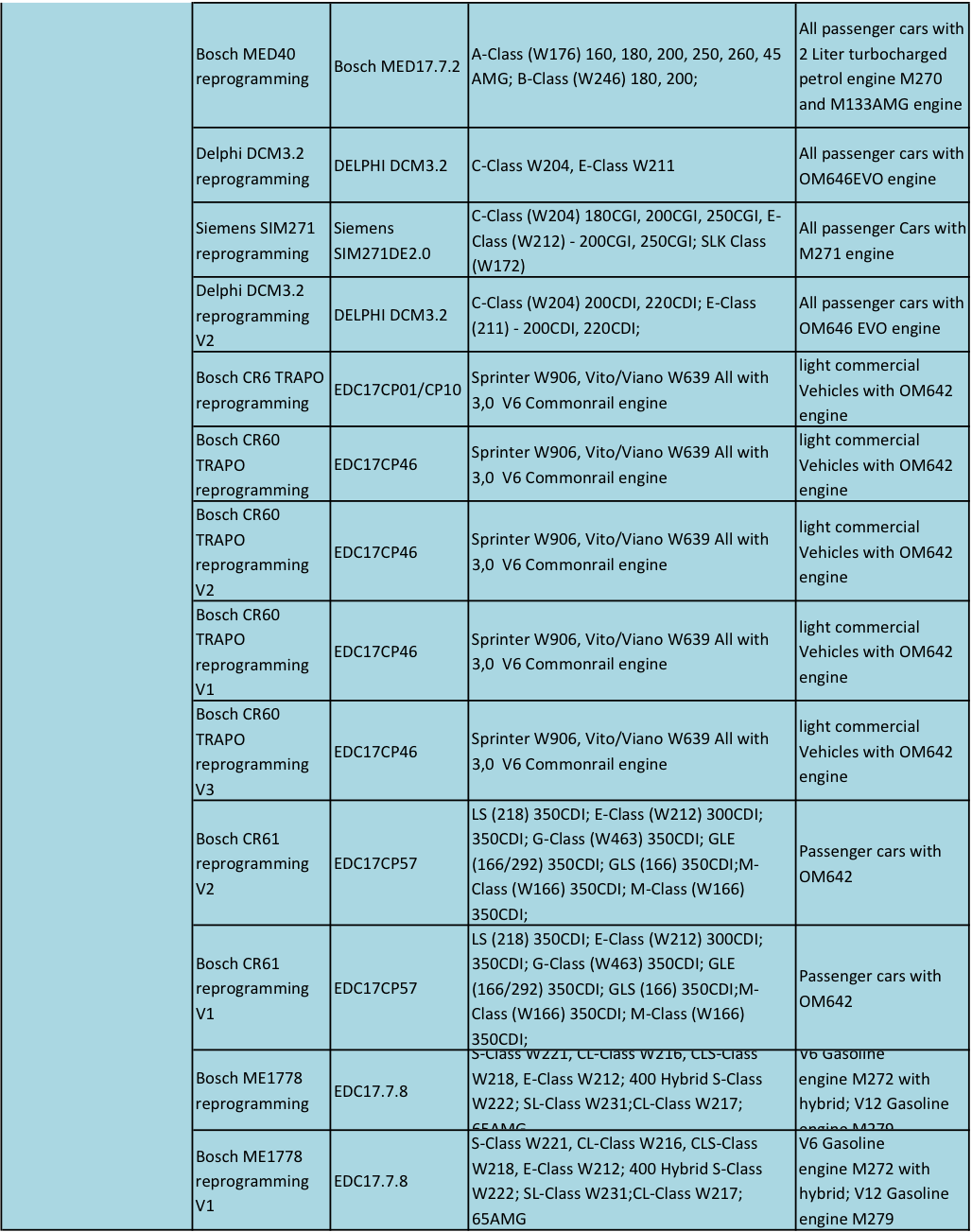

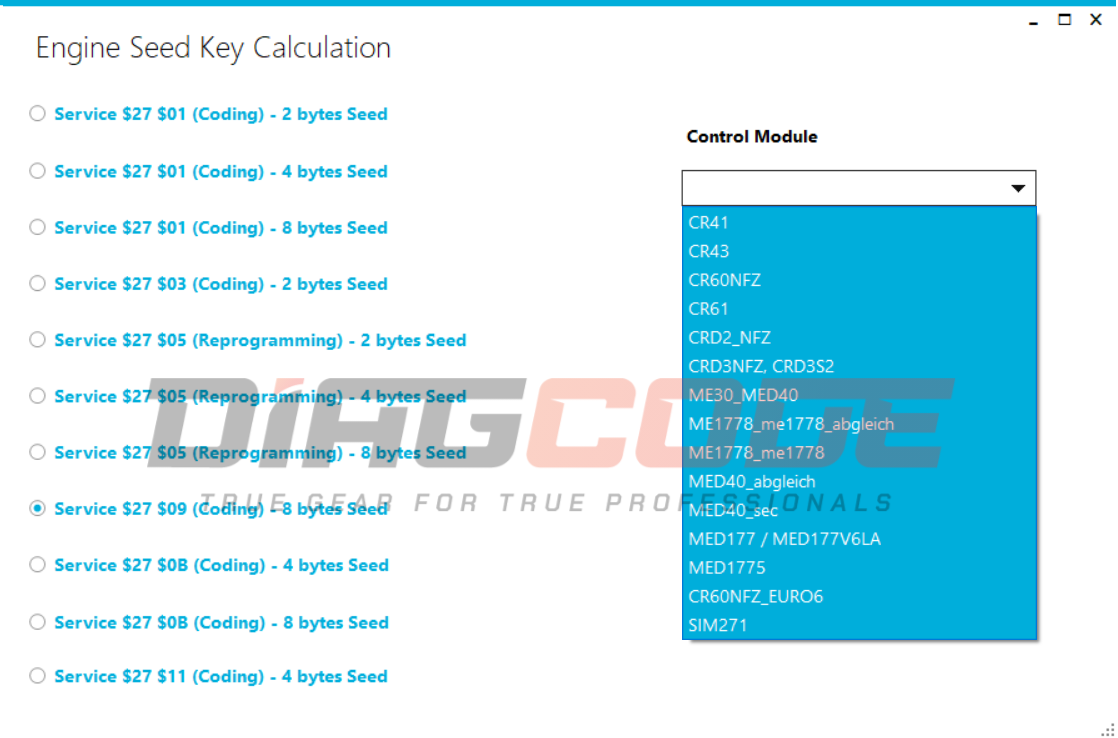

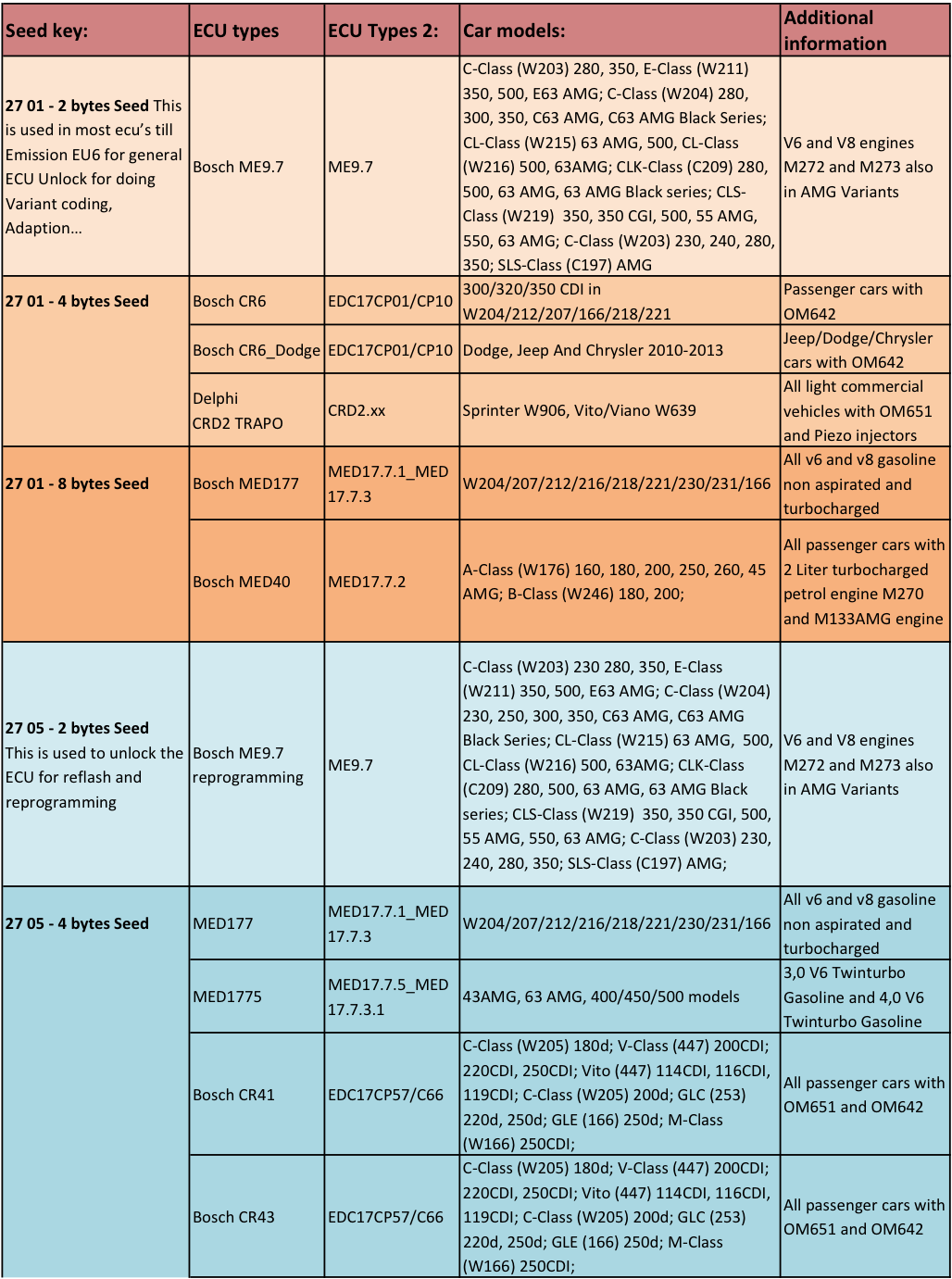

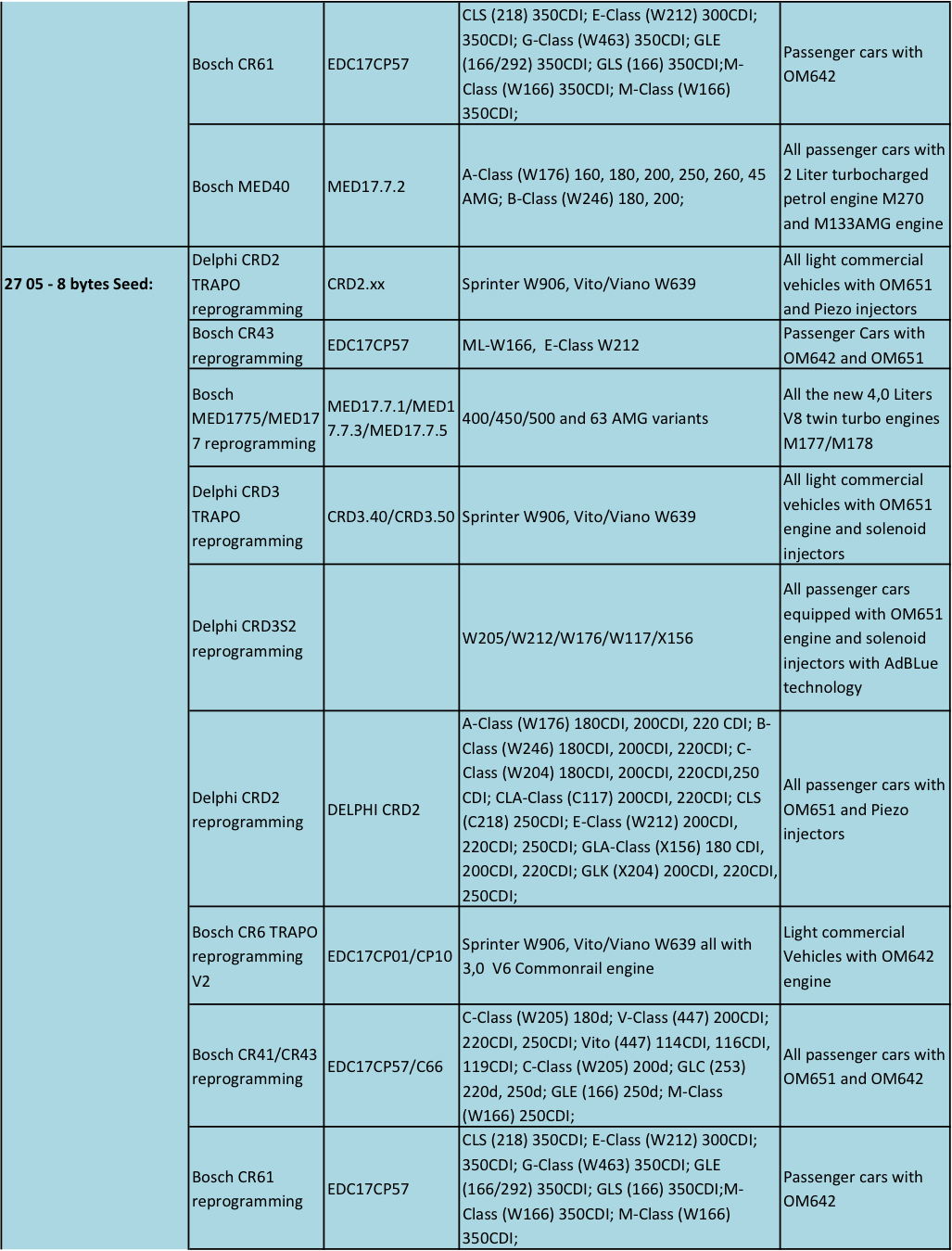

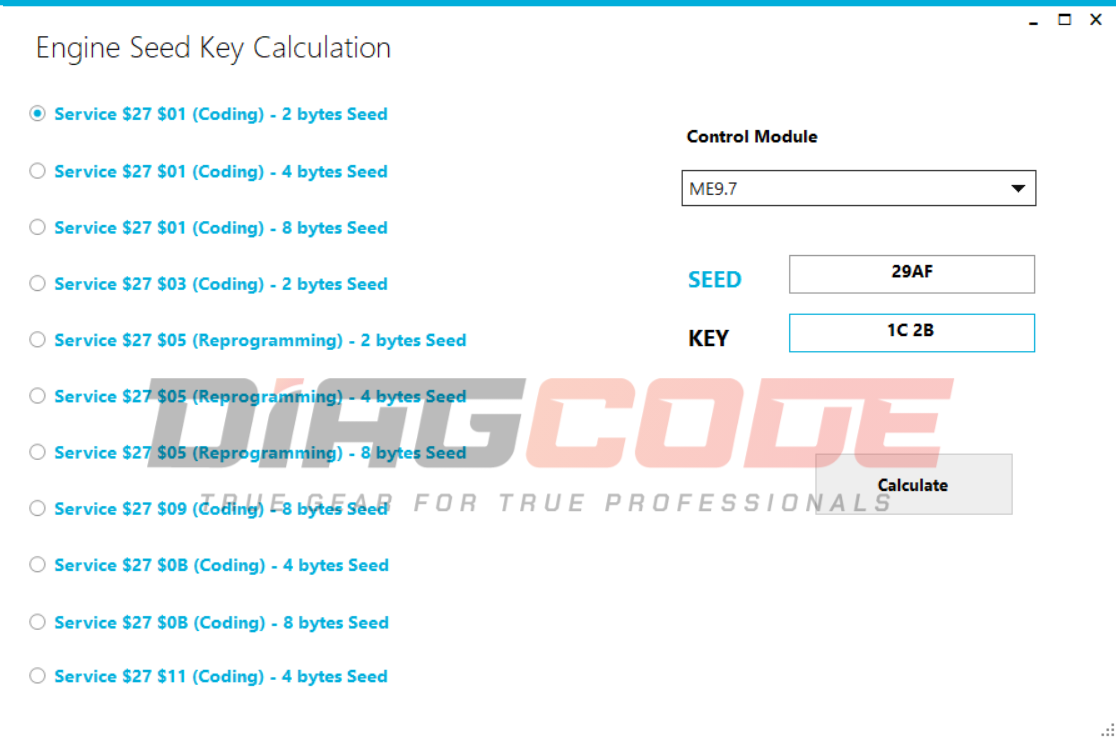

SKGT Main ( ECU )

ECU

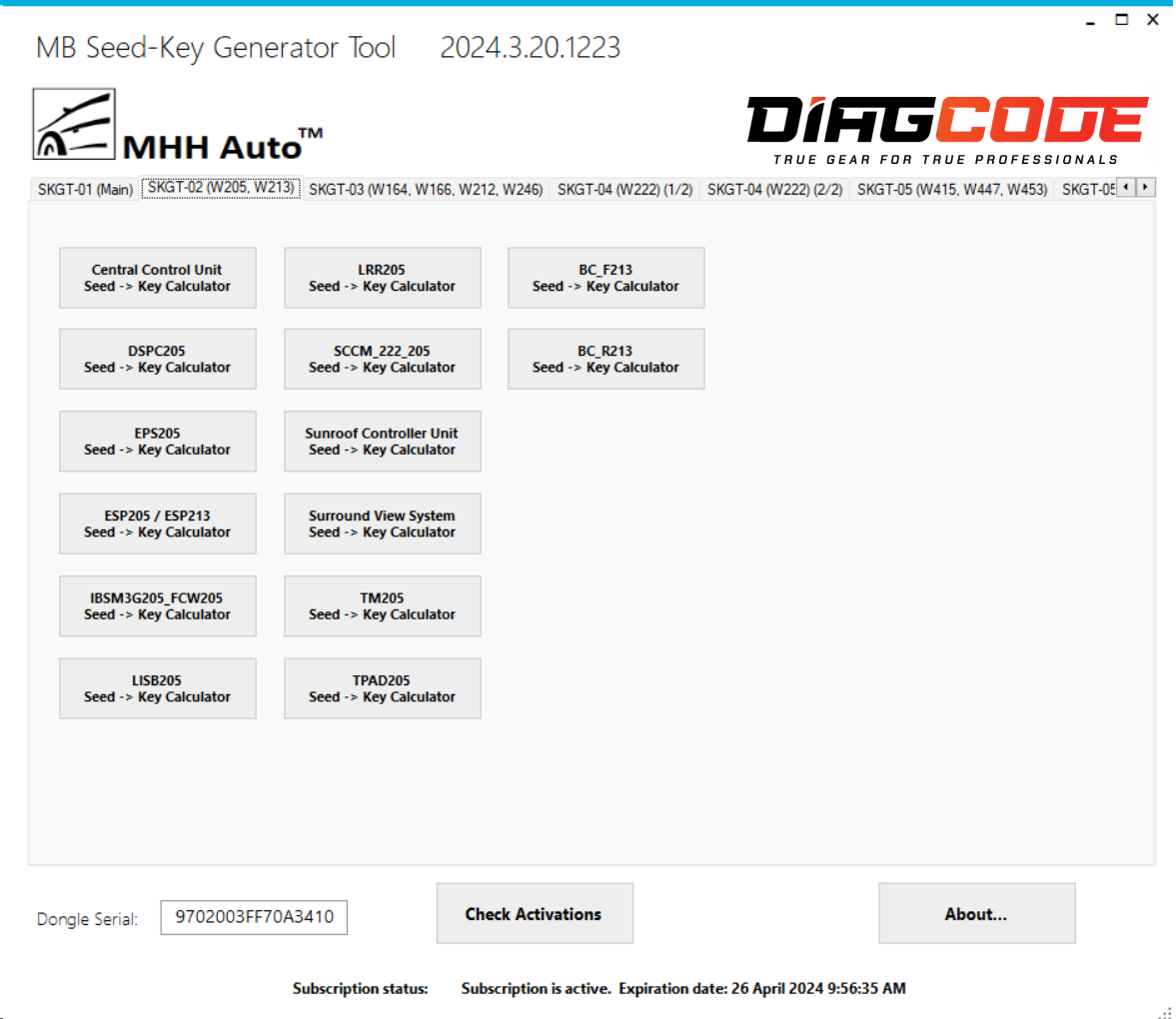

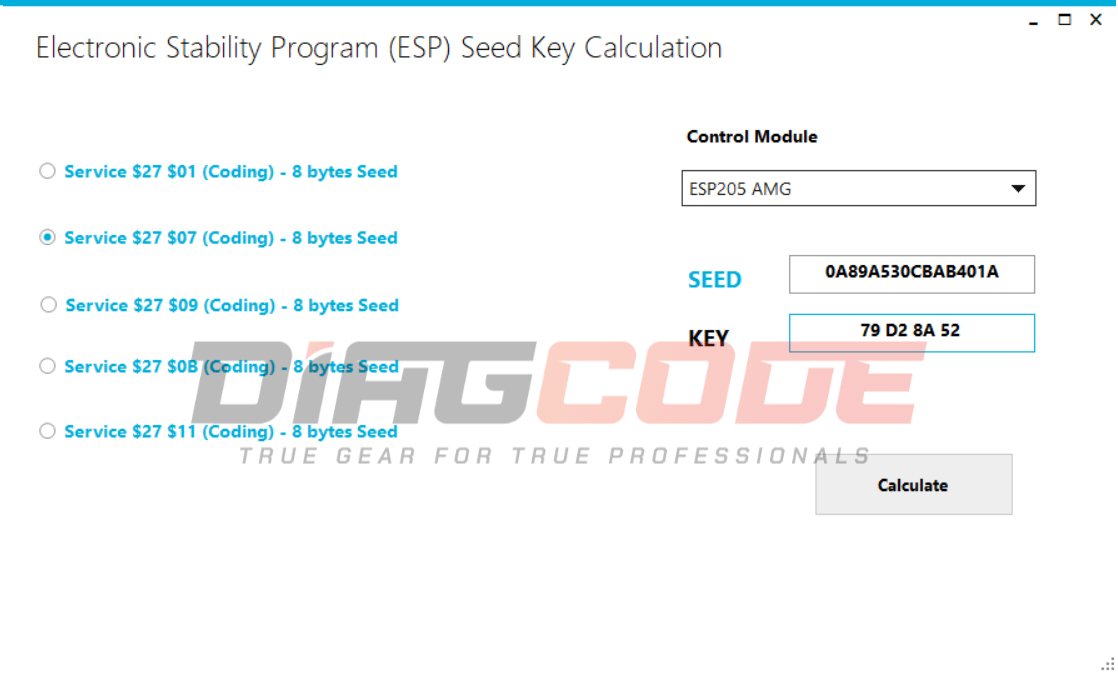

SKGT02 - W205,W213

In this function are added Seed -> Key generation for different modules.

For each module, the calculation of the algorithm is different. Can be:

27 01, 27 07, 27 09, 27 11, 27 0B – 8 bytes Seed used for Coding

27 05 - 8 bytes Seed used for Reprogramming

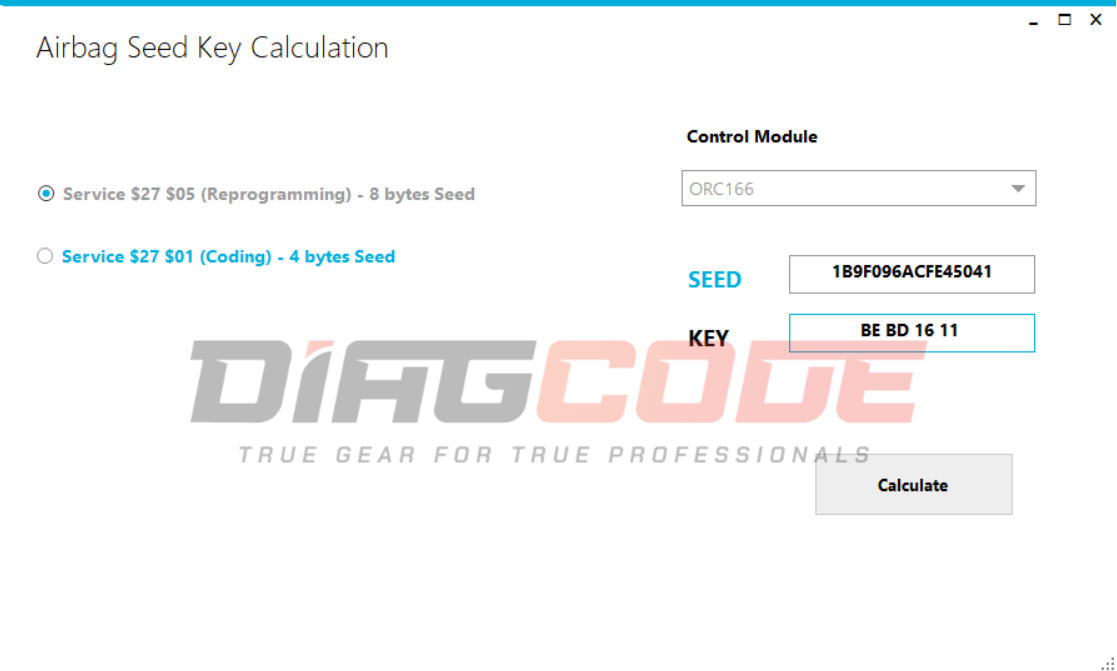

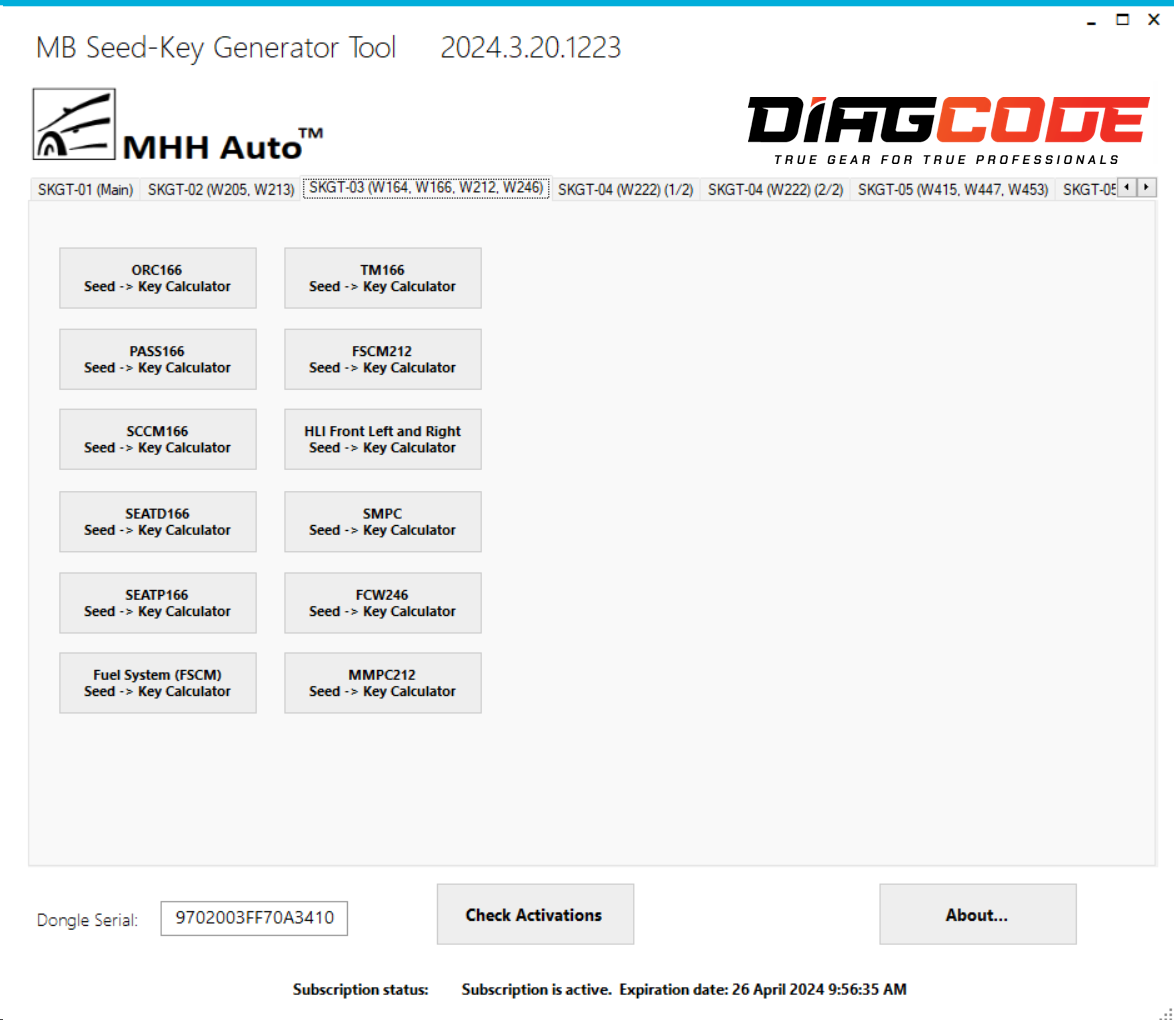

SKGT03 - W164,W166,W212,W246

In this function are added Seed -> Key generation for different modules.

For each module, the calculation of the algorithm is different. Can be:

27 01 – 4 bytes Seed used for Coding

27 05, 27 11 – 8 bytes Seed used for Coding

27 05 - 8 bytes Seed used for Reprogramming

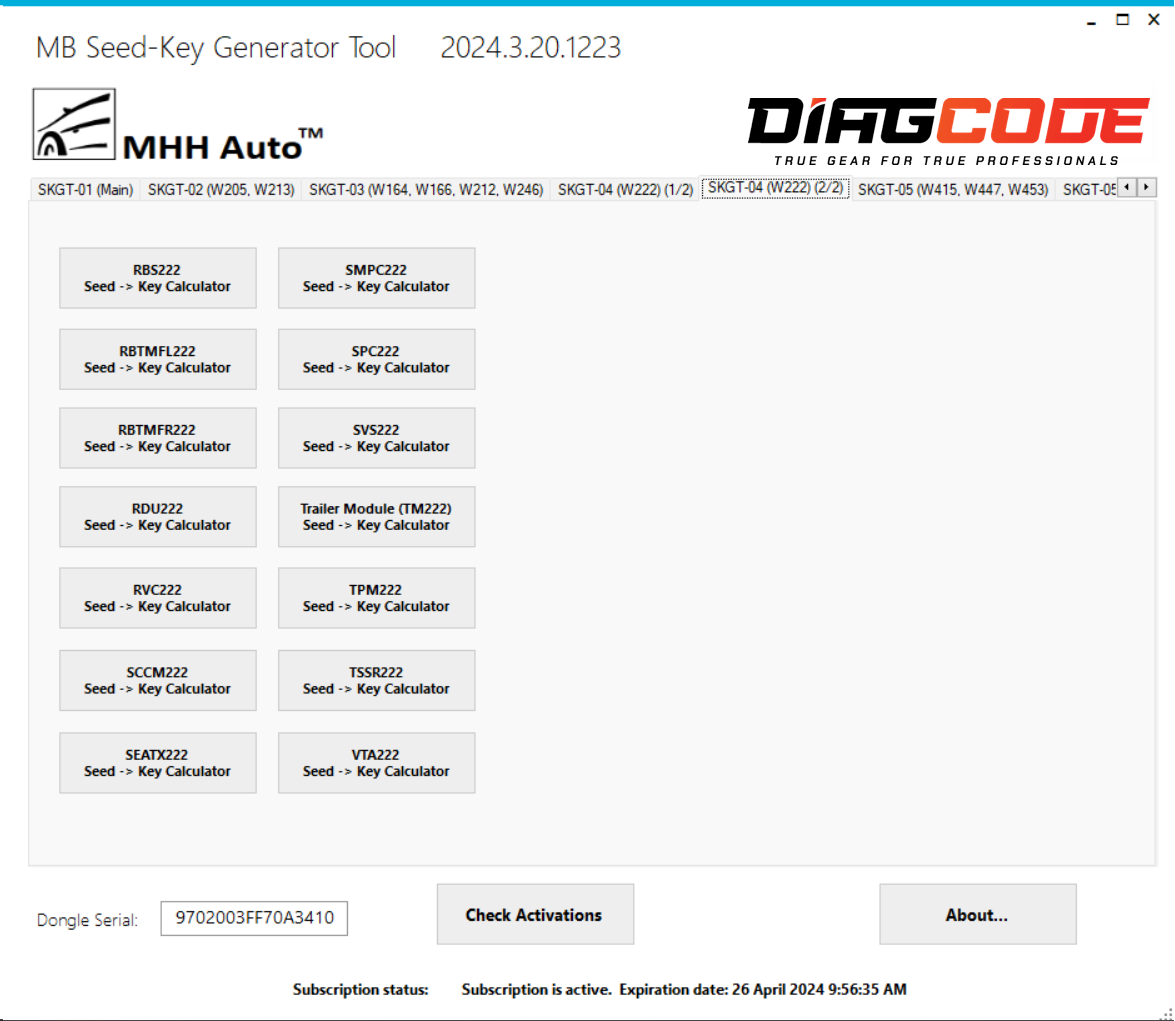

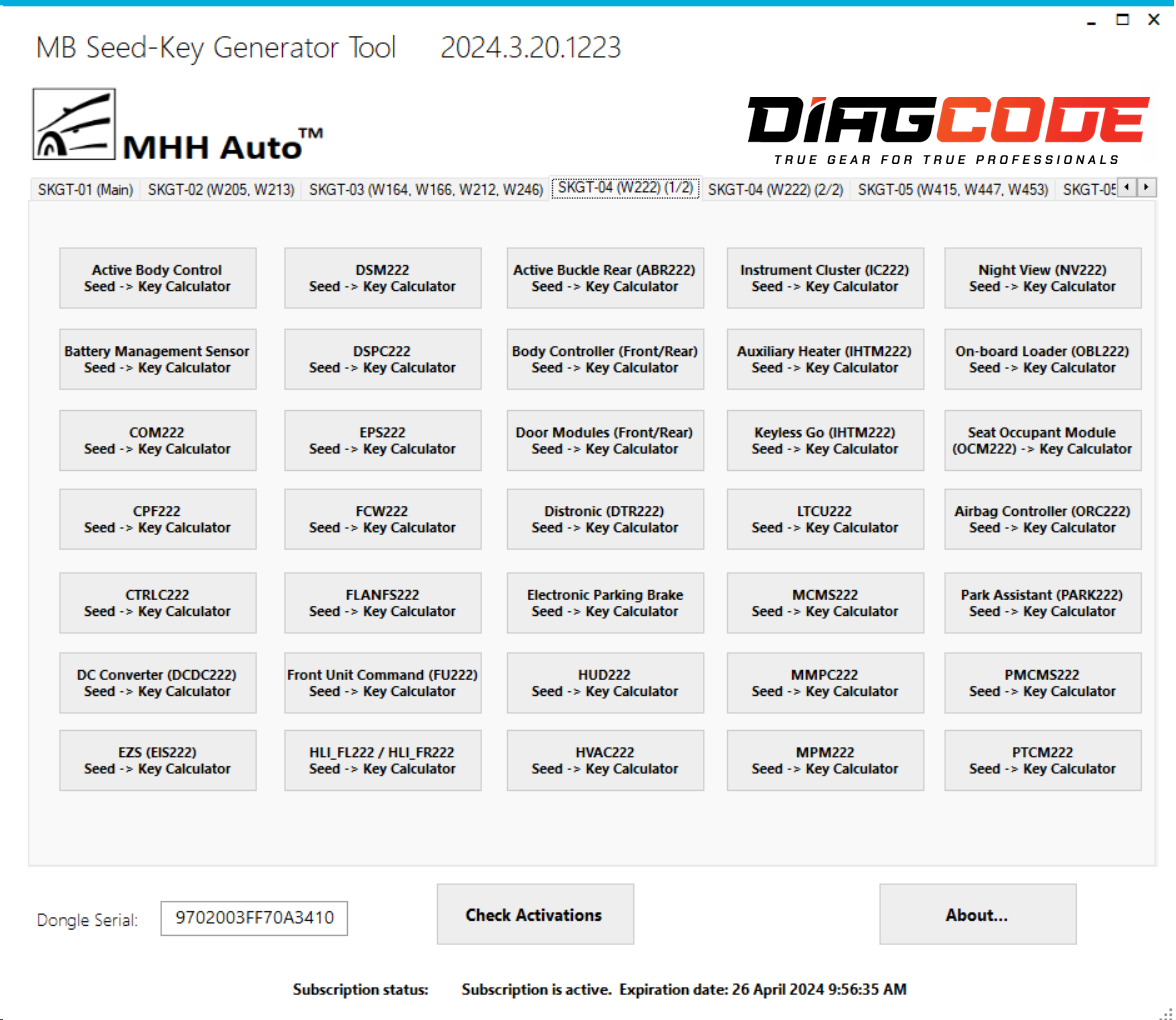

SKGT04 - W222

In this function are added Seed -> Key generation for different modules.

For each module, the calculation of the algorithm is different. Can be:

27 01 – 4 bytes Seed used for Coding

27 01, 27 05, 27 09, 27 07, 27 11, 27 61, 27 0B – 8 bytes Seed used for Coding

27 05, 27 11 - 8 bytes Seed used for Reprogramming

Algorithm 1 – 8 bytes seed -> 4 bytes key, 4 bytes seed -> 4 bytes key

Algorithm 2 – 8 bytes seed -> 4 bytes key, 4 bytes seed -> 4 bytes key

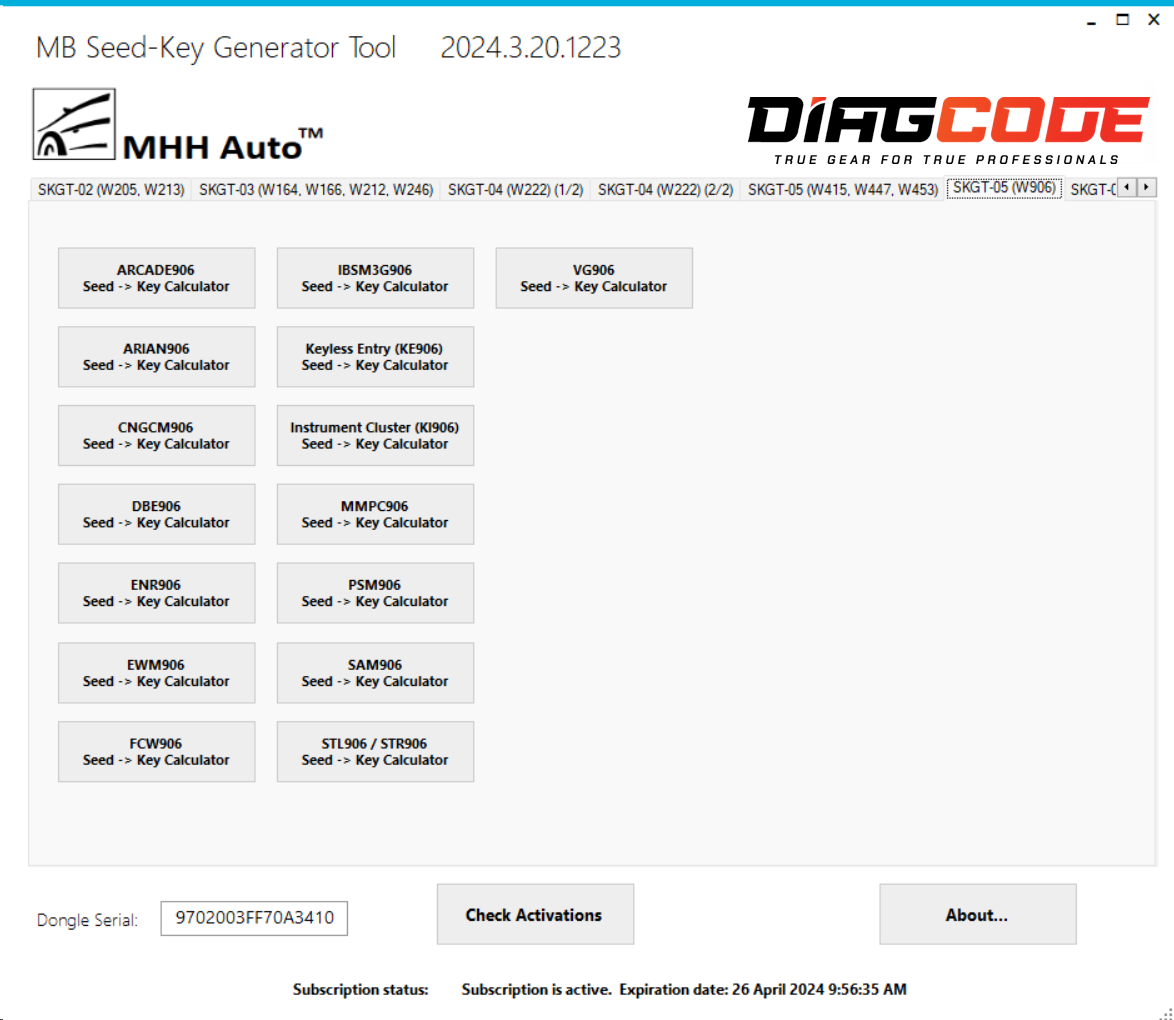

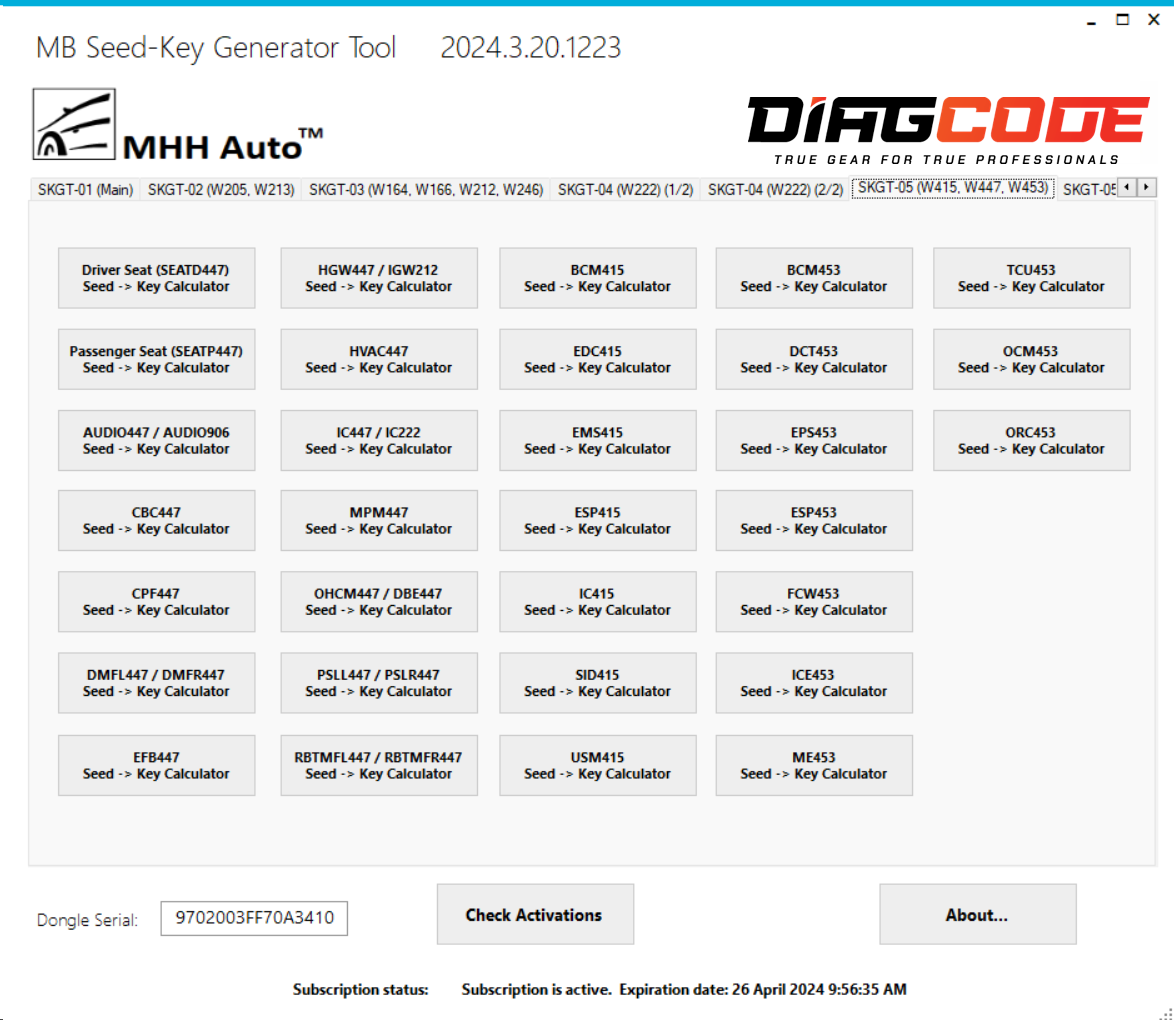

SKGT05 - W415,W447,W453,W906

In this function are added Seed -> Key generation for different modules.

For each module, the calculation of the algorithm is different. Can be:

27 01, 27 03 – 2 bytes Seed used for Coding

27 01, 27 81 – 6 bytes seed used for Coding

27 05 - 8 bytes Seed used for Reprogramming

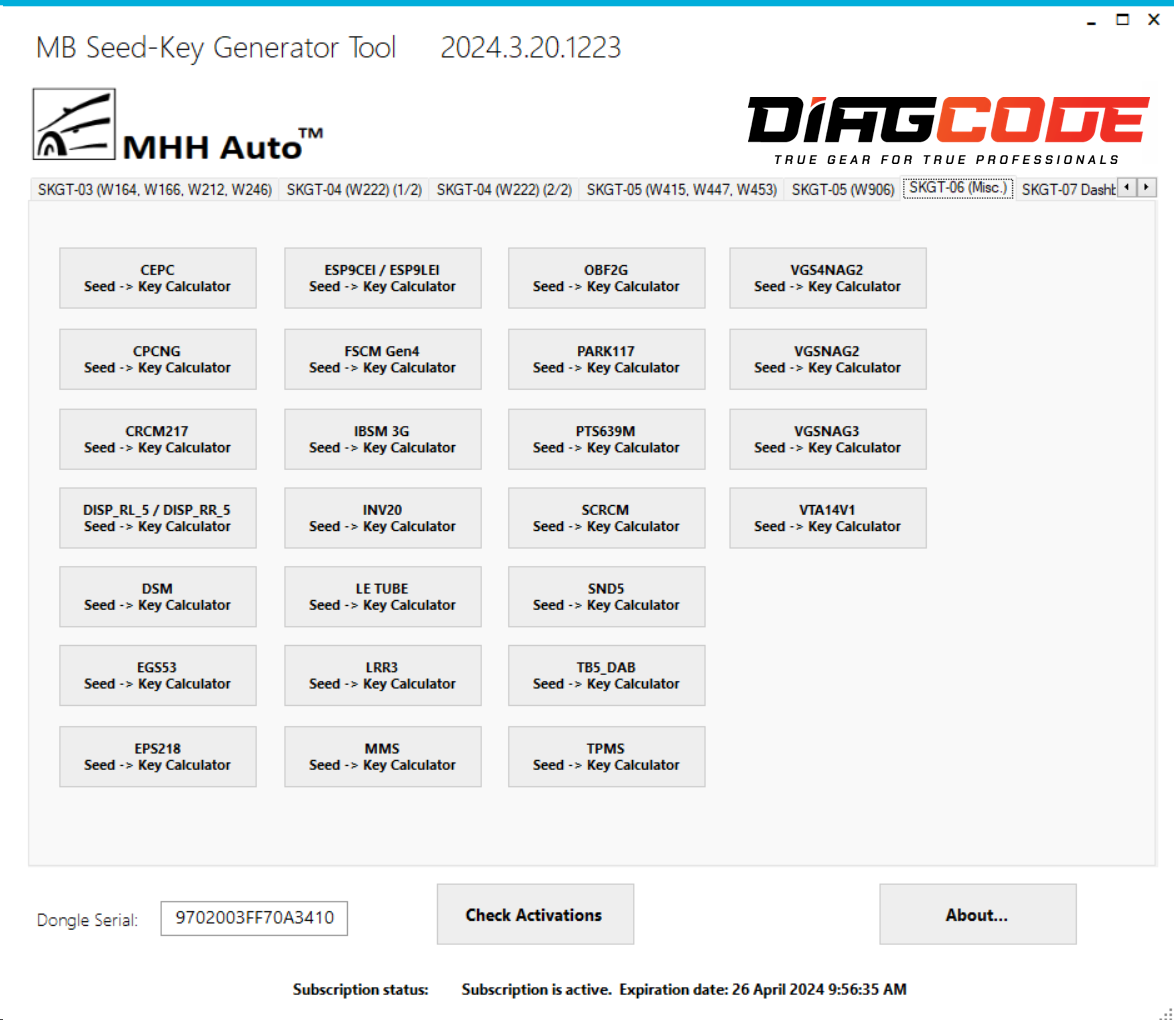

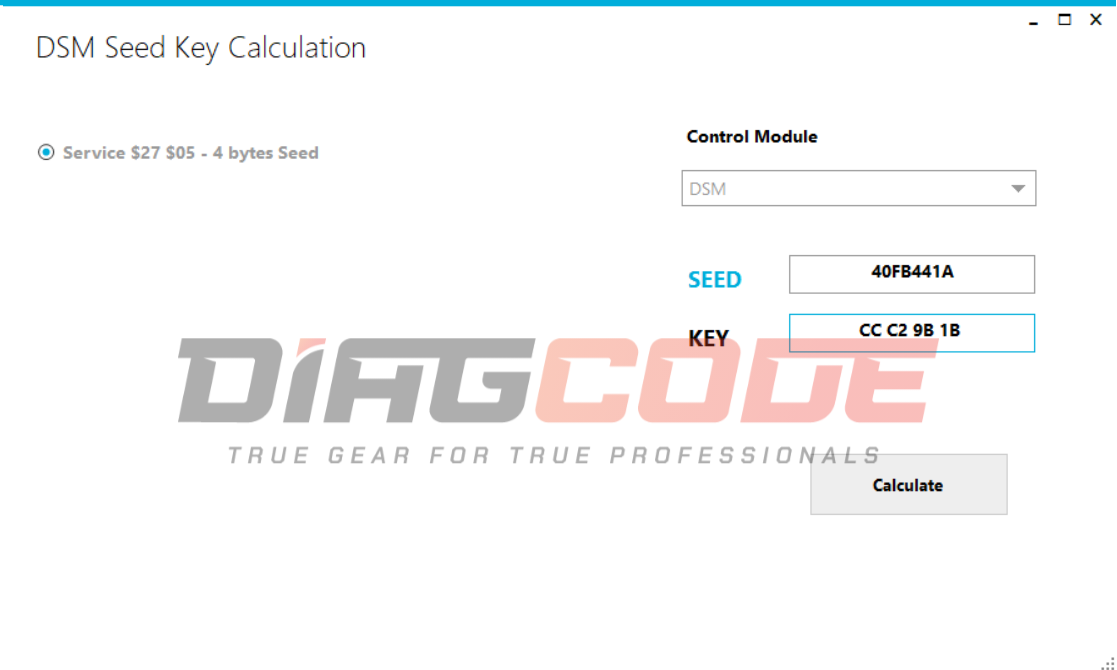

SKGT06 - Miscellaneous modules

In this function are added Seed -> Key generation for different modules.

27 05, 27 11 – used for Reprogramming

27 01,27 09, 27 11, 27 0B - used for Coding

200 euro

Order Now

After the first year, an annual subscription is payable.

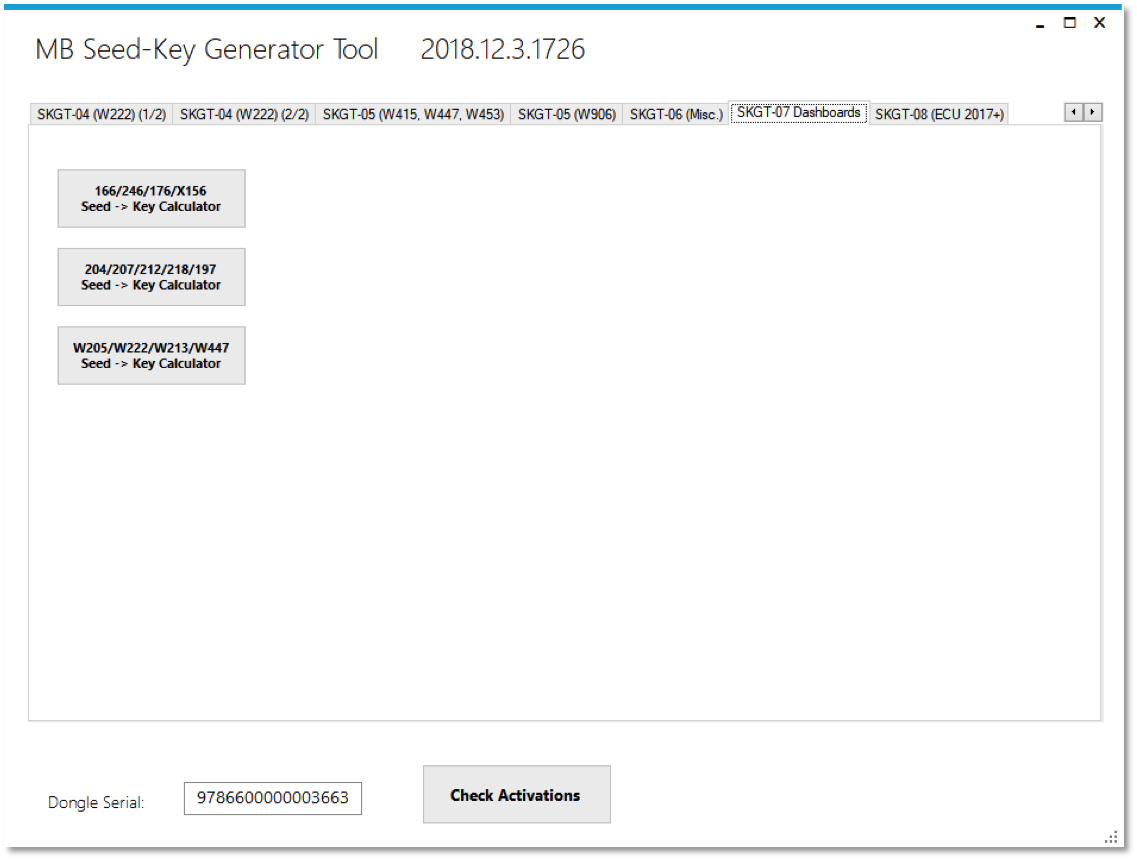

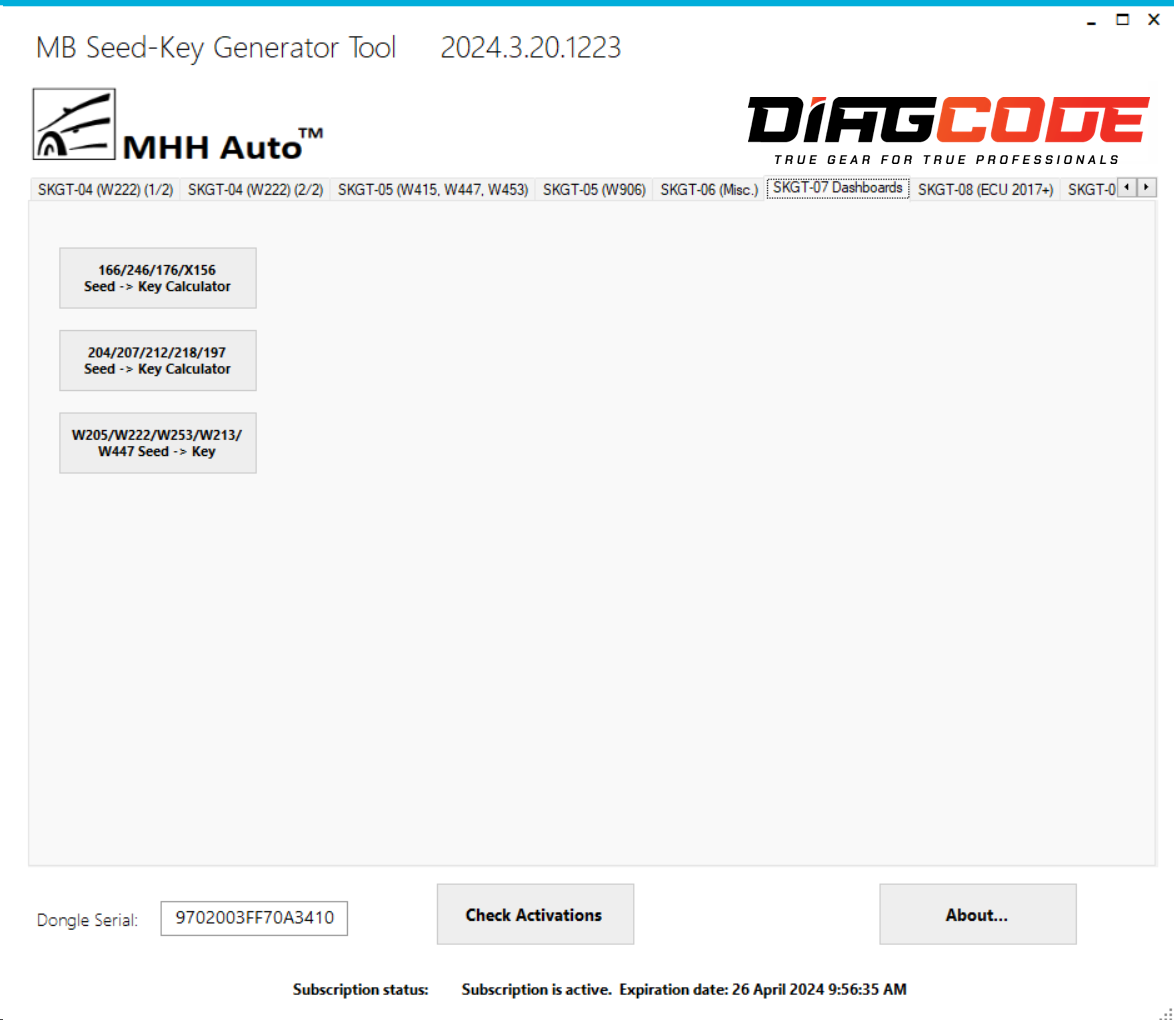

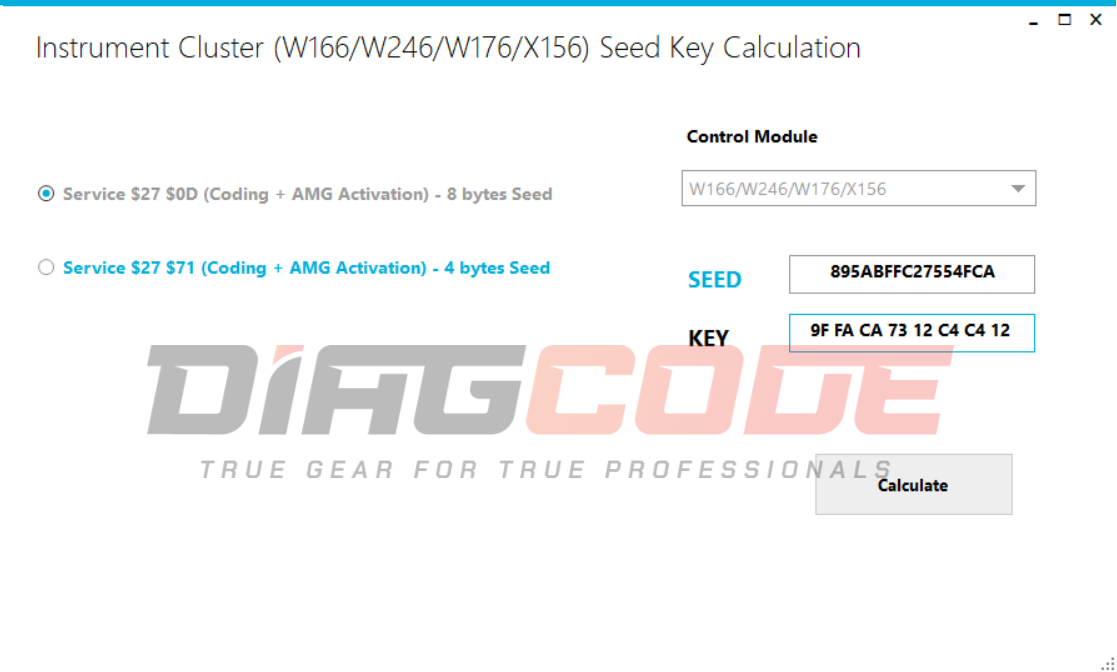

SKGT07 update – Dashboards and AMG activation – W204, W207, W212, W218, W197, W166, W176, W246, X156, W205, W222, W213, W447:

In this function are added Seed -> Key generation for different modules.

For each module, the calculation of the algorithm is different. Can be:

27 71 – 4 bytes Seed used for Coding and AMG activation 

27 09, 27 05, 27 0D – 8 bytes seed used for Coding and AMG activation

27 05 - 8 bytes Seed used for Reprogramming

27 61 – 8 bytes for EEPROM access

430 euro

Order Now

After the first year, an annual subscription is payable.

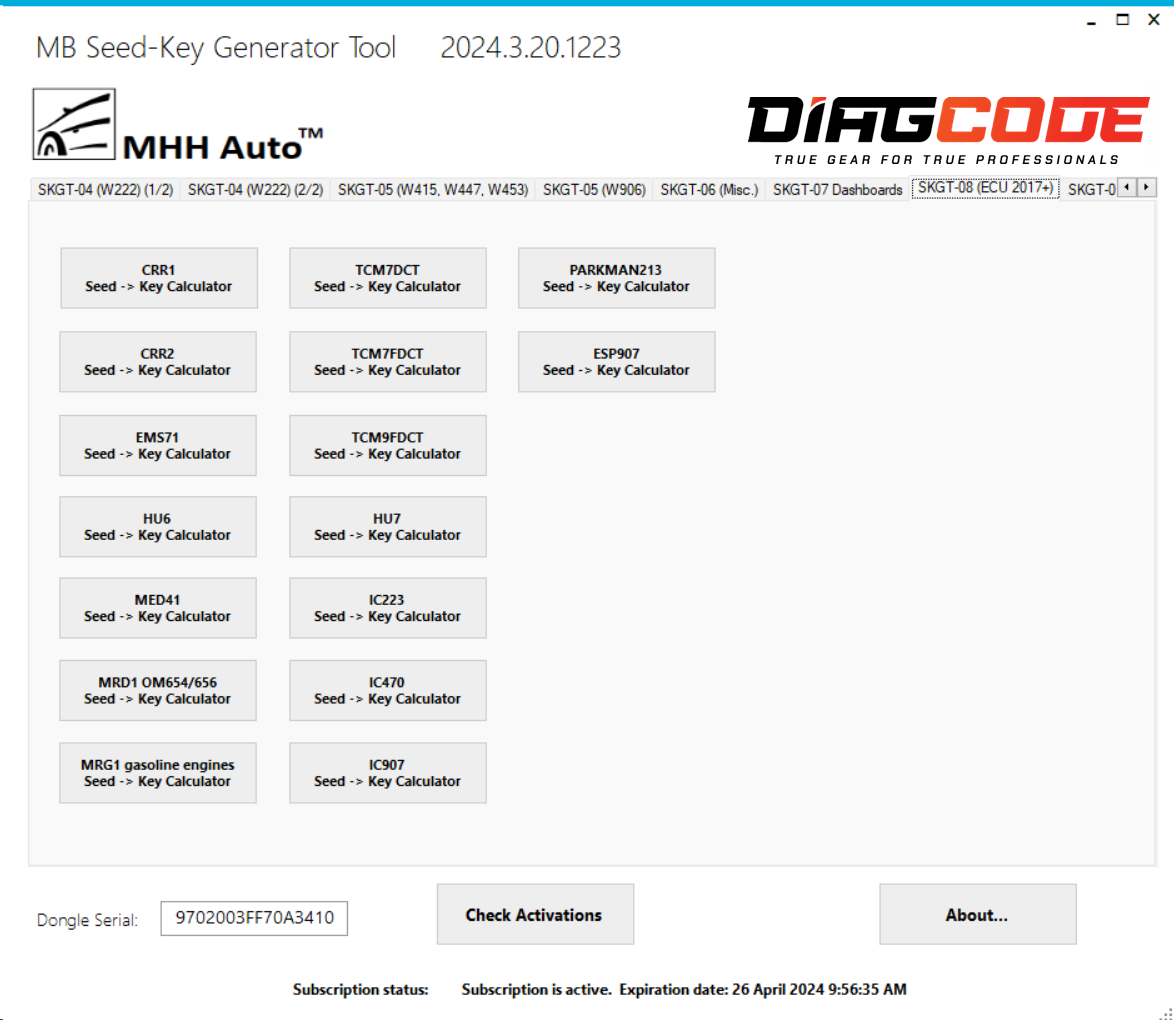

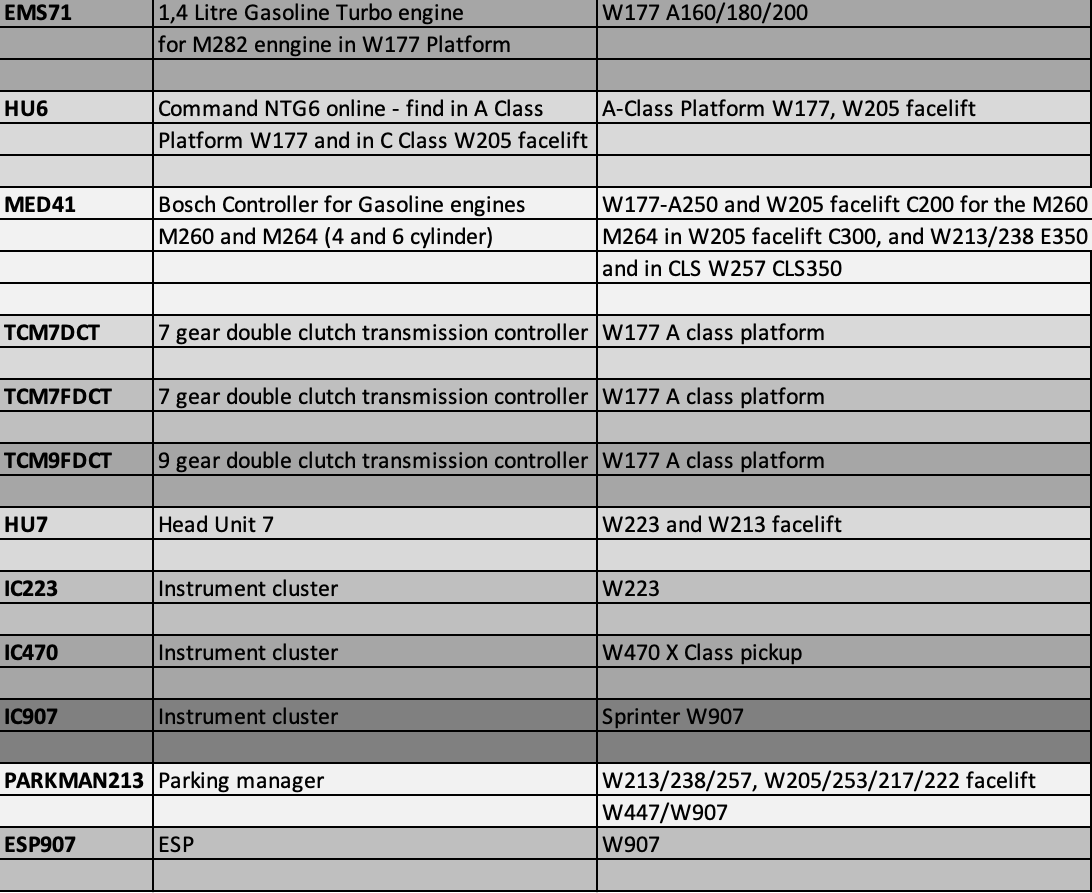

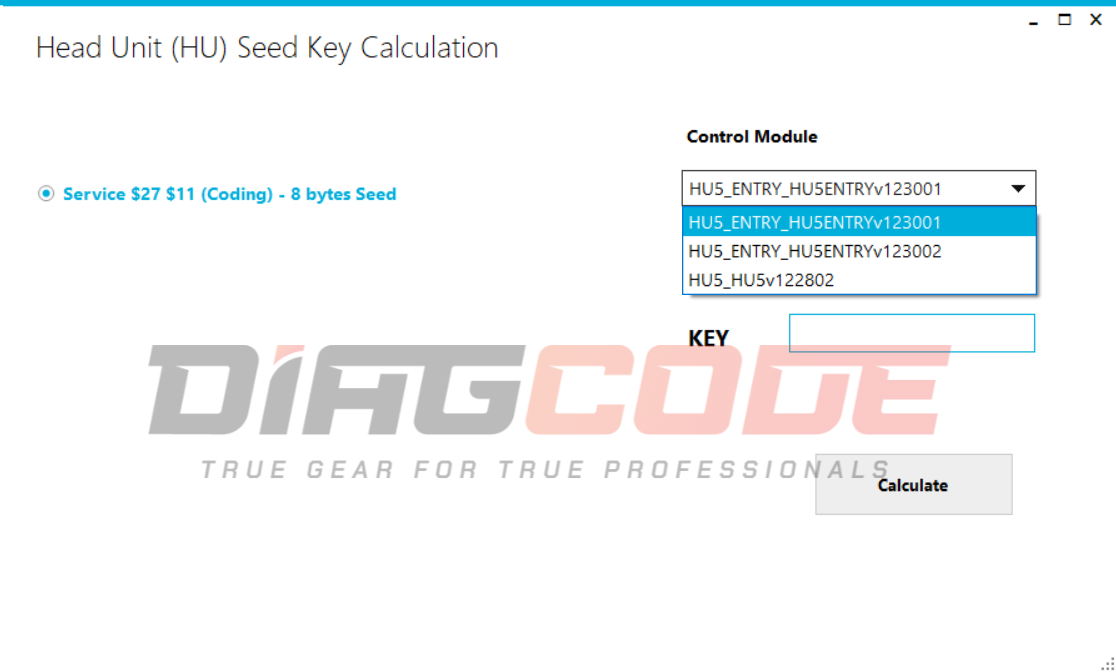

SKGT08 update - MRD1, CRR1, CRR2, MRG1, EMS71,

HU6, MED41, TCM7DCT, TCM7FDCT, TCM9FDCT:

In this function are added Seed -> Key generation for different modules. 

For each module, the calculation of the algorithm is different. Can be:

27 01 – 8 bytes Seed used for Coding 

27 05, 27 09, 27 0B, 27 11 – 8 bytes seed used for Coding/Reprogramming

430 euro

Order Now

After the first year, an annual subscription is payable.

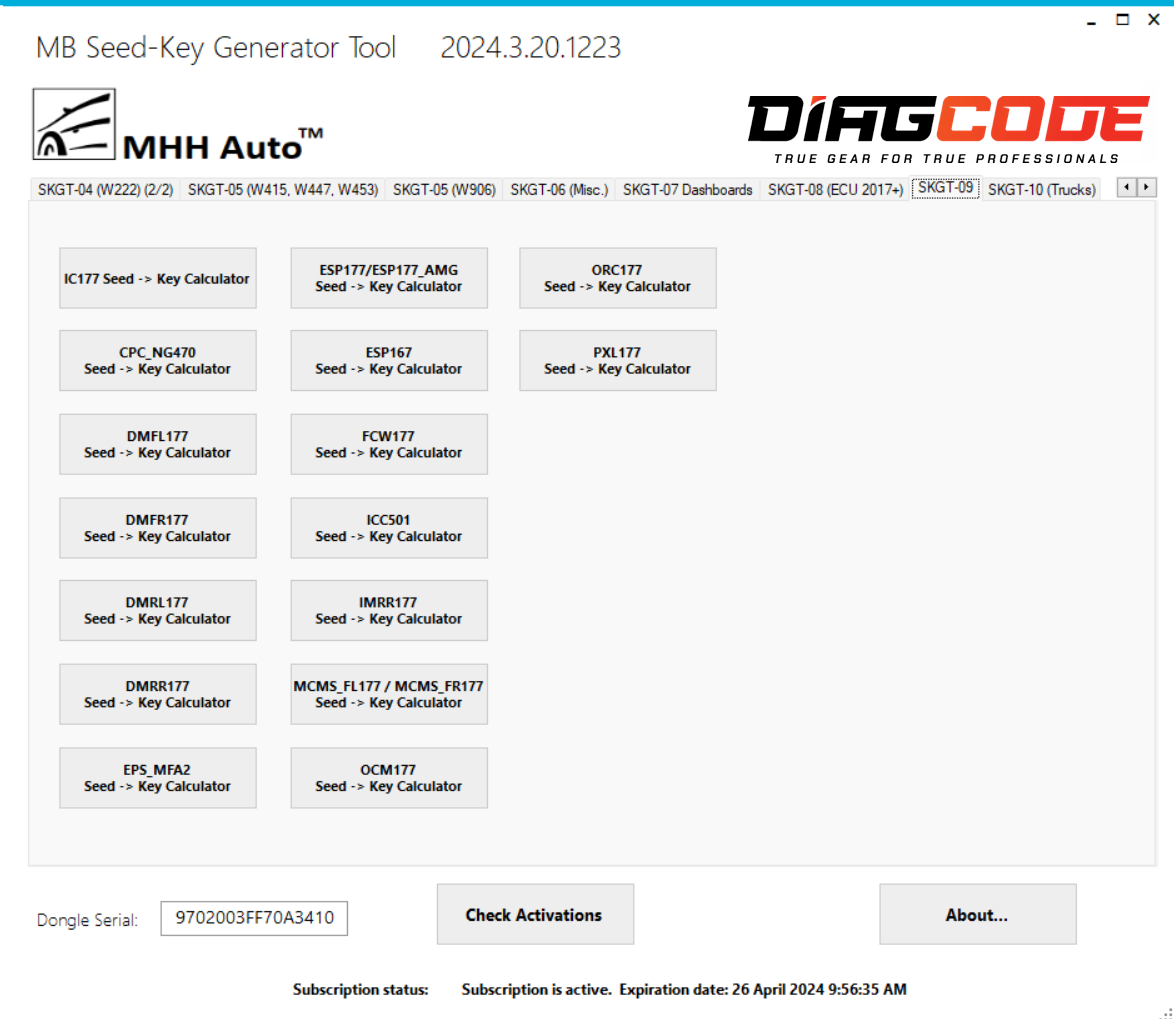

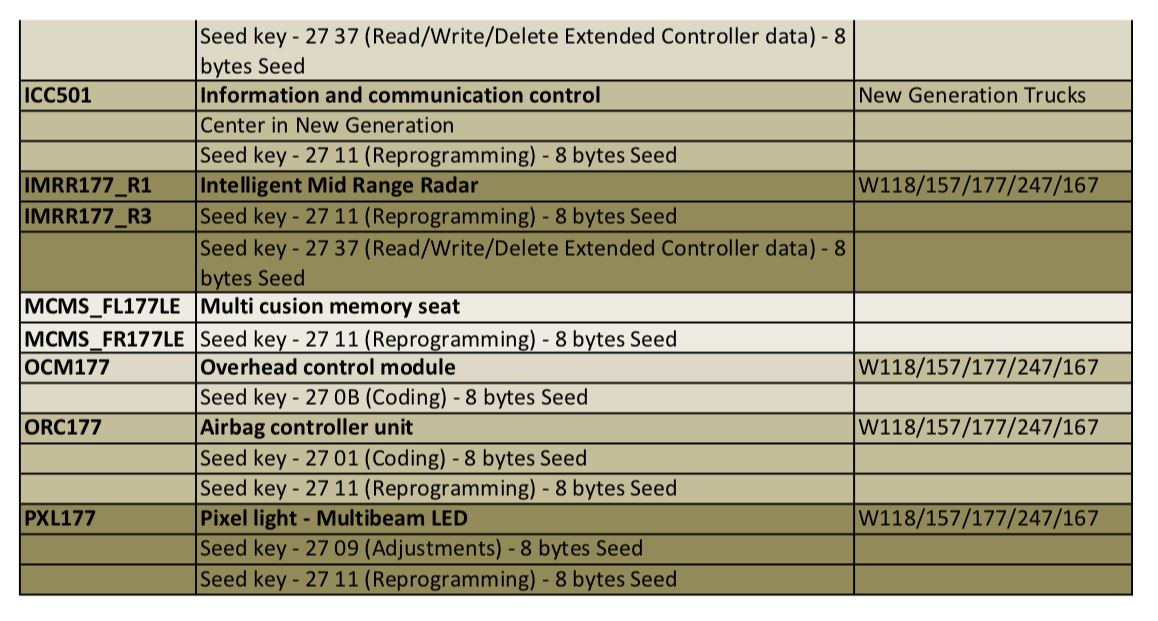

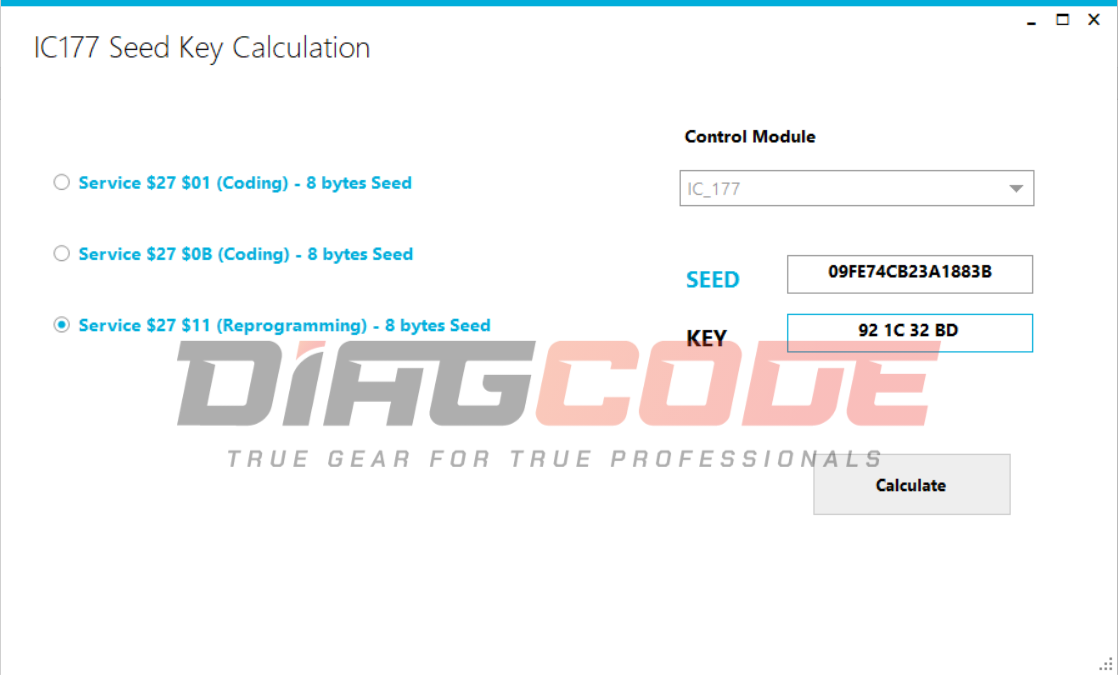

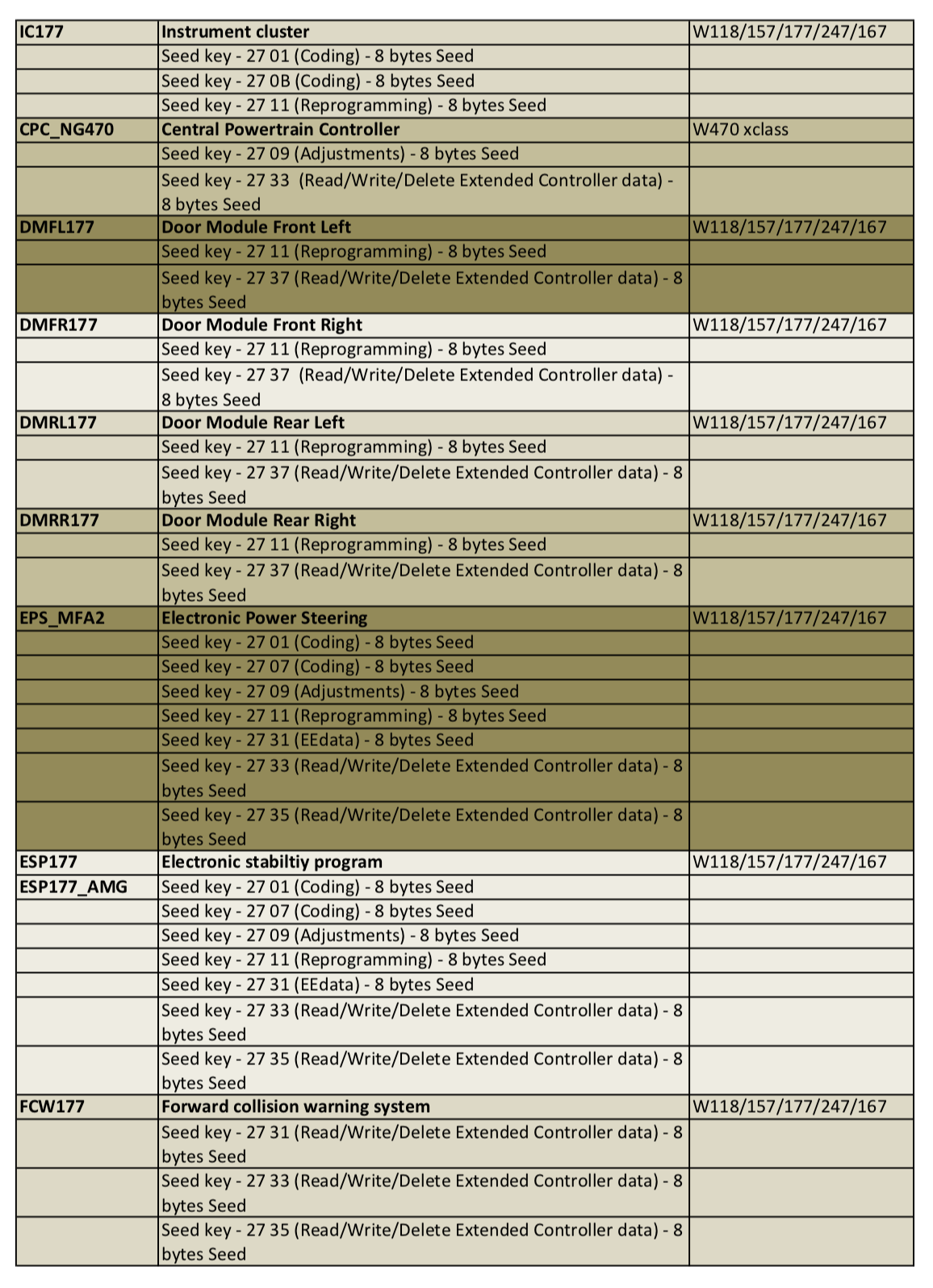

SKGT09 update - W177, W157, W247, W167 - Reprogramming, Adjustments, EEprom access, Read/Write/Delete Extended Controller data and variantcoding:

In this function are added Seed -> Key generation for different modules. For each module, the calculation of the algorithm is different. Can be: 

27 01, 27 07, 27 0B – 8 bytes Seed used for Coding;

27 11 – 8 bytes seed used for Reprogramming; 

27 09 – 8 bytes seed used for Adjustments;

27 31, 27 33, 27 35, 27 37 – 8 bytes seed used for Reprogramming;

27 31 – 8 bytes seed used for EEprom data access.

290 euro

Order Now

After the first year, an annual subscription is payable.

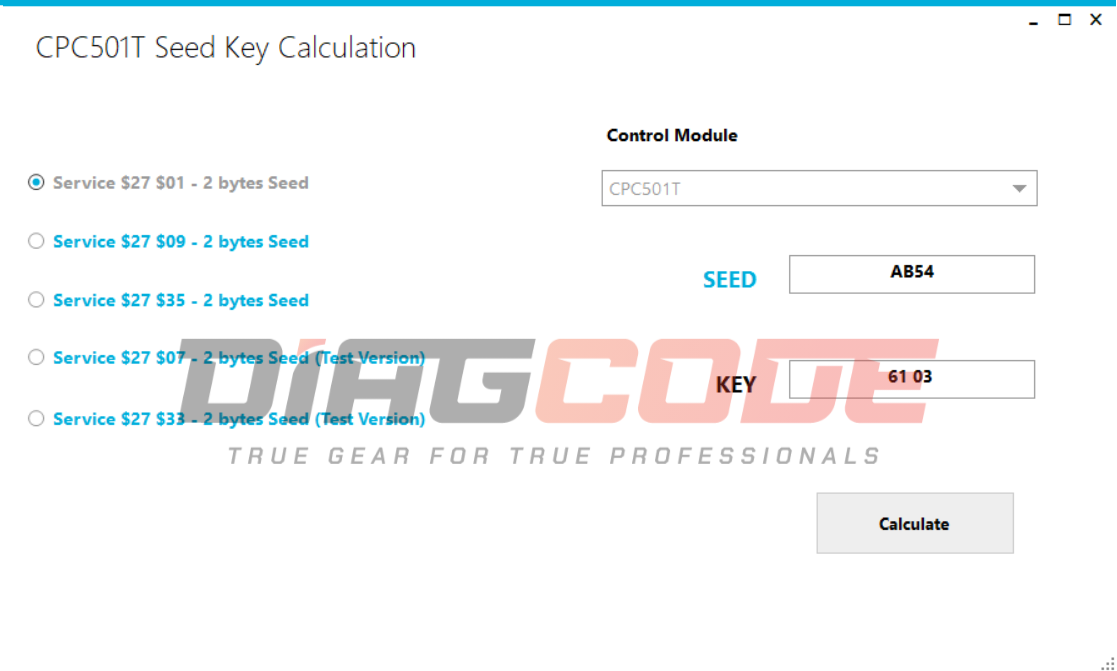

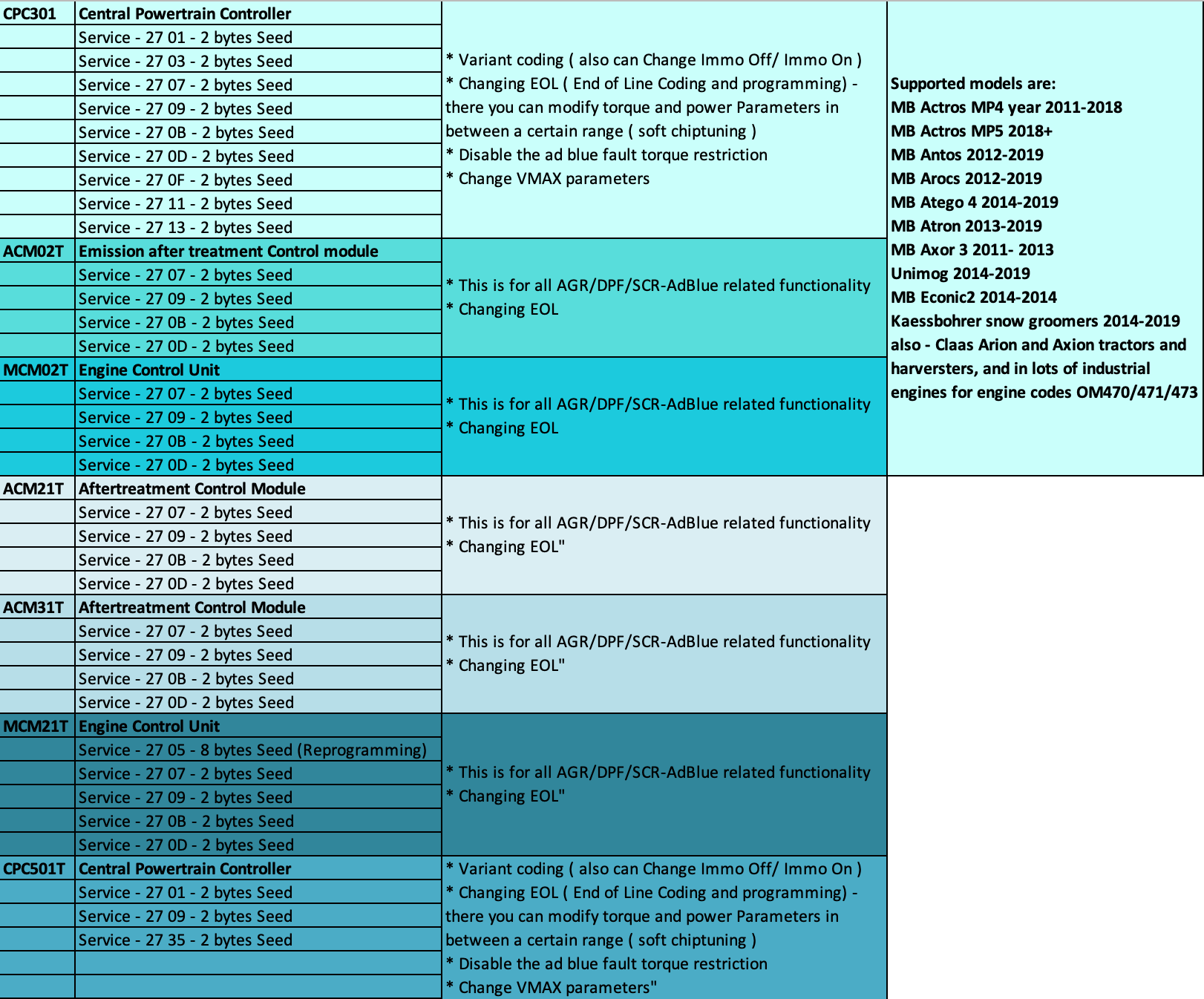

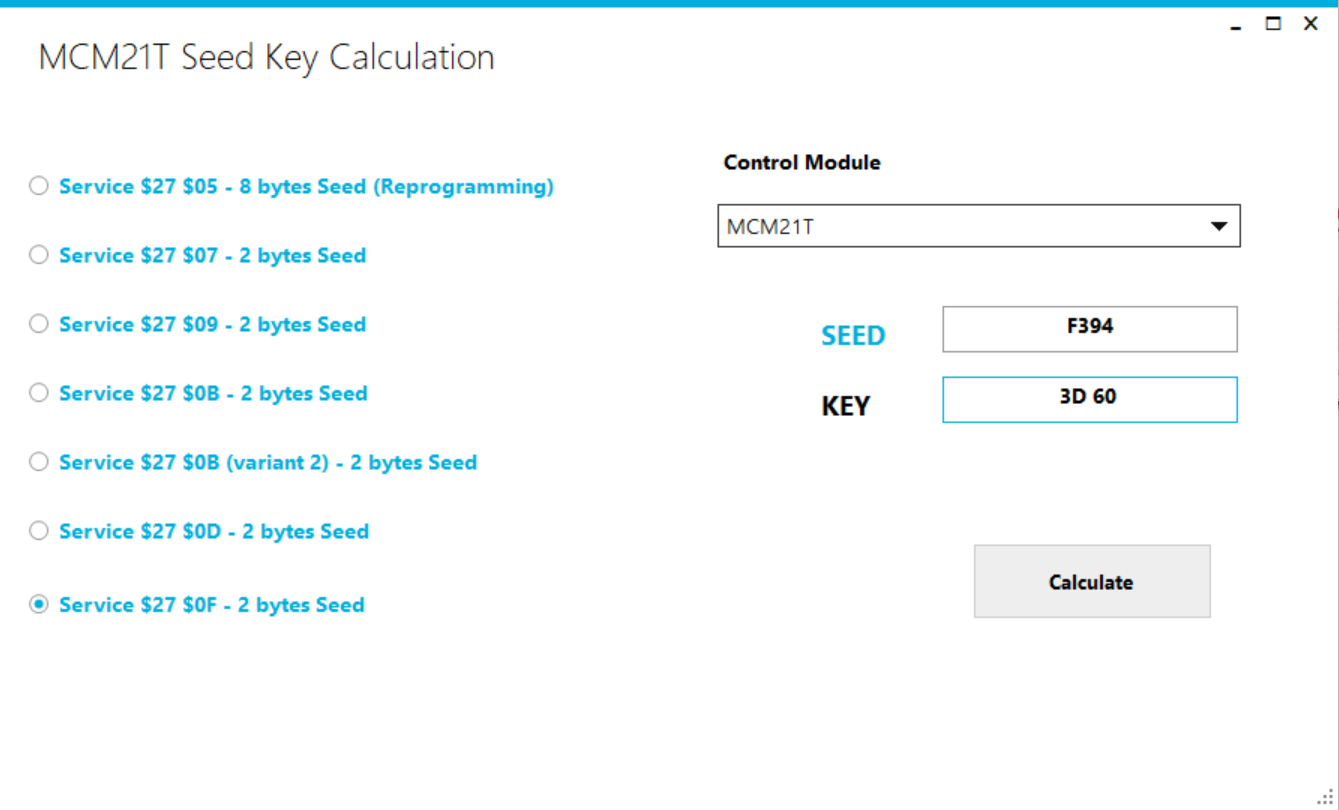

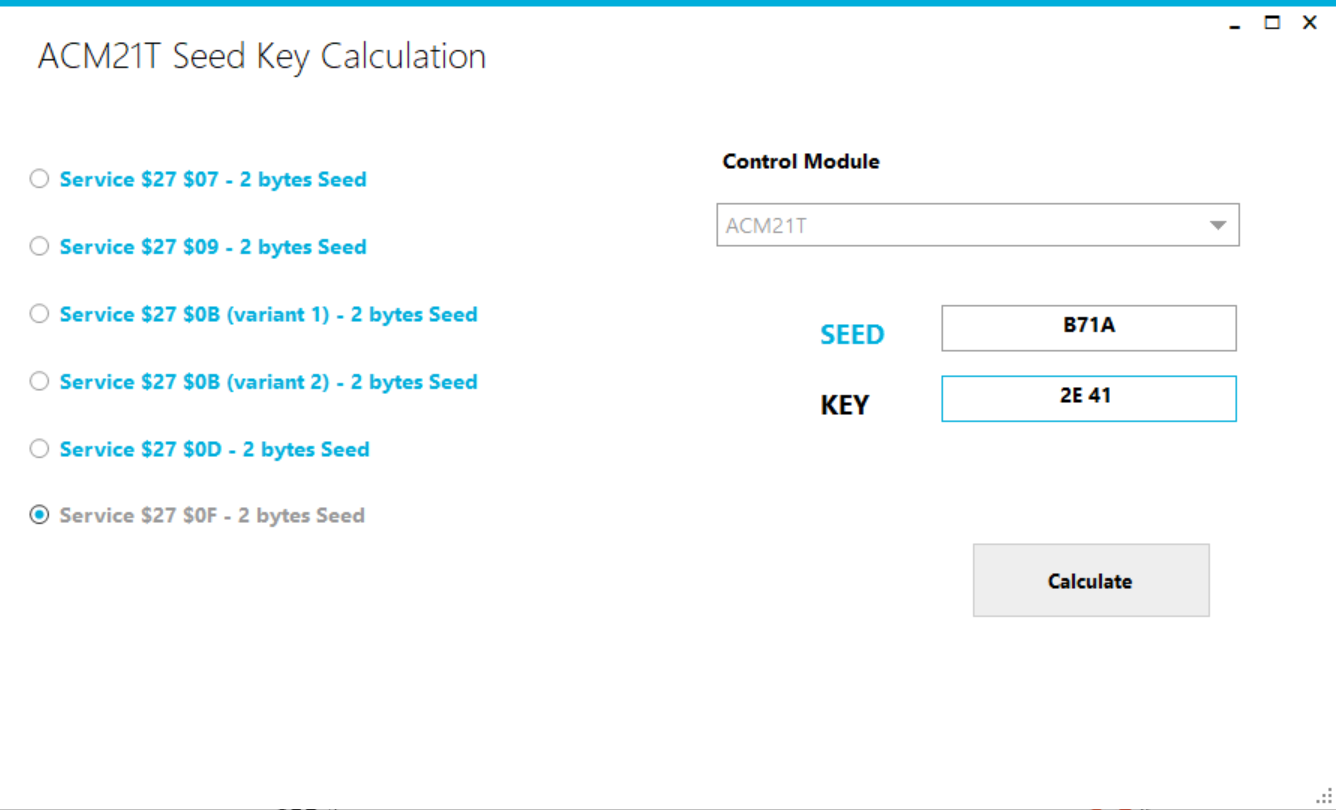

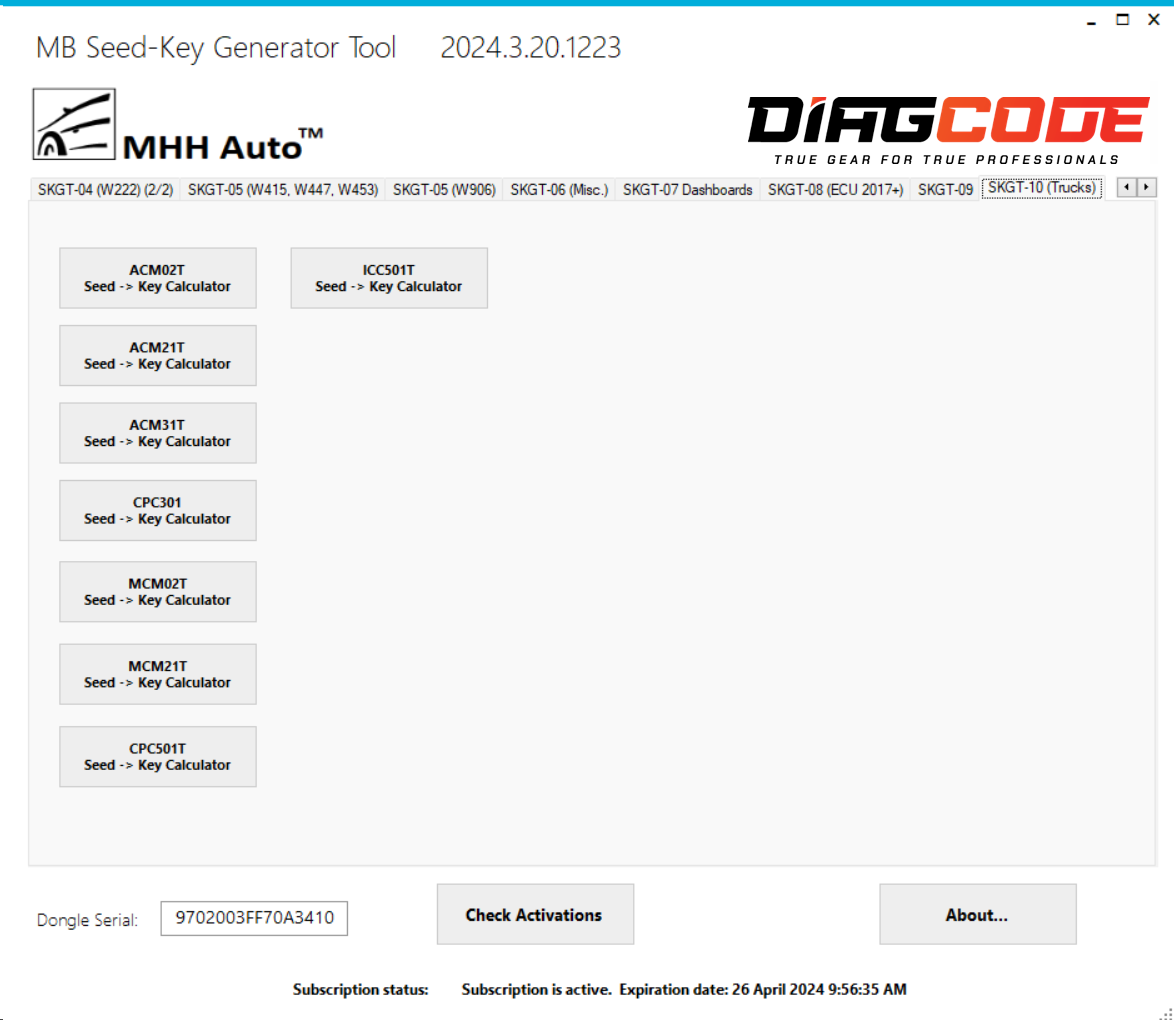

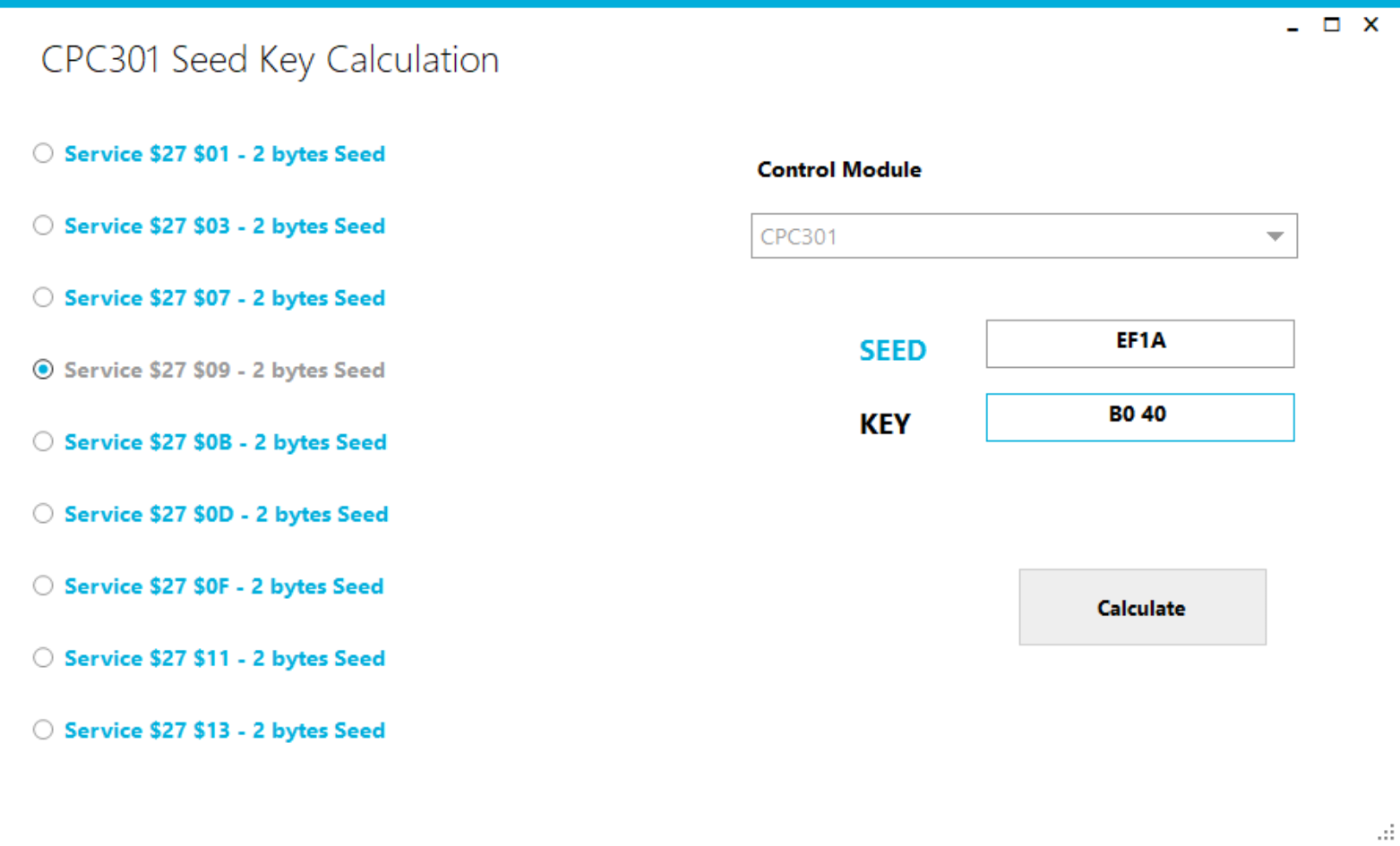

SKGT10 update - TRUCKS - MB Actros MP4 year 2011-2018, MB Actros MP5 2018+, Antos 2012-2019, Arocs 2012-2019, Atego 4 2014-2019, Atron 2013-2019, Axor 3 2011- 2013, Unimog 2014-2019, Econic2 2014-2014, Kaessbohrer snow groomers 2014-2019 also - Claas Arion and Axion tractors and harversters, and in lots of industrial engines for engine codes OM470/471/473 - Variant Coding, Changing EOL, Change Vmax parameters...

In this function are added Seed -> Key generation for different modules. For each module, the calculation of the algorithm is different. Can be: 

27 01, 27 03, 27 07, 27 09, 27 0B, 27 0D, 27 0F, 27 11, 27 13 – 2 bytes Seed 

665 euro

Trucks ONLY - SKGT Dongle + SKGT10 (Trucks) -> 715 euro

Order Now

After the first year, an annual subscription is payable.

Full version without Tucks (Main+02+03+04+05+06+07+08+09)

This include Main Package + SKGT02 + SKGT03 + SKGT04 + SKGT05 + SKGT06 + SKGT07 + SKGT08 + SKGT09

1100 euro

Order Now

After the first year, an annual subscription is payable.

SKGT99 Annual subscription after first year

 First Year's Subscription Inclusion: When you initially purchase the product, the cost covers the subscription for the first year. This means that for the first year after purchase, you don't need to make any additional payments for the subscription. It's included in the price of the product.

 Subscription Renewal: After the first year, the included subscription period expires. To continue using the product and its associated services, you'll need to renew the subscription annually. This renewal is required for each subsequent year.

 Fixed Price: Regardless of the number of times you activate or use the product within a year, the price for the annual subscription remains constant. This means that whether you activate the product once or multiple times throughout the year, the cost to renew the subscription for the following year will remain the same.

To put it simply, when you purchase the product, you get the first year's subscription included. After that initial period, you'll need to pay a fixed price each year to keep using the product, regardless of how many times you activate it within that year.

200 euro

Order Now

(the price is fixed no matter the number of activations)

Here you can see videos, how our software works real

Vediamo and SKGT Change Variant Coding-CRD2

W204 AMG activation with Vediamo and SKG

Vediamo and SKGT Change Variant Coding

All prices are exclusive of VAT and delivery charges
