Extreme FBS4 DSM/DSM222 Tool

      We understand the logistical, customs, and tax challenges that many of our customers face when sending DSM, DSM222, and FBS3 units for service. In response to these difficulties and the increasing demand for a more efficient solution, we are proud to introduce our innovative Extreme FBS4 DSM Tool software.

This advanced software is designed to make work with FBS4 DSM, DSM222, and FBS3 units faster, easier, and more reliable for all users.

For maximum convenience, the software is fully compatible with J2534 hardware. We strongly recommend using CANtieCAR hardware, as it will be the ONLY interface supported in all future Extreme FBS4 Tool product releases.

The software has undergone extensive testing and provides stable communication when used with OpenPort 2.0 and CANtieCAR. We cannot guarantee reliable operation with other J2534 devices; therefore, we advise using one of these two fully tested interfaces—preferably CANtieCAR

Functions works with Open Port 2.0 or any CANtieCAR hardware:

 No Opening Required

 No Cutting Needed

 No Soldering Necessary

 Seamless, Diagnostic-Based Data Transfer

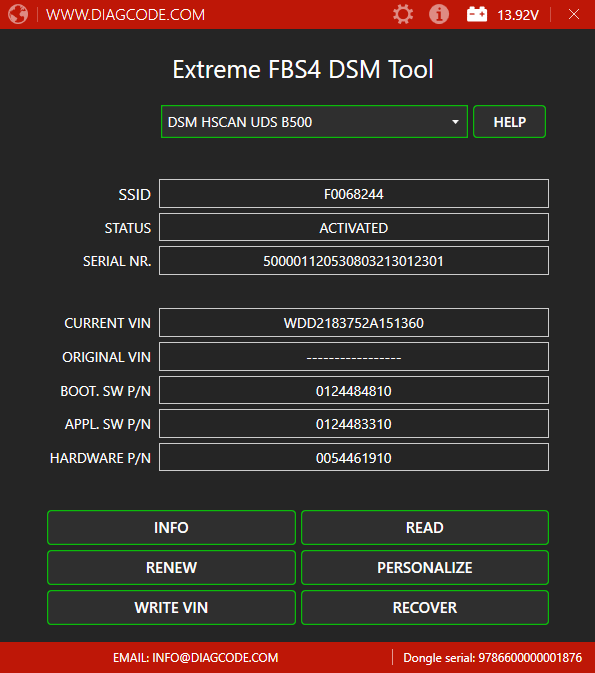

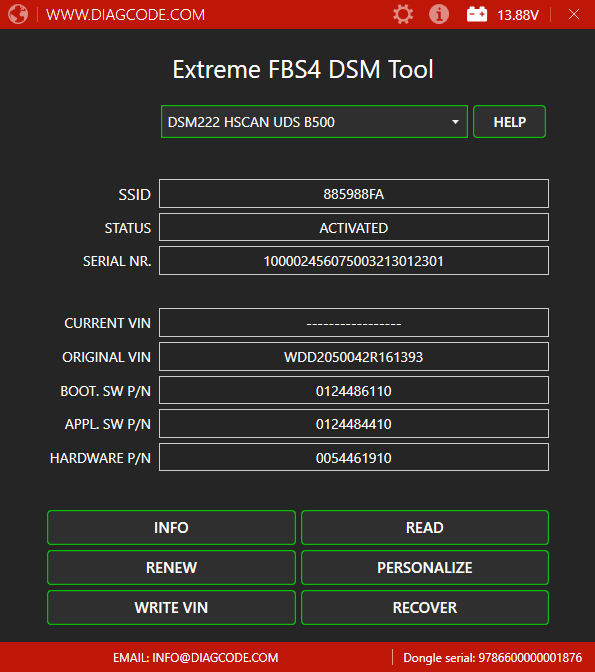

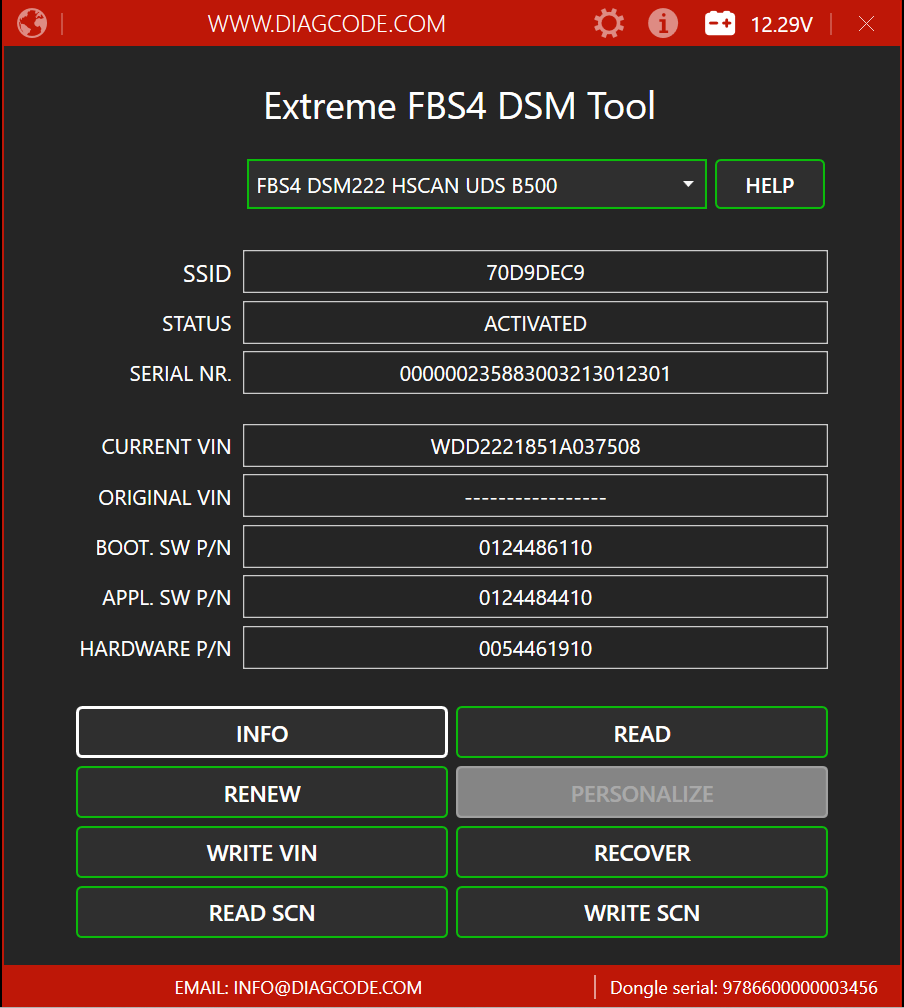

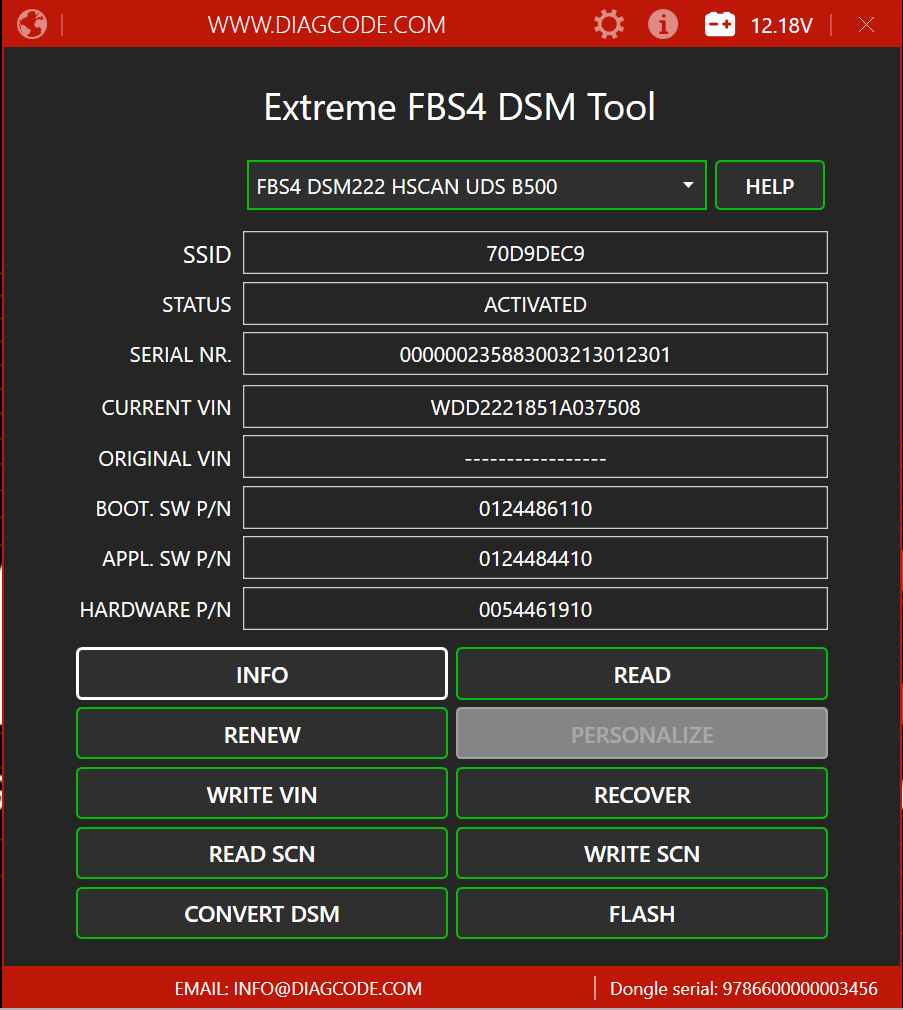

 Automatic Identification via CANBUS — Instantly detects DSM/DSM222 Model, Variant & Type (FBS3 / FBS4)

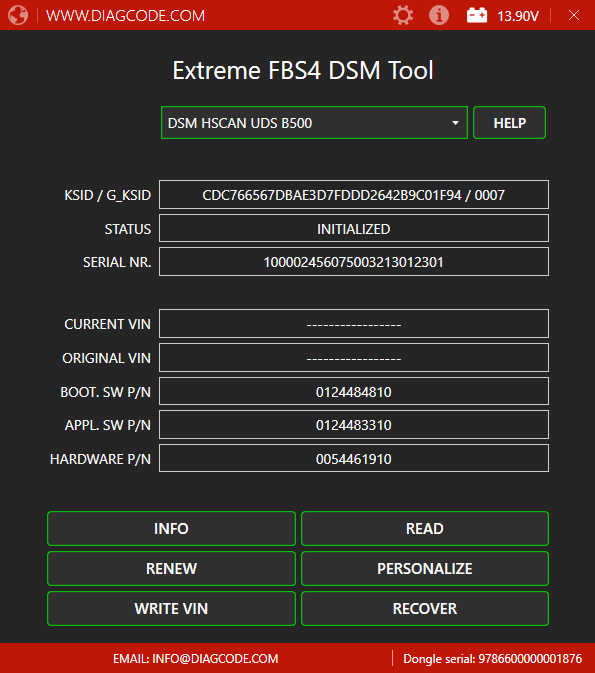

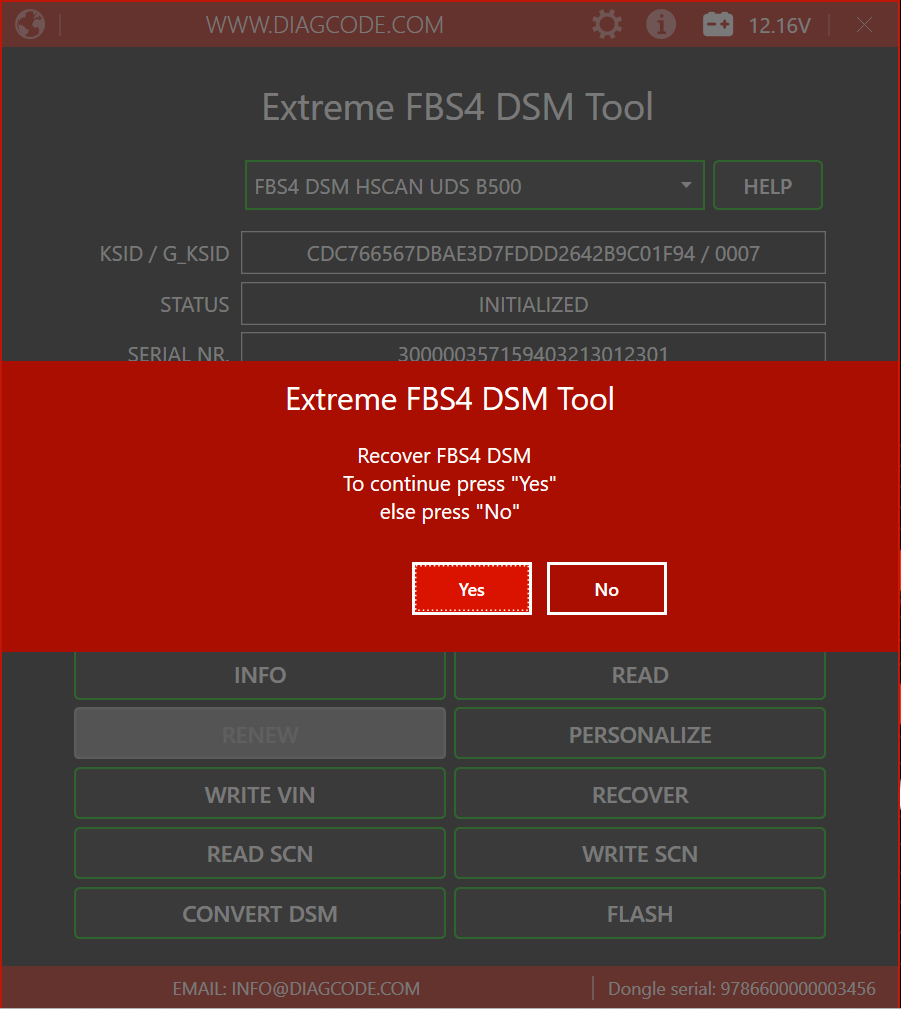

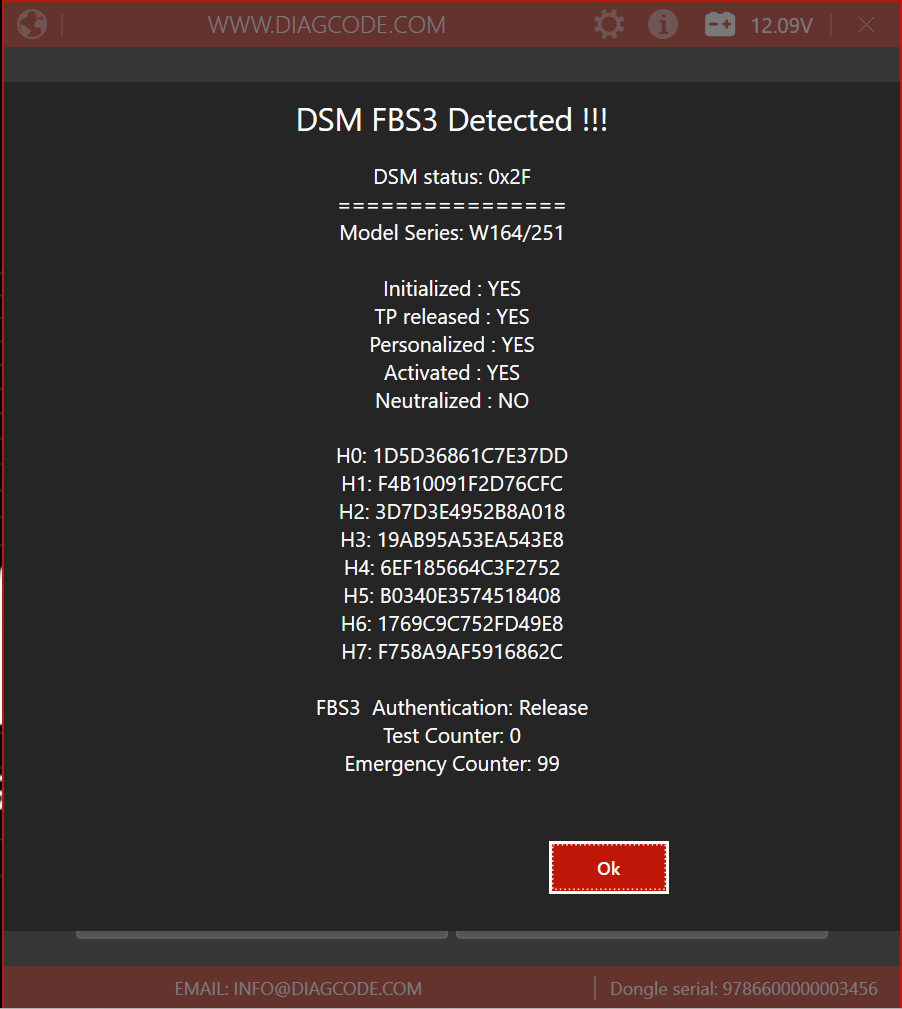

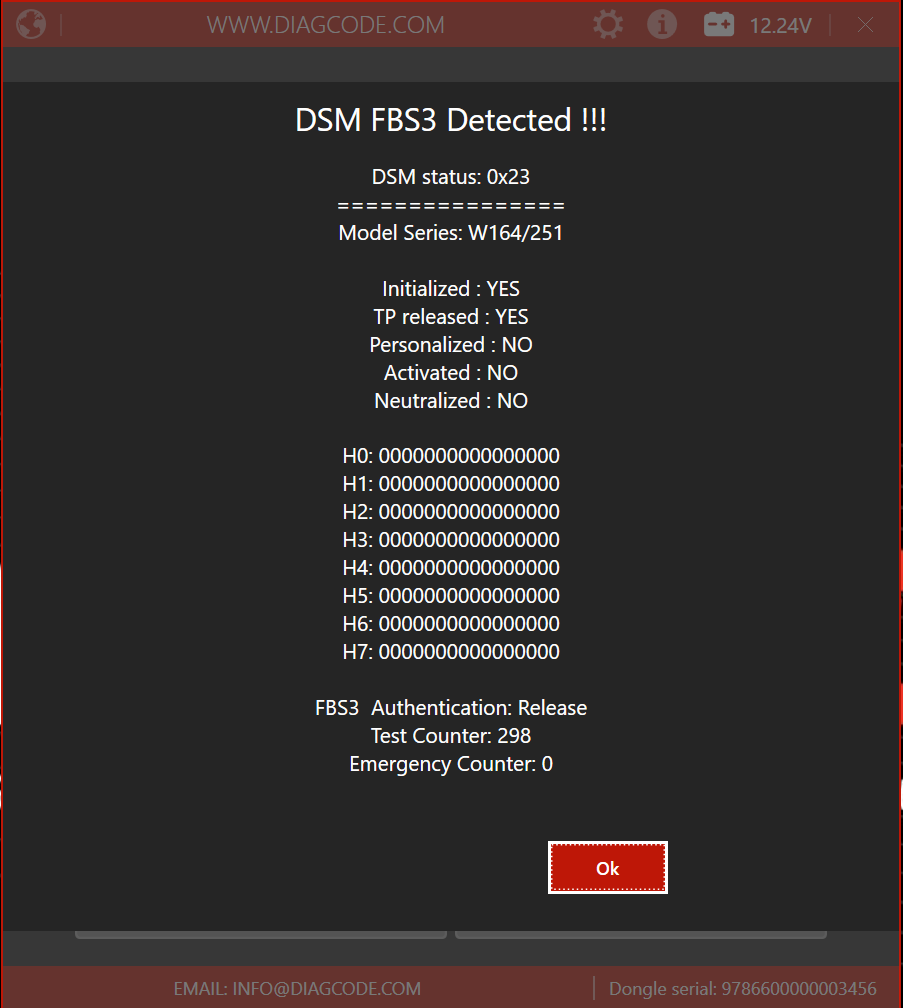

 Full FBS3 Continental DSM Support via CANBUS — READ / RENEW / PERSONALIZE / WRITE VIN / RECOVER — all without opening

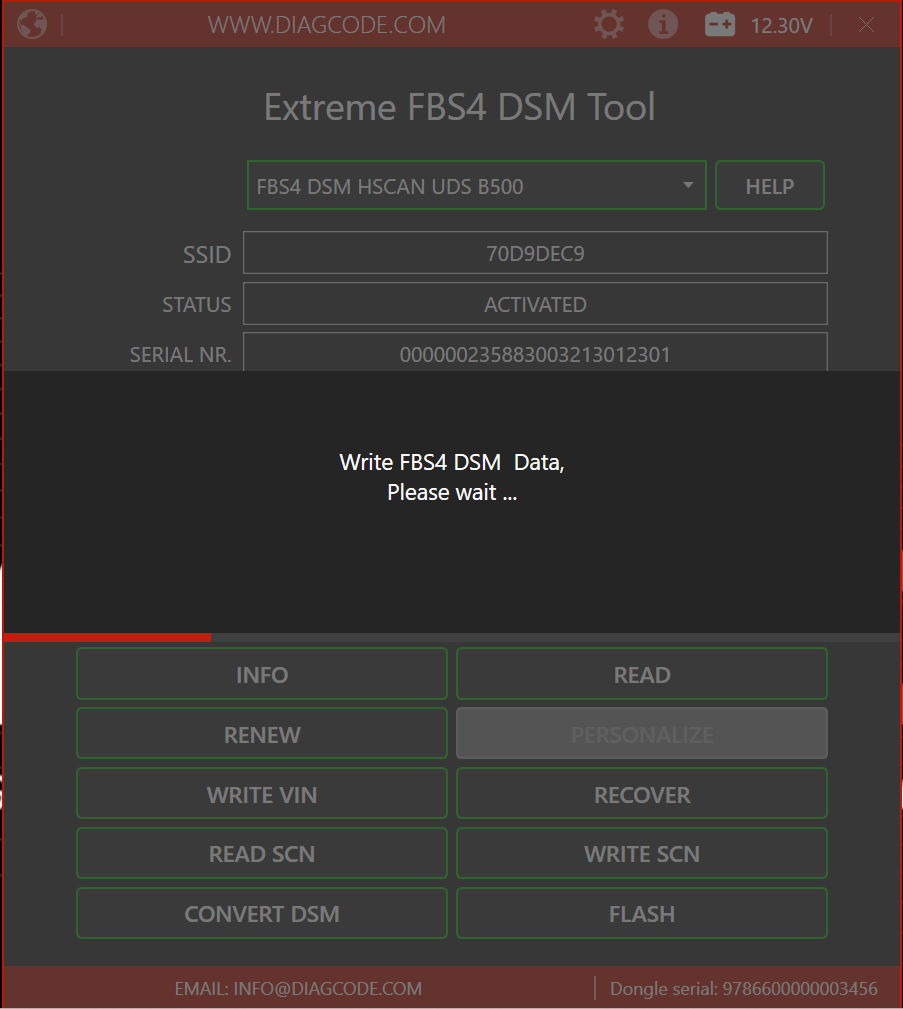

 Data Transfer from Original DSM/DSM222 to Donor DSM/DSM222 (No Cloning)

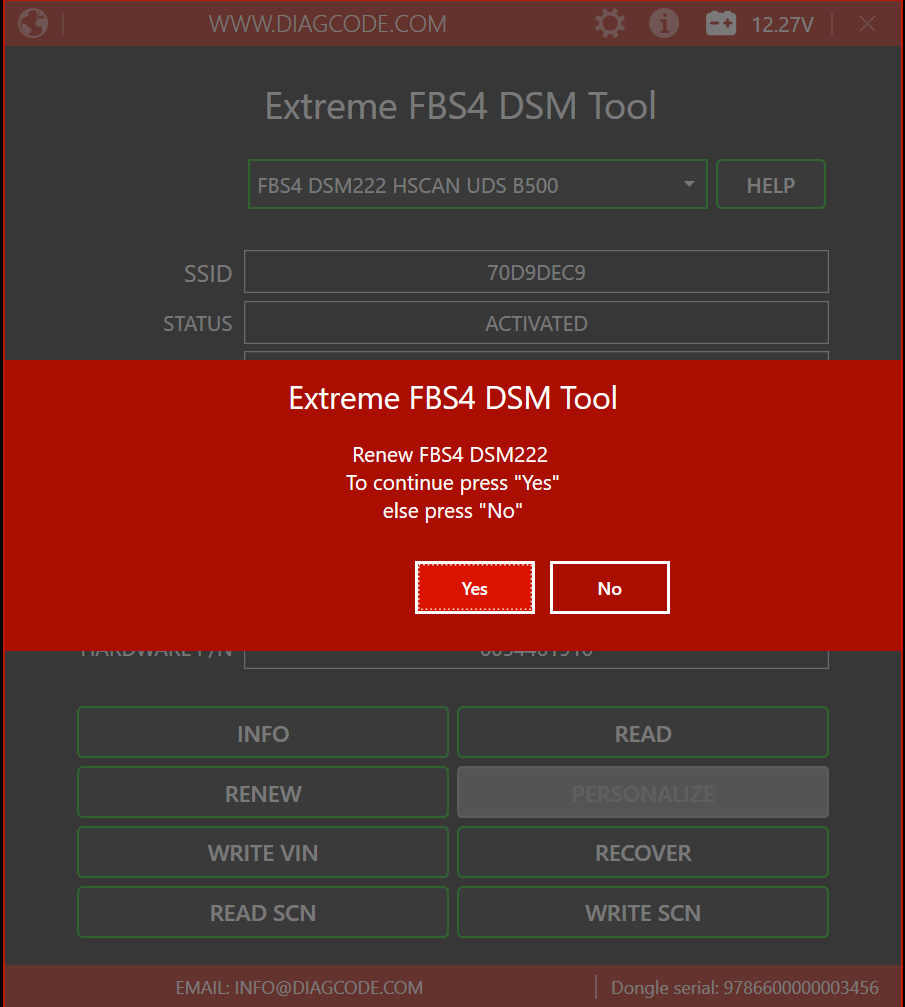

 DSM/DSM222 Renew option

 Reset Emergency Counter (P179D85 / P179D00) — 100% safe reset for all FBS3/FBS4 DSM modules via CAN

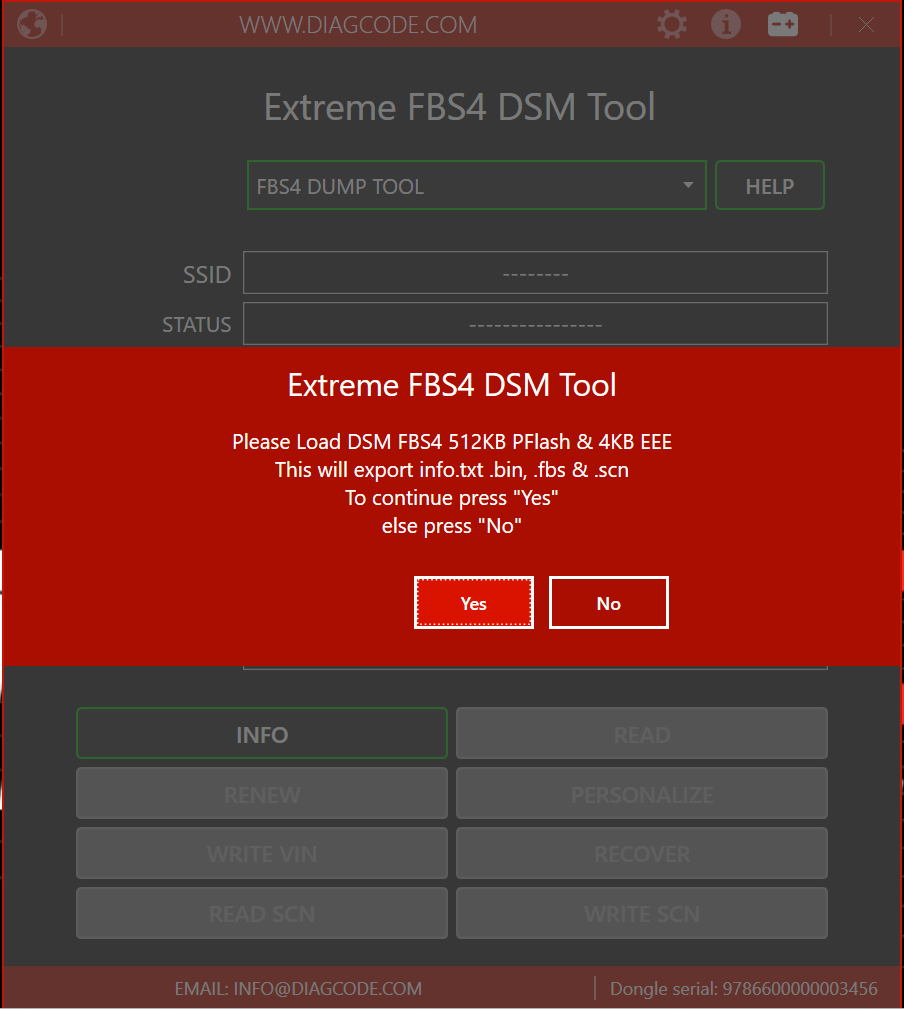

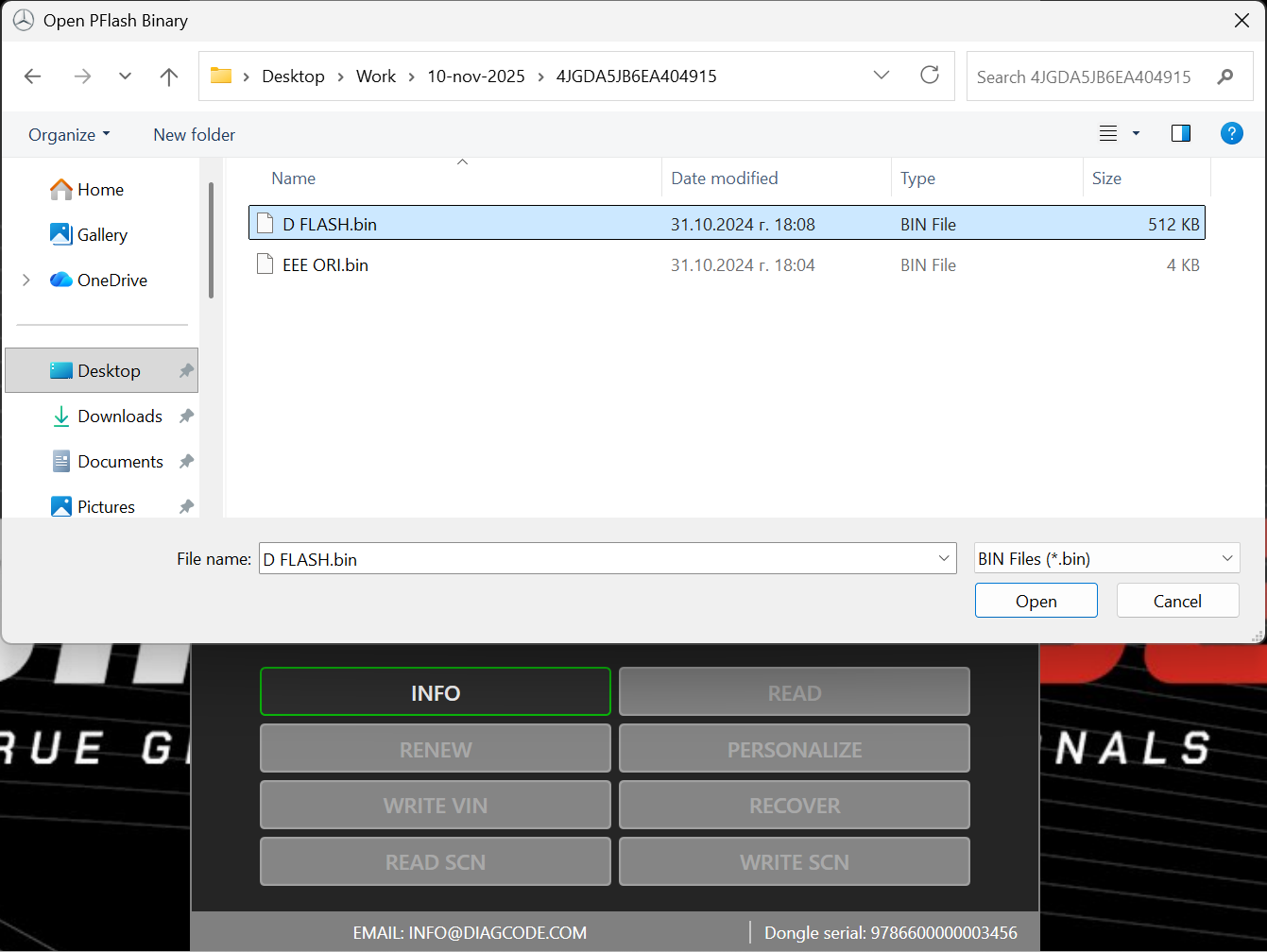

 Dump Tool — Recover full DSM/DSM222 data even when communication via CAN isn’t possible.
 Export .fbs, .scn, and Recovery.bin files directly from MCU dump, plus detailed system info

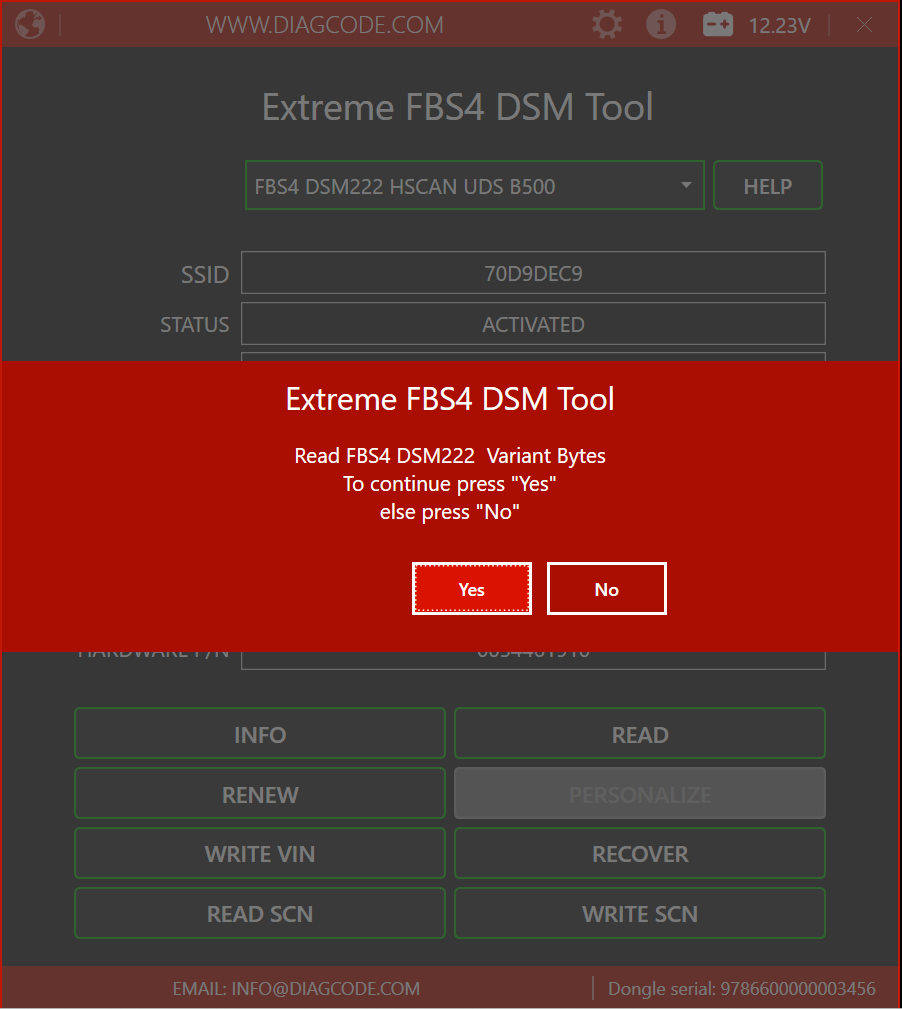

 Read & Write Variant Coding — Save and restore .scn configuration files in seconds

 Dump Tool — Recover full DSM/DSM222 data even when communication via CAN isn’t possible.
Export .fbs, .scn, and Recovery.bin files directly from MCU dump, plus detailed system info

 Works with Pass-Thru J2534 hardware

Functions works with CANtieCAR - Diagcode edition hardware:

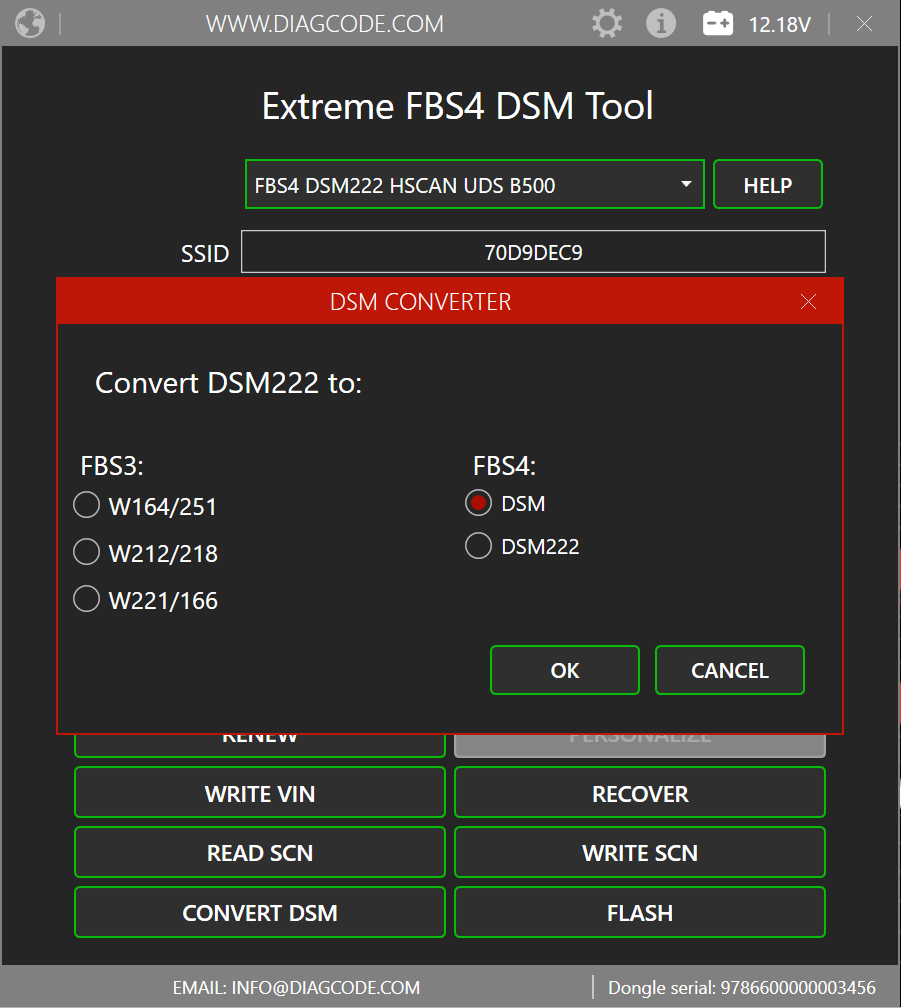

 Convert any Continental FBS3 DSM to any FBS4 DSM/DSM222 and Vice versa all via Canbus " WITHOUT OPENING "

 Ability to Solve FBS4 DSM/DSM222 with Corrupt EEE via Canbus ( Often occurs due to unstable battery voltage " P179A77 / P179D00 " )

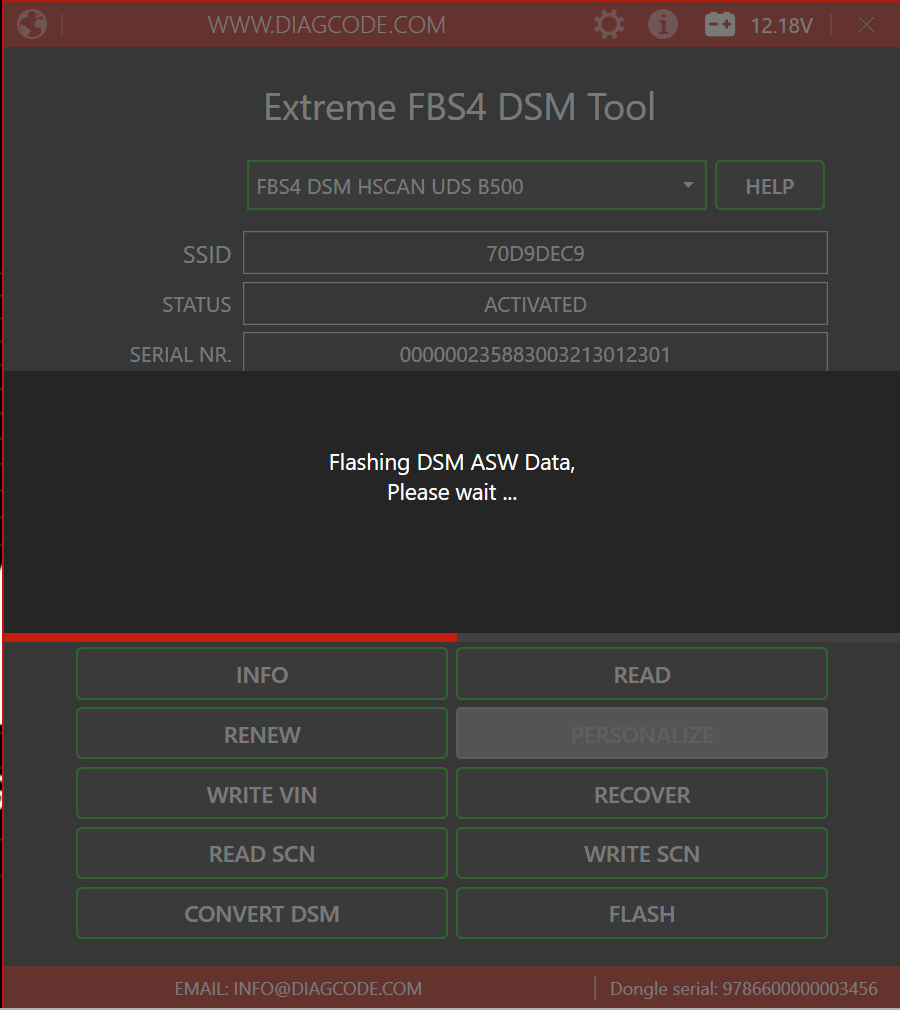

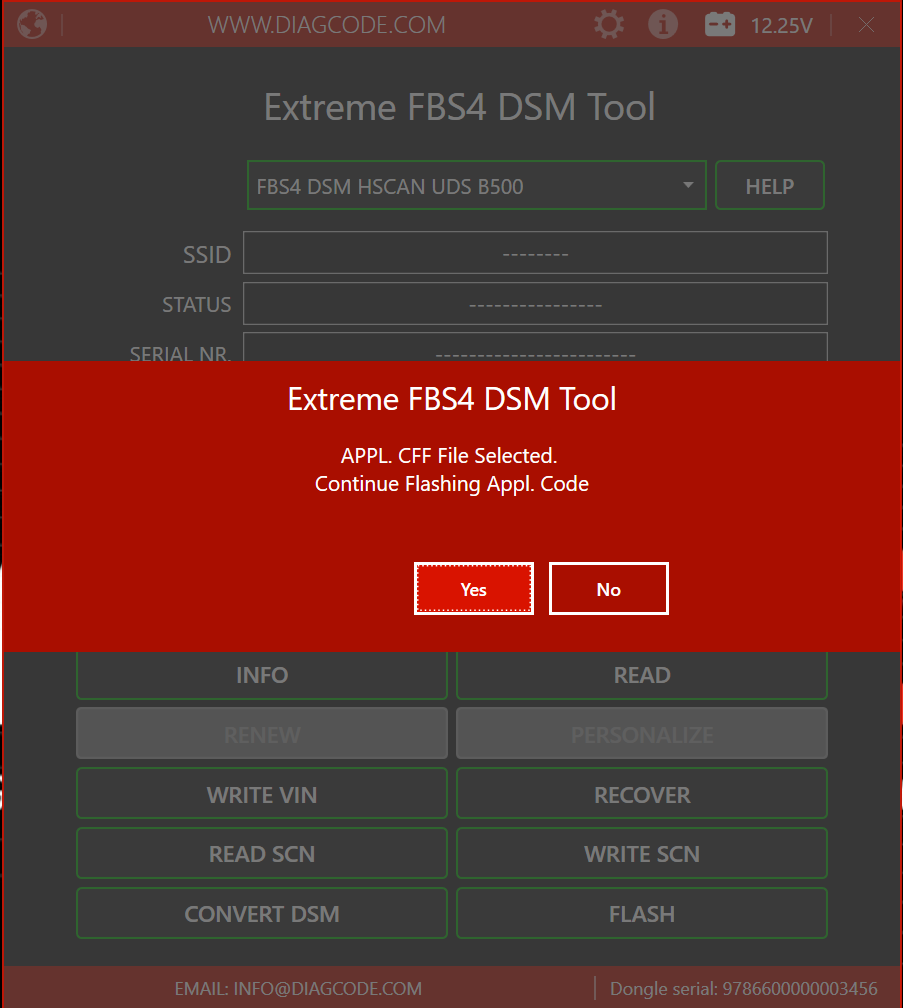

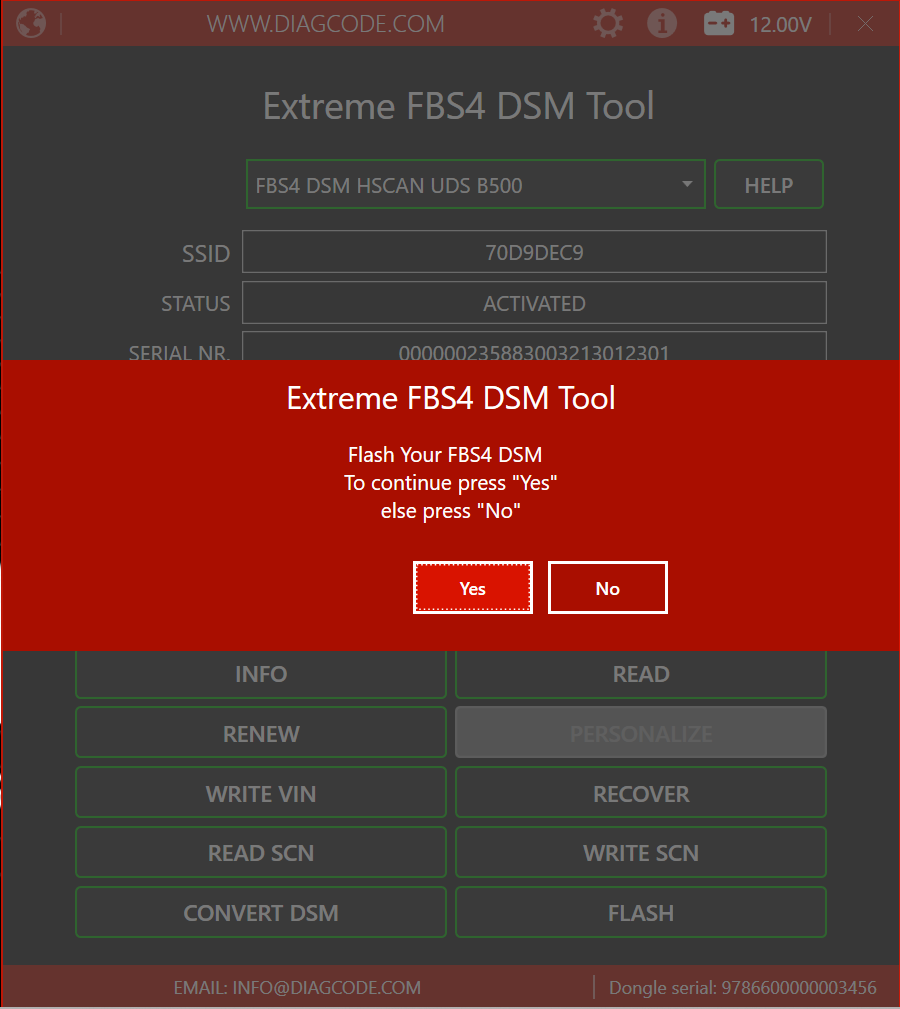

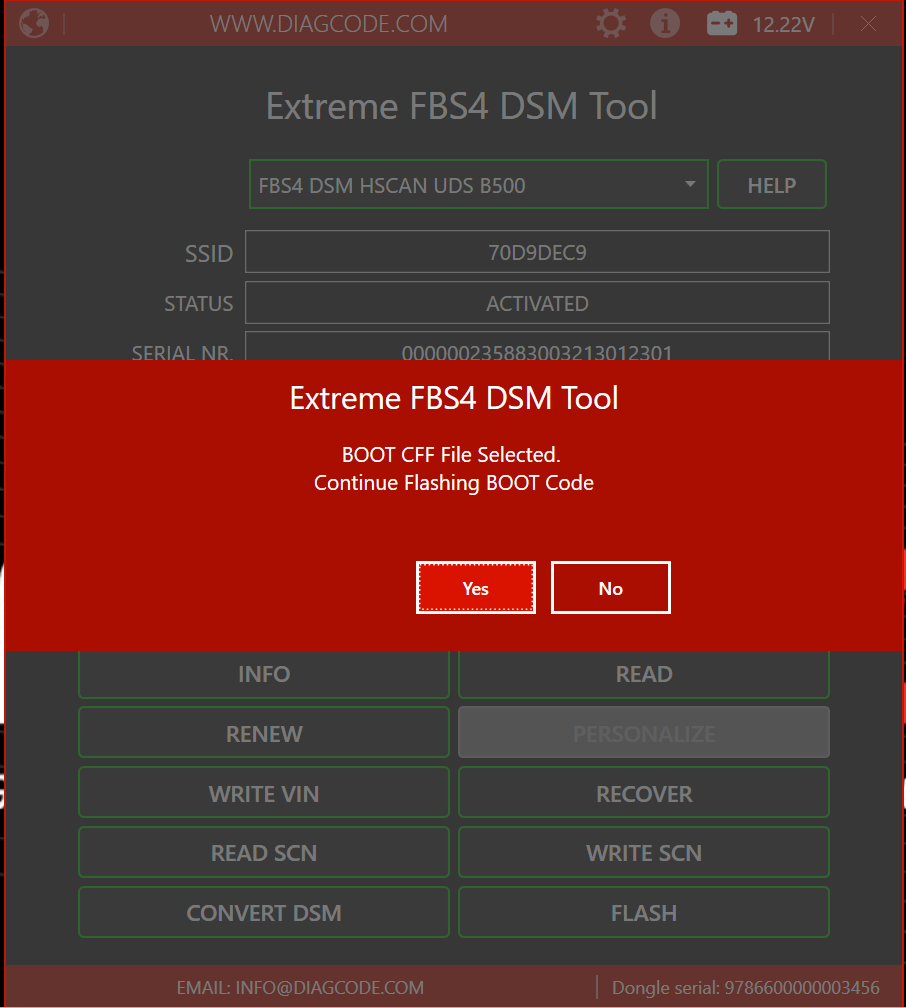

 Flash Programming via Canbus - Flash any FBS3/FBS4 DSM/DSM222 using OEM CFF files ( BOOT and Application )

PRICES:

 Extreme FBS4 DSM Tool -> 1250 euro (You need J2534 hardware to use the software)

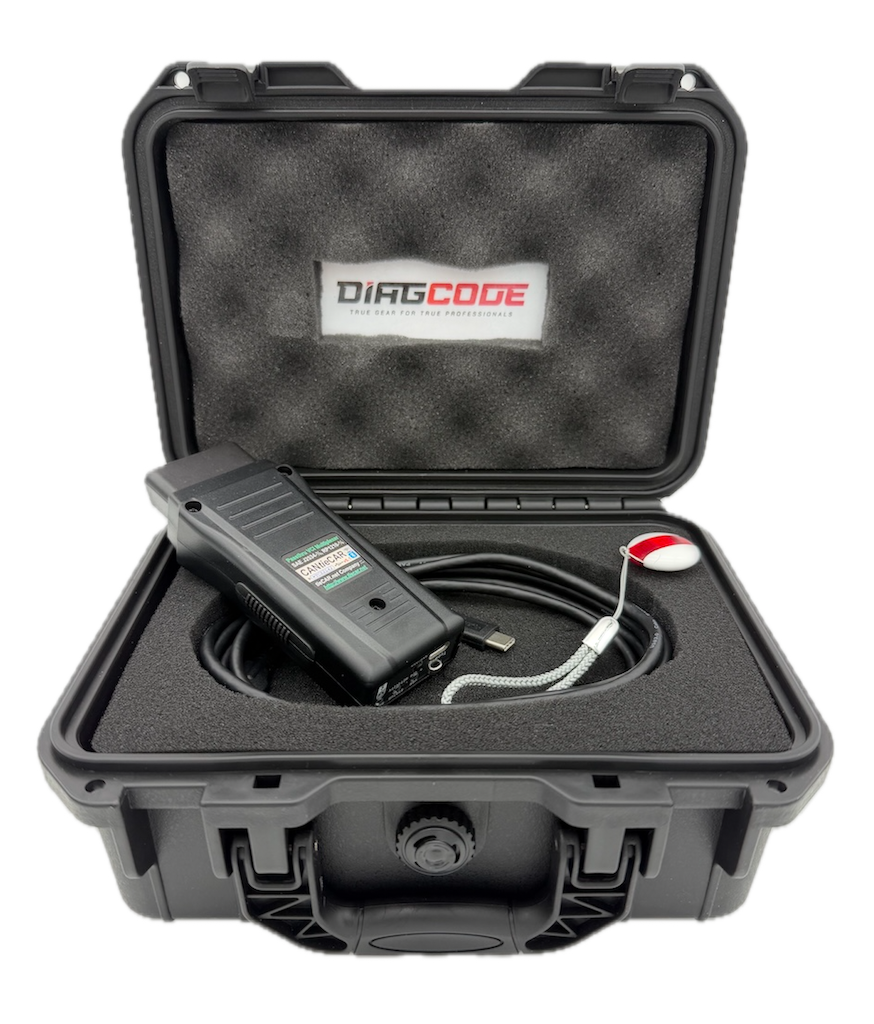

 Premium DSM Functions -> Only with CANtieCAR™ from Diagcode -> 250 euro

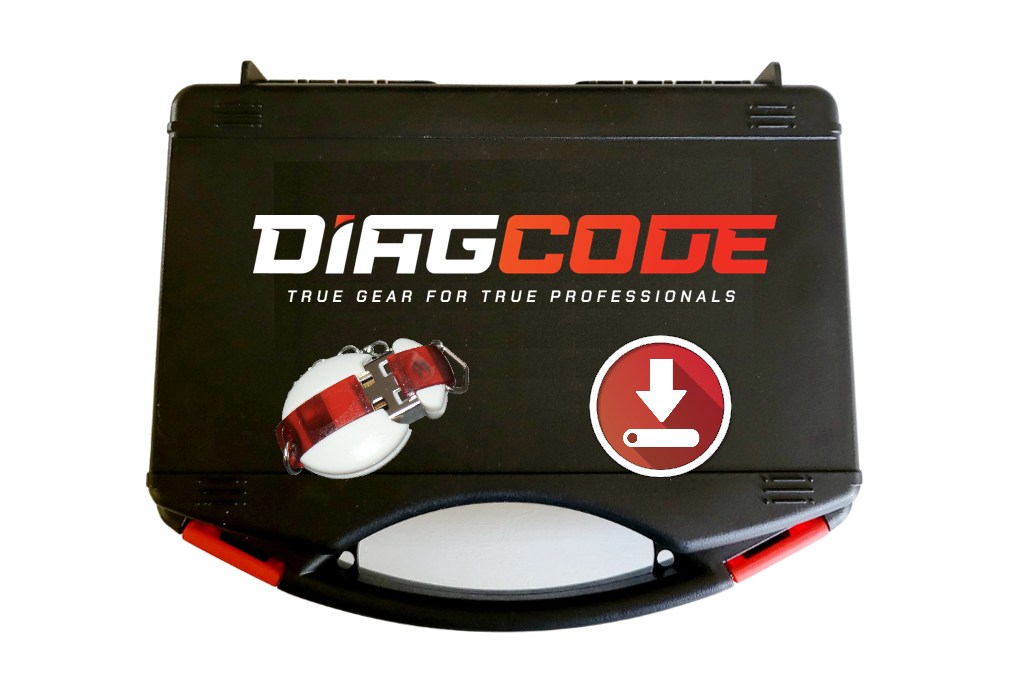

Security dongle -> 50 euro

Annual subscription -> 190 euro

Order Now

All prices are exclusive of VAT and delivery charges

* This software works with Extreme MB Tool and Extreme FBS4 ESL Tool dongles. If you already have this software, you don't need to buy a new dongle. Also, the subscription is one for all (three) software.
** As with all our Extreme products, Software updates are " FREE ". We do not charge for any SW updates

*** This price includes a subscription valid for 365 days from the date of purchase. A subsequent subscription fee is payable after the first year has expired.



Supported Units:

FBS4 DSM:

  • Part Numbers: A0002703252, A0002703352, A0002703452
  • Models: W166, C207, W212, W218, C292, W447

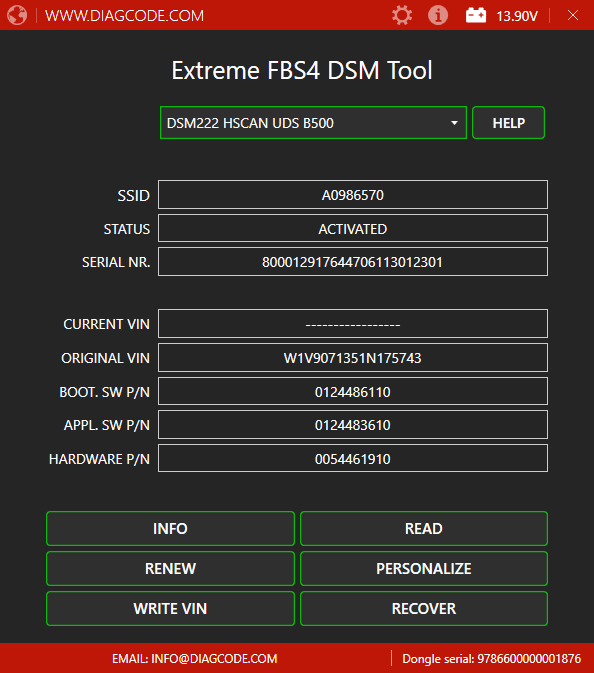

FBS4 DSM222:

  • Part Numbers: A0002704252, A0002704452, A0002704652
  • Models: W205, C217, W222, W907, W910
