McLaren Automotive diagnostic software - FULL version - unlimited VIN
We are pleased to present the latest software to our range - McLaren Automotive Diagnostic Software. Specially designed for our customers who work with high-end sports cars in their workshops. The software very friendly user with straight forward functions. As you already know, our software constantly updates automatically.
We have updated our minimum system requirements in order to keep up with the latest technologies. Our software requires minimum Windows 7 with Service Pack 1 installed And .NET minimum version 4.7.2.
We also offer delivery of original spare parts
Currently supported models are:
Super Series: 12C Coupe/Spider - 2011-2014
625C Coupe/Spider - 2014-2016
650S Coupe/Spider - 2014-2016
675LT Coupe/Spider - 2015-2017
720S Coupe/Spider - 2017-2022
765LT - 2020+
Ultimate Series: P1 - 2013-2015
Senna, Senna GTR - 2019-2022
Elva - 2020+
Sports Series: 540C - 2016-2022
570S Coupe/Spider - 2015-2022
570S GT - 2016-2022
570S Sprint/GT4 - 2016-2022
600LT Coupe/Spider - 2018-2022
620R - 2020+
Sport grand tourer series: GT - 2019-2022
Hybrid Sports Car: Speedtail - 2019-2022
Current version of McLaren Diagnostic software include:
1 - Automatic model recognition
2 - Scan the available modules in the vehicle
3 - Connect and diagnose all available modules in the vehicle
4 - Reading the identification, software, hardware, serial numbers from the modules, reading identification number (VIN)
5 - Read and erase DTCs
6 - Detailed display of DTCs
7 - Read freeze frame data (faults recorded by time ,milage , speed , date , time etc )
8 - Actual values (dynamic real-time values of systems / sensors)
9 - Actuators (testing actuators such as window motors, lights, fans, injectors , seats etc )
10 - Reset service intervals/Guided Functions
11 - Activate/De-activate Transport Mode
12 - Activate/De-activate DYNO mode - 2WD/4WD
13 - Read and program VIN on modules
14 - Key Learning (Add key only)
15 - Reprogramming/Re-flashing of modules. All supported models so far can reflash these modules: ECU, BC, CRCM, DML, DMR, HVAC, SBC, TPMS, EPHS, EPB, SAS, PCCU, TCU, PDC (need to have Reflash Box hardware)
All software with an active subscription have automatic updates (after starting the software and connected to the Internet, the software will be upgraded to the latest version).
* Subscribed customers will receive our updates regularly
* Updates include the addition of new units, new functionalities and when possible new car models of this brand
* Professional support, including a guide to solve a problem or to implement some special functionality
* A tool with an expired subscription will not receive updates and the above benefits
- Automatic model recognition or Model selection
- Scan the available modules in the vehicle and clear all DTCs
- Connect and diagnose all available modules in the vehicle
- Reading the identification, software, hardware, serial numbers from the modules, reading identification number (VIN)
- Read and erase DTCs. Detailed display of DTCs
- Actuators
- Actual Values
- Read DTCs with Freeze Frame Data
- Key learning
- Fine Tune Zero Position
- Read/Write/Reset service intervals
- Read and program VIN on modules
- Activate/De-activate Transport Mode
- Activate/De-activate DYNO mode - 2WD/4WD
- Reprogramming/Re-flashing* All supported models so far can reflash these modules: ECU, BC, CRCM, DML, DMR, HVAC, SBC, TPMS, EPHS, EPB, SAS, PCCU, TCU, PDC

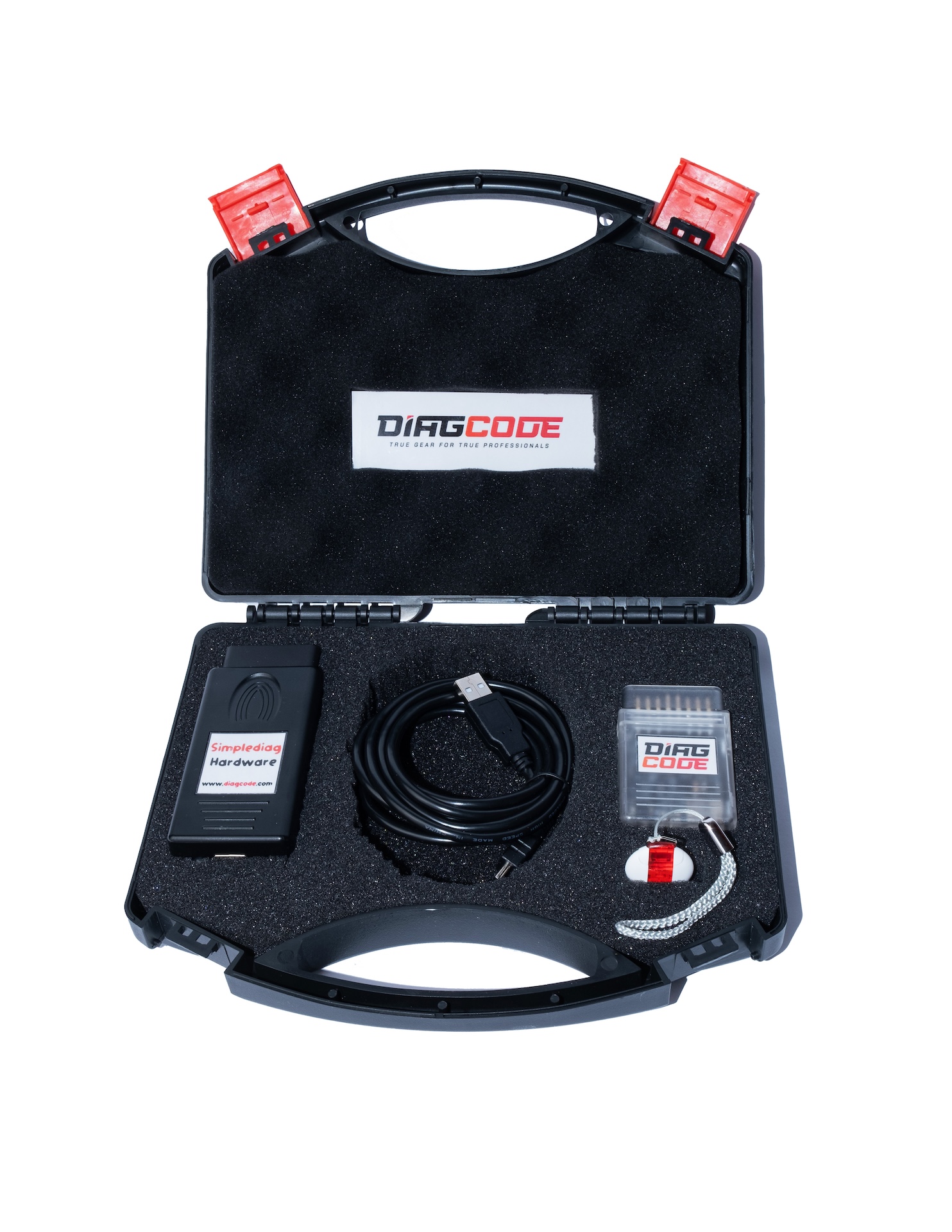

*Reflash Box J2534 device is required in addition to Simplediag interface
For the different models, we offer the following special features:
Engine Control Unit (ECU):
- Un-pair immobilizer
- Secondary Air Diagnosis
- Clear Misfire adaptations
- Start throttle adaption
- Save throttle adaption
- DMTL Diagnostic Module Tank Leakage Test
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Set Configuration Defaults
- Menu Disable
Occupant Restraints Controller (ORC):
- Configure Occupant Classification System
Switch Control Unit Gateway (SCUG):
- Steering Column Manual Move
- Steering Column Calibration
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Security Body Controller (SBC):
- Key Learn
- Key Test
- Un-pair immobilizer
- Alarm History
- LF Antenna Continuity Test
- Align Vehicle Configuration
- Read ECU Configuration
- Set ECU Configuration
Door Module Left (DML):
- Align Vehicle Configuration
- Window Calibration
Door Module Right (DMR):
- Align Vehicle Configuration
- Window Calibration
Seat Control Module Left (SCML):
- Align Vehicle Configuration
- Seat Calibration
Seat Control Module Rigth (SCMR):
- Align Vehicle Configuration
- Seat Calibration
Tyre Pressure Monitoring System (TPMS):
- Learn Car Wheels
Body Control Module (BCM):
- Align Vehicle Configuration
- Parking Sensor Diagnostic Activation
Head Unit (HU):
- Align Vehicle Configuration
— Head Unit Configuration
— Country selection options: Australia,Austria,Bahrain,Belgium,Canada,China,France,Germany,Hong Kong,Italy,Japan,South Korea,Kuwait,Malaysia,Mexico,Netherlands,New Zealand,Qatar,Saudi Arabia,Singapore,Spain,Switzerland,Taiwan,Thailand,UK,United Arab Emirates,USA
— Vehicle equipment options:
FM/AM
FM/AM/DAB
FM/AM/SXM
— Rear view camera options:
Fitted
Not Fitted
— Navigation options:
Enable
Disable
Electronic Parking Brake (EPB):
- Align Vehicle Configuration
- EPB Caliper Open
- EPB Caliper Closed
- G-Sensor Calibration
- Assembly Check
- Factory Customer Mode Configuration
Powertrain and Chassis Control Module (PCCU):
- Un-pair immobilizer
- Air Brake Calibration and Bleed
- Align Vehicle Configuration
- Dual Clutch Calibration
- APMU Maintenance Start
- APMU Maintenance Finished
- APMU Sensor Calibration
- Clear Gear Adaptations
- Airbrake Contamination Cleaning
- Exhaust Valve Learn Routine
- Kinetic Damping System Pressure Sensor Check
- Vehicle Lifter Assembly Check
- Vehicle Lifter Sensor Calibration
- Suspension Displacement Sensor Calibration
Electronic Stability Program (ESP):
- 2 Wheel Dynomode Activation/Deactivation
- Yaw Rate Sensor Calibration
- Brake Bleed Routine
Convertible Roof Control Module (CRCM):
-Reset Roof Compensation
- Set Cobra position in car
Heating Ventilation Air Conditioning (HVAC):
- Hardware configuration
- HVAC Sensor Electrical Test
1. Vehicle Market:
- Australia
- Canada
- China
- Europe
- Gulf States
- Japan
- Quatar
- ROW
- Russia
- Switzerland
- USA
2. Front Auxiliary Light Option
- Front Driving, LED
- Front Fog, LED
- Not fitted
3. Voice Activation Available
- Available
- Not available
4. Driver Seat Option
- Electric, 3 axis adjustment
- Fixed seat, no adjustment
- Mechanical, 3 axis adjustment
- Not fitted
5. Passenger Seat Option
- Not fitted
- Fixed seat, no adjustment
- Mechanical, 3 axis adjustment
- Electric height adjustment
- Electric 3 axis adjustment
6. Battery Type
- Lithium Ion, H8
- Lithium Ion, H6
- Lead Acid H8
- Lead Acid H6
- Default
7. Exhaust Type
- Standard, no valve control
- Sports, pneumatic valve control with position
8. TPMS Fitted
- Not fitted
- Fitted
9. Rear Brake Type
- Iron 350 x 30
- CCM 388 x 32
10. Front Brake Type
- Iron 370 x 32
- CCM 394 x 36
11. Garage Control Available
- Not available
- Available
12. IRS Alarm Available
- Not available
- Available
13. Tracker Available
- Not available
- Available
14. Windscreen Type
- Normal
- Heat Reflective
15. Amplifier Type
- Not fitted
- Low line
- High line
16. Head Unit Type
- Not fitted
- Low line
- High line
17. Rear Mirror EC Control Available
- Not available
- Available
18. Bluetooth Telephony Available
- Not available
- Available
19. Navigation Available
- Not available
- Available
20. Parking Sensors Fitted
- Not fitted
- Rear only
- Front and rear
21. Voice Activation Available
- Not available
- Available
Engine Control Unit (ECU):
- Un-pair immobilizer
- Un-pair immobilizer
- Secondary Air Diagnosis
- Clear Misfire adaptations
- Start throttle adaption
- Save throttle adaption
- DMTL Diagnostic Module Tank Leakage Test
Motor Control Unit (MCU):
- HDA Clutch Operation
- Resolver Learn
- Clear Power Consistency Buffer
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
Security Body Controller (SBC):
- Key Learn
- Key Test
- Un-pair immobilizer
- Alarm History
- LF Antenna Continuity Test
- Align Vehicle Configuration
- Read ECU Configuration
- Set ECU Configuration
Body Control Module (BCM):
- Align Vehicle Configuration
Door Module Left (DML):
- Align Vehicle Configuration
Door Module Right (DMR):
- Align Vehicle Configuration
Head Unit (HU):
- Align Vehicle Configuration
Electronic Parking Brake (EPB):
- Align Vehicle Configuration
Transmission Control Unit (TCU):
- Emergency Wing Lift
- Active Aero Rear Self Test
- Active Aero Rear Calibration
- Active Aero Rear Bleed
- DSI
- Launch Torque - Data Counter Reset
- Align Vehicle Configuration
- Active Aero Rear Service Position
- Active Aero Rear Depressurisation
- Transmission Valve Cleaning
- Transmission Replacement Reset
- Un-pair Immobilizer
- Dual Clutch Calibration
Chassis Control Unit (CCU):
- APMU Maintenance Start
- Align Vehicle Configuration
- Electric water pump test
- Accelerometer Sensor Calibration
- Suspension Calibration
- Suspension Pressure Sensor Calibration
- Front Active Aero Calibration
- Wheel Alignment and suspension check
- Vehicle lift control
Engine Control Unit (ECU):
- Un-pair immobilizer
- Secondary Air Diagnosis
- Clear Misfire adaptations

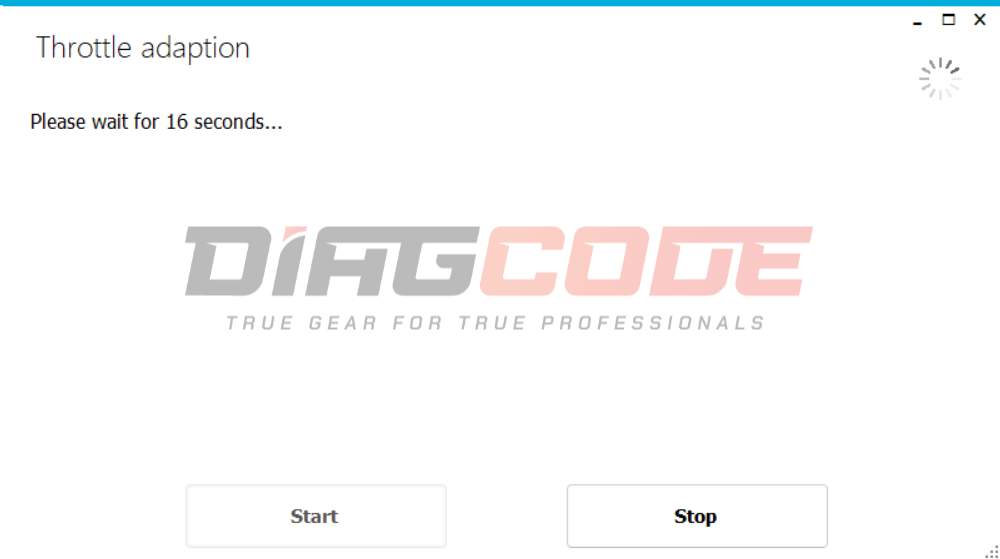

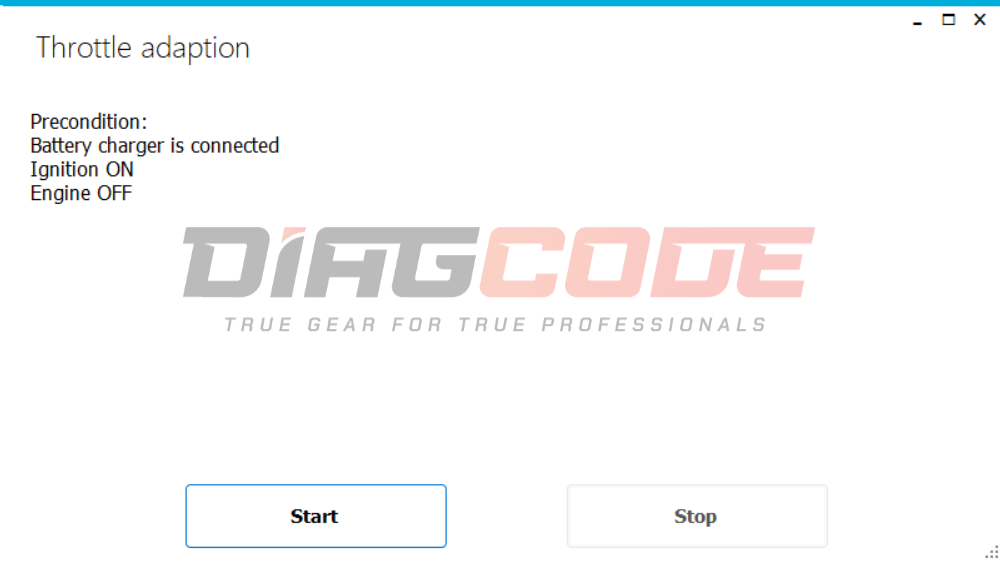

- Throttle adaption
- Cam Control Diagnosis
- Catalytic Converter Diagnosis
- Purge System Diagnosis
- DMTL Diagnostic Module Tank Leakage Test
Occupant Restraints Controller (ORC):
- Configure Occupant Classification System
Switch Control Unit Gateway (SCUG):
- Steering Column Manual Move
- Steering Column Calibration
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Transport mode
- Set configuration defaults
- Engine Coolant Temperature Gauge Calibration
- Menu Disable
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Security Body Controller (SBC):
- Key Learn
- Key Test
- Un-pair immobilizer
- Alarm History
- LF Antenna Continuity Test
- Align Vehicle Configuration
- Read ECU Configuration
- Set ECU Configuration
Door Module Left (DML):
- Align Vehicle Configuration
- Window Calibration
Door Module Right (DMR):
- Align Vehicle Configuration
- Window Calibration
Seat Control Module Left (SCML):
- Seat Calibration
Seat Control Module Rigth (SCMR):
- Seat Calibration
Body Control Module (BCM):
- Align Vehicle Configuration
- Parking Sensor Diagnostic Activation
Head Unit (HU):
- Align Vehicle Configuration
- Head Unit Configuration
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Yaw Rate Sensor Calibration
- Carbon Ceramic Matrix CCM brake disc condition
- EPB Assembly Check
- EPB Caliper Usage Reset
- Brake Bleed Routine
Powertrain and Chassis Control Module (PCCU):
- Align Vehicle Configuration
- Clear Gear Adaptations
- Un-pair immobilizer
- Dual Clutch Calibration
- Set ECU Configuration
- Nose Lift Maintenance
- Nose Lift Sensor Calibration
- Extended Snapshot Data
- Hydraulic Contamination Cleaning
Tyre Pressure Monitoring System (TPMS):
- TPMS Configuration
- TPMS Configuration Check
Convertible Roof Control Module (CRCM):
- Reset Roof Compensation
- Set Cobra position in car
1. VehicleMarket
- Australia
- Canada
- China
- Europe
- Gulf States
- Japan
- Quatar
- ROW
- Russia
- Switzerland
- USA
2. Driver Seat Option
- Not fitted
- Fixed seat, no adjustment
- Mechanical, 3 axis adjustment
- Electric height adjustment
- Electric, 3 axis adjustment
3. Front Brake Type
- Iron
- CCM
4. Tracker Available
- Not available
- Available
5. IRS Alarm Available
- Not available
- Available
6. Head Unit Type
-Not fitted
-Low line
-High line
7. Parking Sensors Fitted
- Not fitted
- Rear only
- Front and rear
8. Battery Type
- Lithium Ion, H8
- Lithium Ion, H6
- Lead Acid H8
- Lead Acid H6
- Default
Engine Control Unit (ECU):
- Un-pair immobilizer
- Clear Misfire adaptations
- Throttle adaption
- Secondary Air Diagnosis
- Cam Control Diagnosis
- Catalytic Converter Diagnosis
- Purge System Diagnosis
- DMTL Diagnostic Module Tank Leakage Test
Occupant Restraints Controller (ORC):
- Configure Occupant Classification System
Advance Driver Interface (ADI):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Transport mode
- Tone test
- Radio Configuration
- Set Configuration Defaults
- Read ADI Configuration Data
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Security Body Controller (SBC):
- Key Learn
- Key Test
- Un-pair immobilizer
- Alarm History
- LF Antenna Continuity Test
- Align Vehicle Configuration
- Read ECU Configuration
- Set ECU Configuration
Door Module Left (DML):
- Align Vehicle Configuration
- Window Calibration
Door Module Right (DMR):
- Align Vehicle Configuration
- Window Calibration
Seat Control Module Left (SCML):
- Seat Calibration
Seat Control Module Right (SCMR):
- Seat Calibration
Body Control Module (BCM):
- Align Vehicle Configuration
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Yaw Rate Sensor Calibration
- Carbon Ceramic Matrix (CCM) brake disc condition
- EPB Assembly Check
- EPB Caliper Usage Reset
- Brake Bleed Routine
Transmission Control Unit (TCU):
- Align Vehicle Configuration
- Air Brake Bleed
- Air Brake Calibration
- Transmission Replacement Reset
- Set ECU Configuration
- Transmission calibration
- Un-pair immobilizer
- Airbrake Manual Move
- Hydraulic Contamination Cleaning
- Extended Snapshot Data
- Turbo Waste gate control
Chassis Control Unit (CCU):
- Align Vehicle Configuration
- Suspension Pressure Sensor Calibration
- APMU Maintenance Mode
- Adaptive Damping Calibration
- Accelerometer Zero
Tyre Pressure Monitoring System (TPMS):
- TPMS Configuration
- TPMS Configuration Check
Convertible Roof Control Module (CRCM):
- Reset Roof Compensation
- Set Cobra position in car
Switch Control Unit Gateway (SCUG):
- Steering Column Calibration
- Steering Column Manual Move
Engine Control Unit (ECU):
- Un-pair immobilizer
- Clear Misfire adaptations
- Throttle adaption
- Secondary Air Diagnosis
- Cam Control Diagnosis
- Catalytic Converter Diagnosis
- Purge System Diagnosis
- DMTL Diagnostic Module Tank Leakage Test
Advance Driver Interface (ADI):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Transport mode
- Tone test
- Camera System Calibration
- Engine Coolant Temperature Gauge Calibration
- Engine Oil Level - Adapt Display Calibration
- Radio Configuration
- Set Configuration Defaults
- Read ADI Configuration Data
Security Body Controller (SBC):
- Un-pair immobilizer
- Align Vehicle Configuration
- Key Programming
- Key Test
- Read ECU Configuration
- Set ECU Configuration
- Alarm History
- LF Antenna Continuity Test
Body Control Module (BCM):
- Align Vehicle Configuration
- Sill Plate Lamp Activation
- Quiescent Current Configuration
Chassis Control Unit (CCU):
- Align Vehicle Configuration
- Suspension Calibration
— Accelerometer Zero
— Depressurise / Pressurise Suspension System
— Pressure Sensor Calibration
— Ride Height Calibration
- APMU Maintenance Mode
- AEF Service Functions
Door Module Left (DML):
- Align Vehicle Configuration
- Window Calibration
Door Module Right (DMR):
- Align Vehicle Configuration
- Window Calibration
Transmission Control Unit (TCU):
- Un-pair immobilizer
- Align Vehicle Configuration
- Hydraulic Contamination Cleaning
- Transmission Replacement Reset
- Extended Snapshot Data
- Turbo Waste gate control
- Transmission calibration
- Aileron Calibration
- Aileron Manual Move
- Set ECU Configuration
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Carbon Ceramic Matrix (CCM) brake disc condition
- Yaw Rate Sensor Calibration
- EPB Assembly Check
- EPB Caliper Usage Reset
- Brake Bleed Routine
Occupant Restraints Controller (ORC):
- Configure Occupant Classification System
Switch Control Unit Gateway (SCUG):
- Change Car Configuration
- Steering Column Manual Move
- Steering Column Calibration
Engine Control Unit (ECU):
- Un-pair immobilizer
- Clear Misfire adaptations
- Throttle adaption
- DMTL Diagnostic Module Tank Leakage Test
- Purge System Diagnosis
- Throttle adaption
- Secondary Air Diagnosis
- Catalytic Converter Diagnosis
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Transport mode
- Align Vehicle Configuration
- Menu Configuration
- Set configuration defaults
Advance Driver Interface (ADI):
- Transport Mode
- Valet Mode PIN Reset
- Align Vehicle Configuration
- Tone Test
- Radio Configuration
- Speaker System Test
- Engine Oil Level - Adapt Display Calibration
- Set Configuration Defaults
Security Body Controller (SBC):
- Un-pair immobilizer
- Align Vehicle Configuration
- Key Programming
- Key Test
- Read ECU Configuration
- Set ECU Configuration
- Alarm History
- LF Antenna Continuity Test
Door Module Left (DML):
- Align Vehicle Configuration
- Window Calibration
Door Module Right (DMR):
- Align Vehicle Configuration
- Window Calibration
Body Control Module (BCM):
- Align Vehicle Configuration
Transmission Control Unit (TCU):
- Un-pair immobilizer
- Align Vehicle Configuration
- Extended Snapshot Data
- Hydraulic Contamination Cleaning
- Set ECU Configuration
- Transmission Calibration
- Transmission Replacement Reset
- Turbo Waste gate control
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Yaw Rate Sensor Calibration
- Carbon Ceramic Matrix (CCM) brake disc condition
- EPB Assembly Check
- EPB Caliper Usage Reset
- Brake Bleed Routine
Convertible Roof Control Module (CRCM):
- Reset Roof Compensation
- Set Cobra position in car
Chassis Control Unit (CCU):
- Align Vehicle Configuration
- APMU Maintenance Mode
- Adaptive Damping Calibration
- Accelerometer Zero
Switch Control Unit Gateway (SCUG):
- Steering Column Calibration
- Steering Column Manual Move
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Engine Control Unit (ECU):
- Un-pair immobilizer
- Secondary Air Diagnosis
- Clear Misfire adaptations
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Transport mode
- Set configuration defaults
Switch Control Unit Gateway (SCUG):
- Steering Column Manual Move
- Steering Column Calibration
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Security Body Controller (SBC):
- Key Learn
- Key Test
- Un-pair immobilizer
- Alarm History
- LF Antenna Continuity Test
- Align Vehicle Configuration
- Read ECU Configuration
- Set ECU Configuration
Door Module Left (DML):
- Align Vehicle Configuration
- Window Calibration
Door Module Right (DMR):
- Align Vehicle Configuration
- Window Calibration
Seat Control Module Left (SCML):
- Seat Calibration
Seat Control Module Rigth (SCMR):
- Seat Calibration
Body Control Module (BCM):
- Align Vehicle Configuration
- Parking Sensor Diagnostic Activation
Head Unit (HU):
- Align Vehicle Configuration
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Yaw Rate Sensor Calibration
- Carbon Ceramic Matrix CCM brake disc condition
Powertrain and Chassis Control Module (PCCU):
- Align Vehicle Configuration
- Clear Gear Adaptations
- Un-pair immobilizer
- Dual Clutch Calibration
Convertible Roof Control Module (CRCM):
- Reset Roof Compensation
- Set Cobra position in car
1. VehicleMarket
- Australia
- Canada
- China
- Europe
- Gulf States
- Japan
- Quatar
- ROW
- Russia
- Switzerland
- USA
2. Driver Seat Option
- Not fitted
- Fixed seat, no adjustment
- Mechanical, 3 axis adjustment
- Electric height adjustment
- Electric, 3 axis adjustment
3. Front Brake Type
- Iron
- CCM
4. Tracker Available
- Not available
- Available
5. IRS Alarm Available
- Not available
- Available
6. Head Unit Type
-Not fitted
-Low line
-High line
7. Parking Sensors Fitted
- Not fitted
- Rear only
- Front and rear
Engine Control Unit (ECU):
- Un-pair immobilizer
- Clear Misfire adaptations
- Cam Control Diagnosis
- Catalytic Converter Diagnosis
- DMTL Diagnostic Module Tank Leakage Test
- Purge System Diagnosis
- Throttle adaption
- Secondary Air Diagnosis
Power Doors Control Unit (PDCU):
- PDCU Calibration
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Transport mode
- Align Vehicle Configuration
- Menu Configuration
- Set configuration defaults
Advance Driver Interface (ADI):
- Valet Mode PIN Reset
- Align Vehicle Configuration
- Tone Test
- Radio Configuration
- Speaker System Test
- Engine Oil Level - Adapt Display Calibration
- Set Configuration Defaults
- Transport Mode
Security Body Controller (SBC):
- Un-pair immobilizer
- Align Vehicle Configuration
- Key Programming
- Key Test
- Read ECU Configuration
- Set ECU Configuration
- Alarm History
- LF Antenna Continuity Test
Body Control Module (BCM):
- Align Vehicle Configuration
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Switch Control Unit Gateway (SCUG):
- Change Car Configuration
- Steering Column Calibration
- Steering Column Manual Move
Chassis Control Unit (CCU):
- Align Vehicle Configuration
- Accelerometer Zero
- Suspension Calibration
Occupant Restraints Controller (ORC):
- Configure Occupant Classification System
Camera Monitoring System Left (CMSL)
- CMSL Calibration
Camera Monitoring System Right (CMSR)
- CMSR Calibration
Tyre Pressure Monitoring System (TPMS):
- TPMS Configuration
- TPMS Configuration Check
Transmission Control Unit (TCU):
- Un-pair immobilizer
- Align Vehicle Configuration
- Hydraulic Contamination Cleaning
- Transmission Replacement Reset
- Extended Snapshot Data
- Turbo Waste gate control
- Transmission calibration
- Un-pair immobilizer
- Align Vehicle Configuration
- Hydraulic Contamination Cleaning
- Transmission Replacement Reset
- Extended Snapshot Data
- Turbo Waste gate control
- Transmission calibration
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Yaw Rate Sensor Calibration
- Carbon Ceramic Matrix (CCM) brake disc condition
- EPB Assembly Check
- EPB Caliper Usage Reset
- Brake Bleed Routine
Engine Control Unit (ECU):
- Un-pair immobilizer
- Secondary Air Diagnosis
- Clear Misfire adaptations
- Throttle adaption
- Cam Control Diagnosis
- Catalytic Converter Diagnosis
- Purge System Diagnosis
- DMTL Diagnostic Module Tank Leakage Test
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Transport mode
- Set configuration defaults
- Engine Coolant Temperature Gauge Calibration
- Menu Disable
Security Body Controller (SBC):
- Key Learn
- Key Test
- Un-pair immobilizer
- Alarm History
- LF Antenna Continuity Test
- Align Vehicle Configuration
- Read ECU Configuration
- Set ECU Configuration
Convertible Roof Control Module (CRCM):
- Reset Roof Compensation
- Set Cobra position in car
Seat Control Module Left (SCML):
- Seat Calibration
Seat Control Module Rigth (SCMR):
- Seat Calibration
Body Control Module (BCM):
- Align Vehicle Configuration
- Parking Sensor Diagnostic Activation
Powertrain and Chassis Control Module (PCCU):
- Align Vehicle Configuration
- Clear Gear Adaptations
- Un-pair immobilizer
- Dual Clutch Calibration
- Set ECU Configuration
- Nose Lift Maintenance
- Nose Lift Sensor Calibration
- Extended Snapshot Data
- Hydraulic Contamination Cleaning
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- Yaw Rate Sensor Calibration
- Carbon Ceramic Matrix CCM brake disc condition
- Brake Bleed Routine
Occupant Restraints Controller (ORC):
- Configure Occupant Classification System
Tyre Pressure Monitoring System (TPMS):
- TPMS Configuration
- TPMS Configuration Check
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Switch Control Unit Gateway (SCUG):
- Change Car Configuration
1. PDC Sensor Fitted
- Not fitted
- Fixed seat, no adjustment
- Mechanical, 3 axis adjustment
- Electric height adjustment
- Electric, 3 axis adjustment
2. Vehicle Market
- Australia
- Canada
- China
- Europe
- Gulf States
- Japan
- Quatar
- ROW
- Russia
- Switzerland
- USA
3. Seat Option
- Not fitted
- Fixed seat, no adjustment
- Mechanical, 3 axis adjustment
- Electric height adjustment
- Electric, 3 axis adjustment
4. Steering Column Adjustment
- Not fitted
- Mechanical Adjust
- Electric Reach and Rake
5. Garage Control Fitted Available
- Available
- Not available
6. Nose Lift Available
- Not Available
- Front Axle Only
- Four Corner Lift
7. Tracker Available
- Available
- Not available
8. Door Mirror Control
- Not fitted
- Electric only
- Electric with position
9. Parking Assistance Cameras
- None Fitted
- Rear View Camera
- Surround View Cameras
Engine Control Unit (ECU):
- Un-pair immobilizer
- Clear Misfire adaptations
- Throttle adaption
- Secondary Air Diagnosis
- Cam Control Diagnosis
- Catalytic Converter Diagnosis
- Purge System Diagnosis
- DMTL Diagnostic Module Tank Leakage Test
Occupant Restraints Controller (ORC):
- Configure Occupant Classification System
Advance Driver Interface (ADI):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Valet Mode Read and Reset
- Align Vehicle Configuration
- Transport mode
- Tone test
- Radio Configuration
- Set Configuration Defaults
- Read ADI Configuration Data
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Security Body Controller (SBC):
- Key Learn
- Key Test
- Un-pair immobilizer
- Alarm History
- LF Antenna Continuity Test
- Align Vehicle Configuration
- Read ECU Configuration
- Set ECU Configuration
Door Module Left (DML):
- Align Vehicle Configuration
- Window Calibration
Door Module Right (DMR):
- Align Vehicle Configuration
- Window Calibration
Seat Control Module Left (SCML):
- Seat Calibration
Seat Control Module Right (SCMR):
- Seat Calibration
Body Control Module (BCM):
- Align Vehicle Configuration
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Yaw Rate Sensor Calibration
- Carbon Ceramic Matrix (CCM) brake disc condition
- EPB Assembly Check
- EPB Caliper Usage Reset
- Brake Bleed Routine
Transmission Control Unit (TCU):
- Align Vehicle Configuration
- Air Brake Bleed
- Air Brake Calibration
- Transmission Replacement Reset
- Set ECU Configuration
- Transmission calibration
- Un-pair immobilizer
- Airbrake Manual Move
- Hydraulic Contamination Cleaning
- Extended Snapshot Data
- Turbo Waste gate control
Chassis Control Unit (CCU):
- Align Vehicle Configuration
- Suspension Pressure Sensor Calibration
- APMU Maintenance Mode
- Adaptive Damping Calibration
- Accelerometer Zero
Convertible Roof Control Module (CRCM):
- Reset Roof Compensation
- Set Cobra position in car
Switch Control Unit Gateway (SCUG):
- Steering Column Calibration
- Steering Column Manual Move
Engine Control Unit (ECU):
- Un-pair immobilizer
- Clear Misfire adaptations
- Throttle adaption
- Secondary Air Diagnosis
- Cam Control Diagnosis
- Catalytic Converter Diagnosis
- Purge System Diagnosis
- DMTL Diagnostic Module Tank Leakage Test
Instrument Cluster (IC):
- Service Interval Reset
- Read Last Service Data
- Enter Last Service Data
- Align Vehicle Configuration
- Set Configuration Defaults
Advance Driver Interface (ADI):
- Valet Mode PIN Reset
- Align Vehicle Configuration
- Tone Test
- Speaker System Test
- Set Configuration Defaults
- Transport Mode
Security Body Controller (SBC):
- Un-pair immobilizer
- Align Vehicle Configuration
- Key Programming
- Key Test
- Read ECU Configuration
- Set ECU Configuration
- Alarm History
- LF Antenna Continuity Test
Body Control Module (BCM):
- Align Vehicle Configuration
Chassis Control Unit (CCU):
- Align Vehicle Configuration
Door Module Left (DML):
- Align Vehicle Configuration
Door Module Right (DMR):
- Align Vehicle Configuration
Transmission Control Unit (TCU):
- Align Vehicle Configuration
- Air Brake Bleed
- Air Brake Calibration
- Transmission Replacement Reset
- Transmission calibration
- Un-pair immobilizer
- Hydraulic Contamination Cleaning
- Turbo Waste gate control
Steering Angle Sensor (SAS):
- Fine Tune Zero Position
Electronic Stability Program (ESP):
- Align Vehicle Configuration
- Dynamometer Mode
- EPB Enter Maintenance Mode
- EPB Exit Maintenance Mode
- Carbon Ceramic Matrix (CCM) brake disc condition
- Yaw Rate Sensor Calibration
- EPB Assembly Check
- EPB Caliper Usage Reset
- Brake Bleed Routine
The software works in several languages: English, French, Chinese, Italian
This software works with a SIMPLEDIAG interface. For further information, please email us or contact our dealers.
For all customers of this software, we offer professional technical support. To do so, fill in the form below. After sending the inquiry, our professional will contact you by email.
With this videos we want to show you the performance of the special features of our software that are made in real car:
McLaren 720s - Window Calibration - https://youtu.be/N1dEO2_YUg8
McLaren 720s - Seat Calibration - https://youtu.be/jHq8B5Ixt8o
McLaren 720s - Air Brake Calibration - https://youtu.be/SLdtTHmkQwA
McLaren 720s - Transmission Calibration - https://youtu.be/y3MKihbuPJ8
McLaren 12C - Airbrake calibration and bleed - https://youtu.be/X2l2_OeIJbI
McLaren 570s - Key test - https://youtu.be/lnH9Y-caK4I
McLaren 570s - Key programming - https://youtu.be/QmZKvch3Bs8
McLaren full diagnostic and repair after change battery - https://youtu.be/4aNThocmtVo
McLaren 720s - Steering Angle Sensor-Fine Tune Zero Position - https://youtu.be/gVw5XWkCtvQ
Mclaren 720s - 2019 - Seat calibration - https://youtu.be/1sept987llA
Mclaren 675LT - Service interval reset - https://youtu.be/olCjGo2T6eQ
Here you can see a video of our software made on a real car:
Here we will show you connecting with different modules and display Actual values
